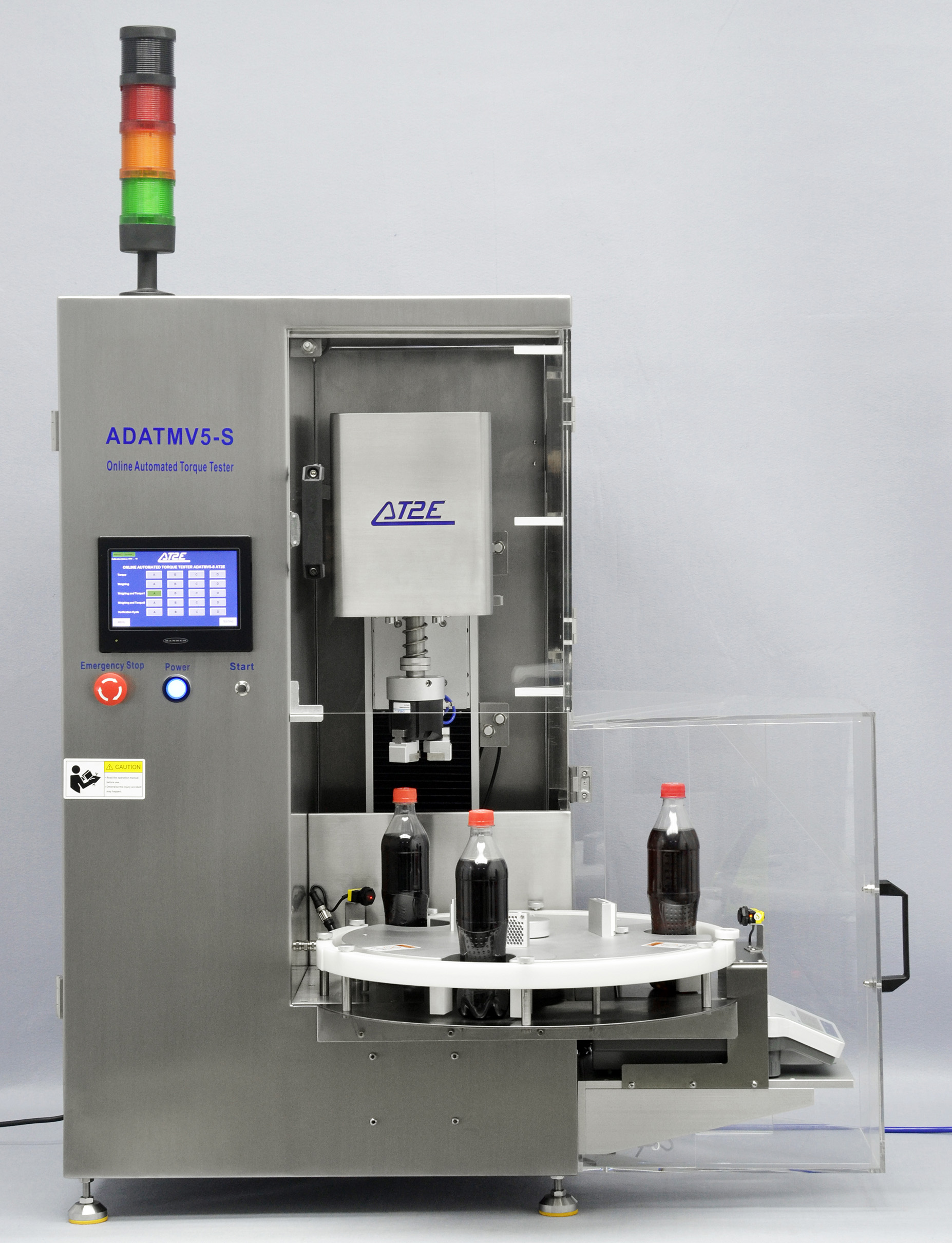

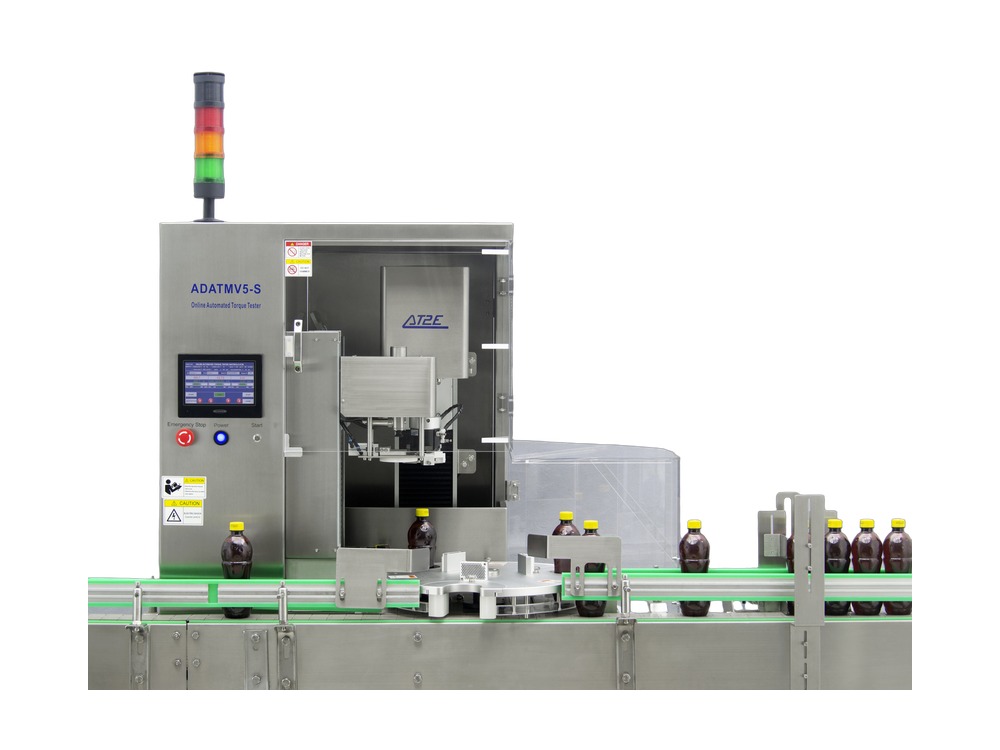

ADATMV5-S

Inline Automated Torque Tester

The ADATMV5-S is designed for precise torque measurement, providing automatic, real-time data collection. This system is compliant with FDA and CFR21-11 standards, ensuring accurate and reliable performance for regulated production environments.

The ADATMV5-S supports measurements in both directions (opening and closing) and allows for flexible cycle customisation. The touchscreen interface simplifies operation, and the system can store up to 1,000 measurements for comprehensive data management.

Key Features

• Touchscreen interface with customisable measurement cycles.
• Dual-direction torque measurement, 0.00 to 99.00 Kgf.cm.
• Five measuring cycles, including Torque Closing and Non-destructive Testing.
• Adjustable rotating angles and speeds for specific testing needs.
• Data storage for up to 30 products and 10 operators, with memory for up to 1,000 measurements.
• Dynamic display of statistics, time, date, product name, operator, batch and line numbers.
• RS232 and printer outputs for documentation and data sharing.
• Special pneumatic chuck with optional Automatic Start-Stop Detection System for flexibility and safety.
• Robust stainless steel frame built for industrial conditions.

Applications

Suitable for both laboratory use and production-line inspections, with adjustable rotating angles and speeds accommodating a wide range of testing requirements — particularly in FDA-regulated environments.

Talk to the Techotrix team to find out whether the ADATMV5-S is the right inline torque tester for your production line.
