FT-07 Laboratory Medium Fluter
Laboratory Medium Fluter (Concora)

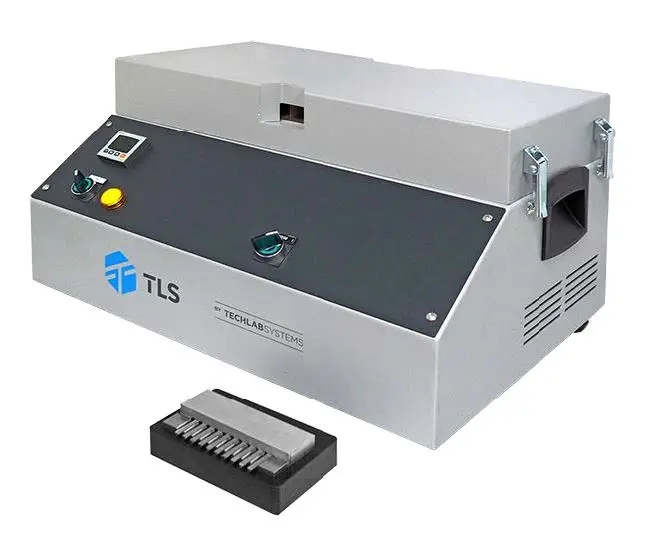

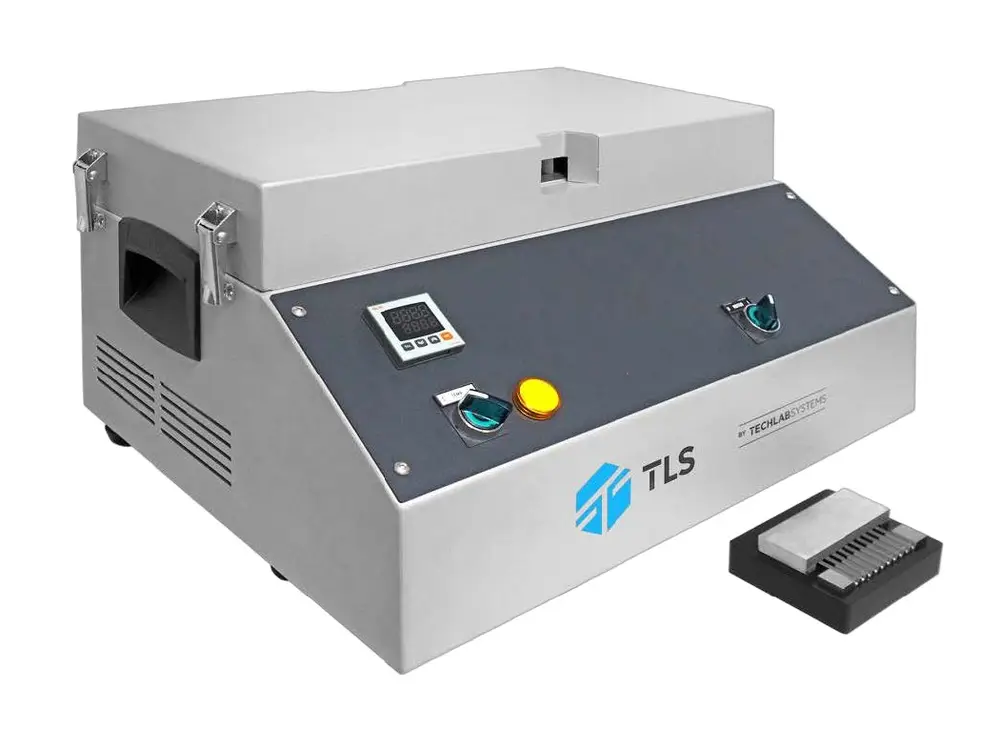

The FT-07 Laboratory Medium Fluter prepares corrugated medium paper specimens under pressure and temperature for standard CMT and CCT tests on a standardised crush tester. Rolls for standard wave A with precise temperature control deliver consistent, reproducible fluted samples.
Laboratory Medium Fluter
Equipment to prepare corrugated medium paper specimens under pressure and temperature to perform standard CMT (Concora Medium Test) and CCT (Corrugated Crush Test) tests on a standardised crush tester.
Key Features
- Precise temperature control.

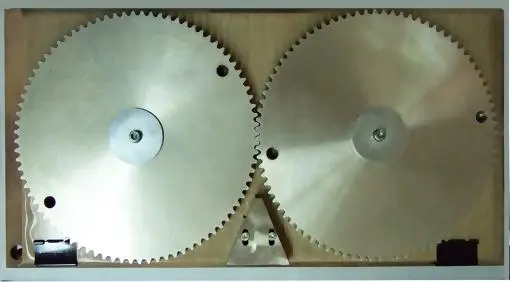

- Rolls for standard wave A.
- Distance between teeth: 8.5 ± 0.05mm.
- Tooth height: 4.75 ± 0.05mm.
- Rotation speed of toothed pulleys: 4.5 ± 1rpm.
- Pressure between rollers: 100 ± 10N.
- Adjustable pressure range: 0-210N.
- Includes sample preparation device for CMT assay.
Applications
Essential preparation step for CMT and CCT compression strength testing of packaging paper (liner and fluting), corrugated board, board boxes and board packaging. Meets DIN 53143, ISO 7263, PAPTAC D29, SCAN P27, TAPPI T809 and UNE 7263:2009.
Talk to the Techotrix team to find out whether the FT-07 is the right medium fluter for your corrugated board sample preparation.
| Standards | DIN 53143, ISO 7263, PAPTAC D29, SCAN P27, TAPPI T809, UNE 7263:2009 |
| Flute Type | Standard wave A |
| Tooth Distance | 8.5 ± 0.05mm |
| Tooth Height | 4.75 ± 0.05mm |
| Roller Speed | 4.5 ± 1rpm |
| Roller Pressure | 100 ± 10N (adjustable 0-210N) |
Includes sample preparation device for CMT assay as standard.
Contact the Techotrix team to confirm the right FT-07 configuration for your corrugated board sample preparation requirements.
