DSMM-1

Double Seam Measuring Minidesk for Cans

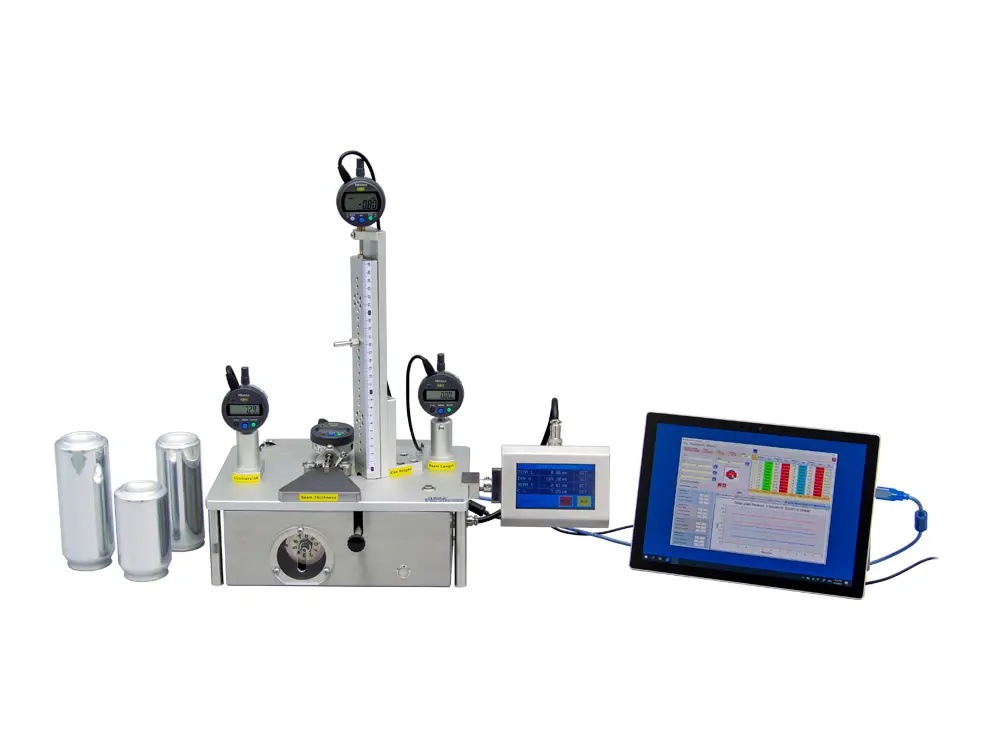

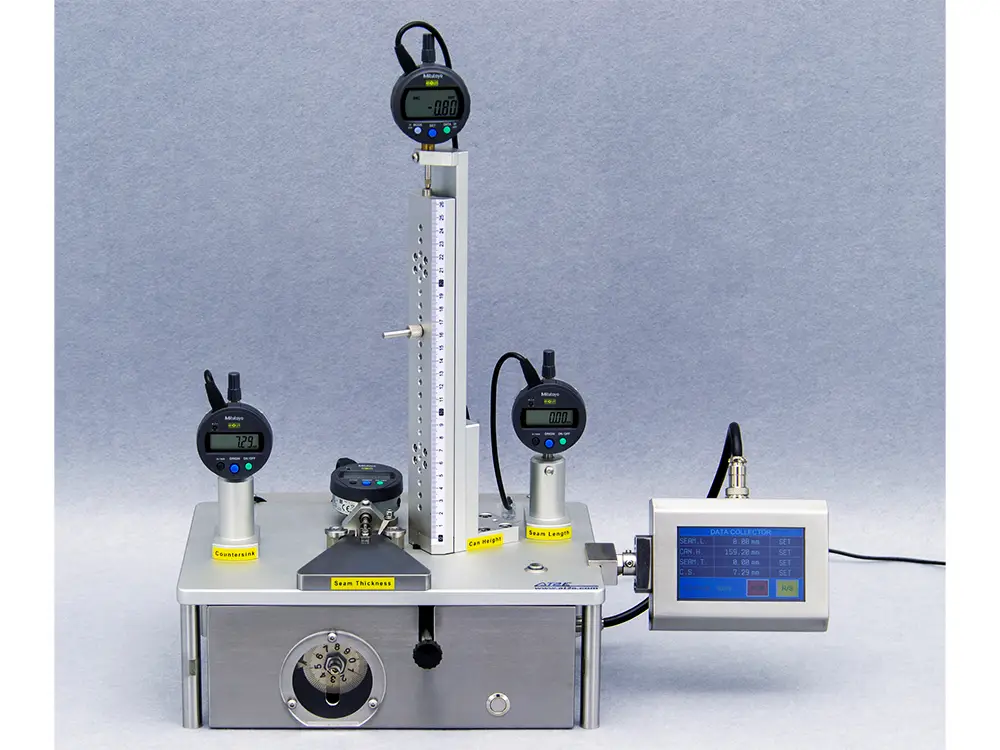

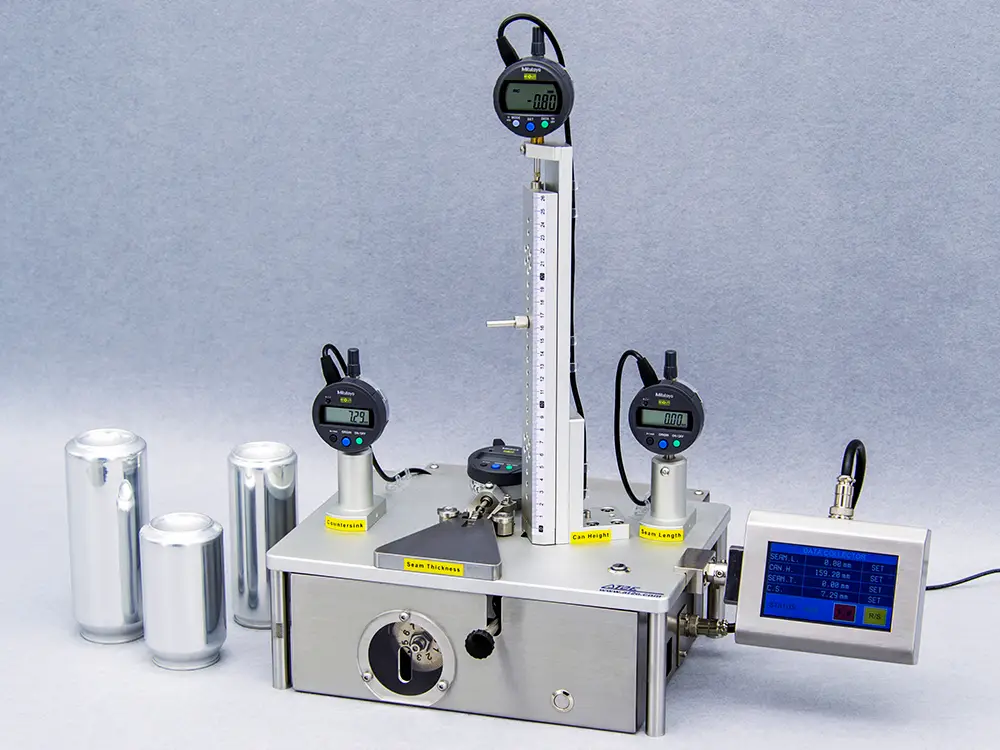

The AT2E DSMM-1 Double Seam Measuring Minidesk is designed to measure seam thickness, seam length (seam height), countersink and can height all in one time and one second. The operator simply needs to position the can on the desk, and all measurements are obtained instantly — providing a fast, repeatable and accurate method for the operator.

The DSMM-1 works for both beverage cans and food cans, making it a flexible solution across a range of canned products.

Key Features

• Measures four seam dimensions simultaneously in under one second.
• High accuracy with a measurement precision of 0.02mm.
• Simple operation — position the can, get instant results.
• Works for both beverage and food cans.

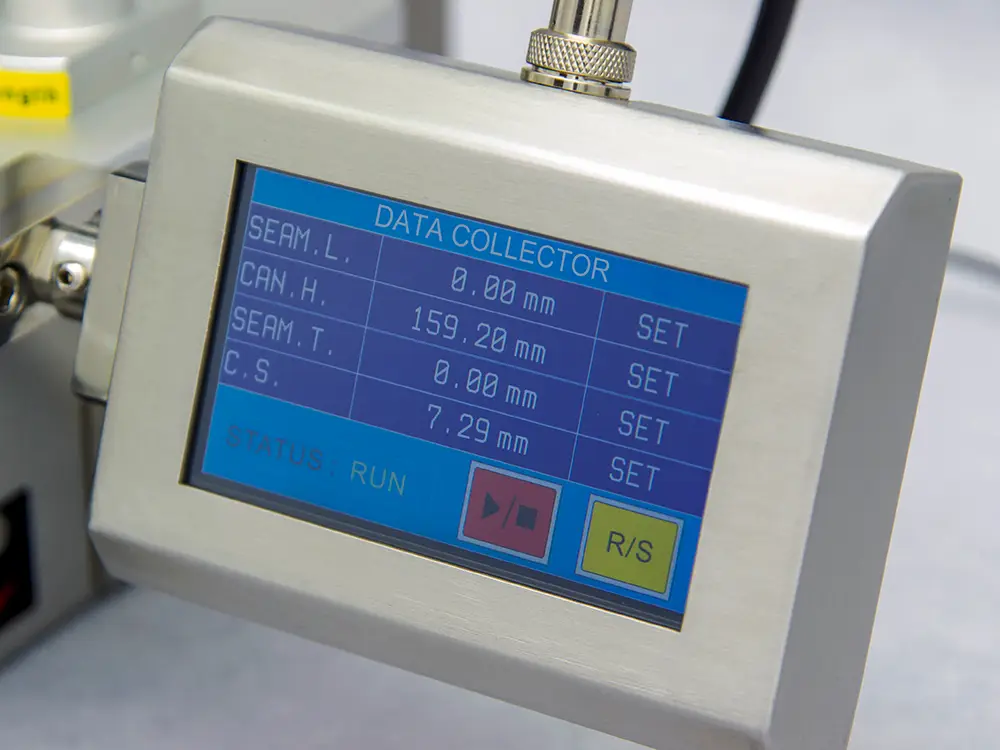

• Optional data transporting box sends results to AT2E’s special software or AT2E SeamCheck software.

Applications

Essential for maintaining quality in can manufacturing, providing a precise, quick and easy way to verify double seam integrity on the production line or in the QA lab.

Talk to the Techotrix team to find out whether the DSMM-1 is the right seam measuring solution for your line.
