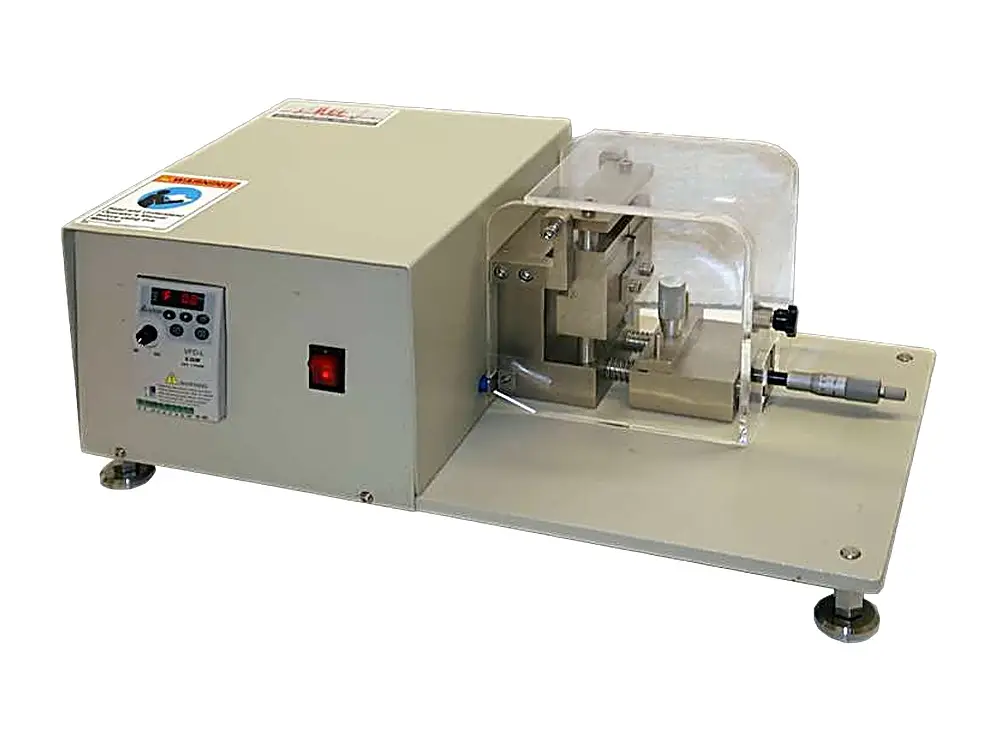

MNC-10

Charpy-Izod Notching Machine

Equipment designed to make standardised notches on samples, which are subsequently subjected to mono-axial impact resistance tests according to the Charpy and Izod procedures. The notch concentrates stress, minimises plastic deformation, and directs fracture to the part of the specimen behind the notch, reducing dispersion in energy-at-break results.

The cutting tool has a vertical cyclical movement and is equipped with a transparent methacrylate safety screen to protect operators.

Key Features

• Blades at a fixed angle of 45° ± 1°.
• Type A blade: 0.25mm ± 0.01mm radius (ASTM D256).
• Type B blade: 1mm ± 0.05mm radius (ISO 179/180), Type C: 0.1mm ± 0.02mm radius available.

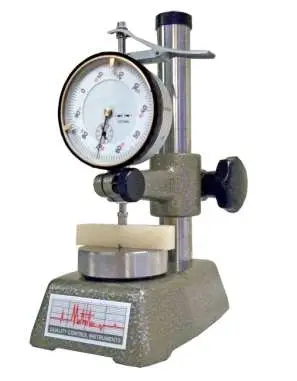

• Analogue micrometer, 0-25mm depth, 0.01mm resolution.
• Variable speed: 0-225rpm to suit a wide range of materials.

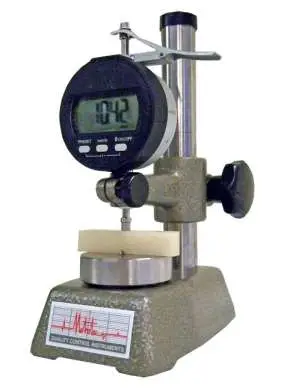

• Optional digital micrometer (MIP-20D) available.

Applications

Essential for plastics testing labs preparing Charpy and Izod impact specimens for plastic urban furniture, small household appliances, automotive parts and aeronautical parts.

Complies with: ASTM D256/A, ASTM D256/B, ASTM D4812, ASTM D6110, DIN 179-1, DIN 180, EN 179-1, EN 180, ISO 179-1, ISO 180, UNE 179-1, UNE 180.

Talk to the Techotrix team to find out whether the MNC-10 is the right notching machine for your impact testing lab.
