DYNA-4000

Dynamometer (Top-Load Tester)

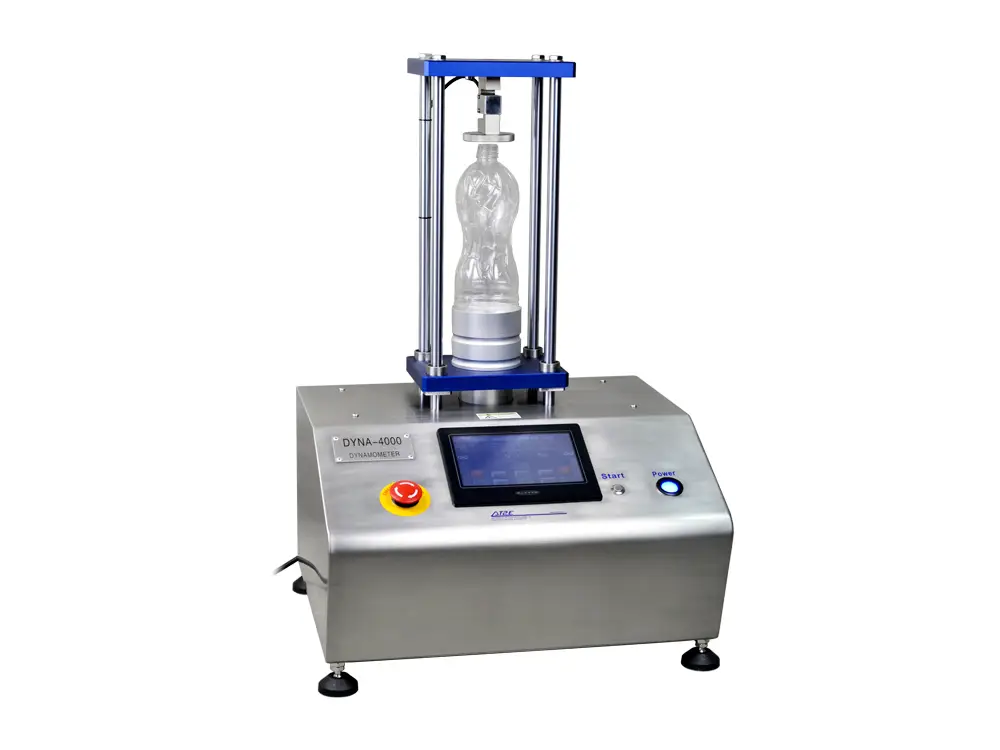

The DYNA-4000 Dynamometer delivers accurate top-load resistance testing for PET bottles and cans to a vertical force, with customisable measurement ranges from 0-1000N up to 0-10000N. Its touchscreen LCD with real-time statistics and PLC integration ensures easy, flexible operation.

Download Brochure
Inquire Now

Dynamometer (Top-Load Tester)

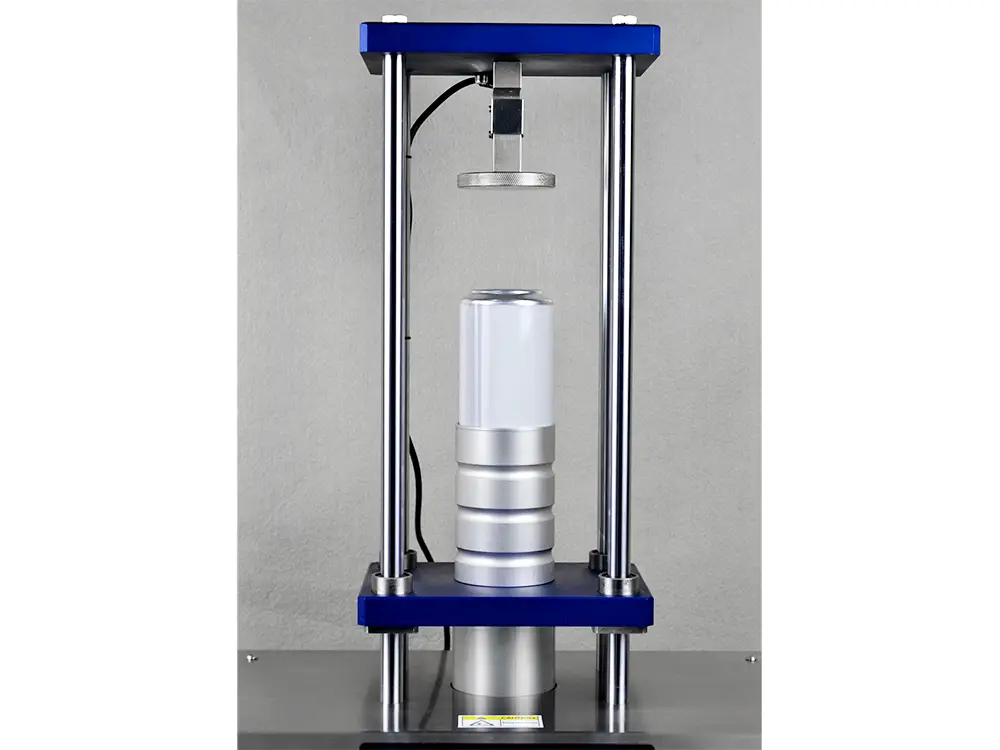

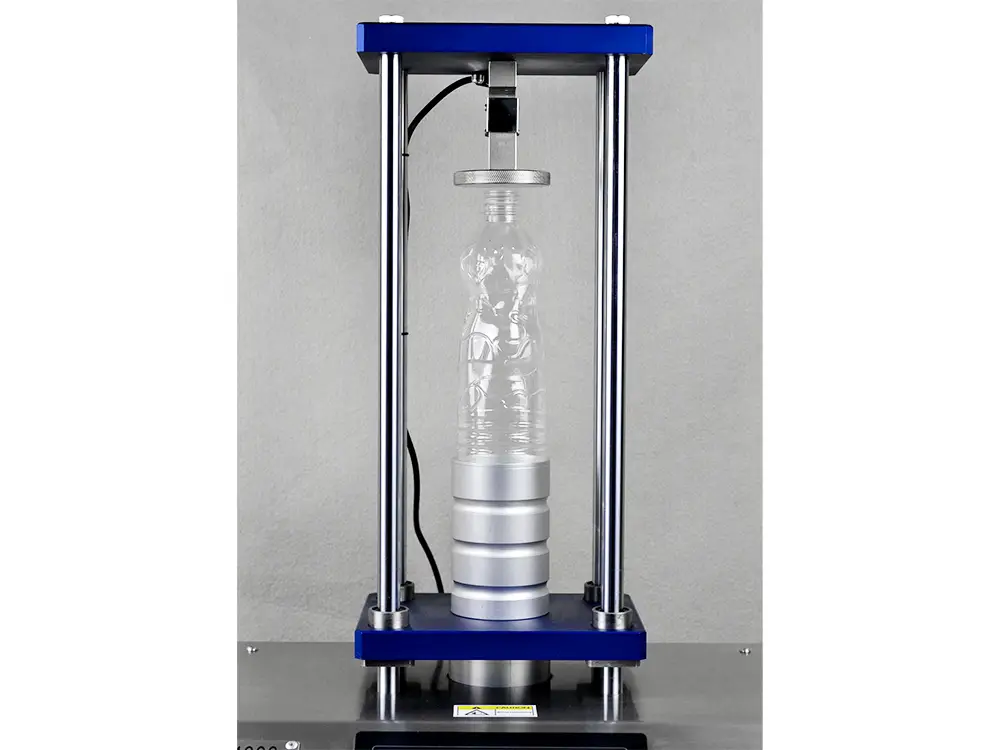

The DYNA-4000 is an instrument for testing the resistance of PET bottles and cans to a vertical force. Designed for easy use and maintenance, the DYNA-4000 complies with international standards, performing top-load resistance tests measuring up to predefined pressure points or until the sample fails.

Key Features

  • Measurement ranges from 0-1000N to 0-10000N.
  • Resolution: 1N (up to 5000N range); 10N (10000N range).

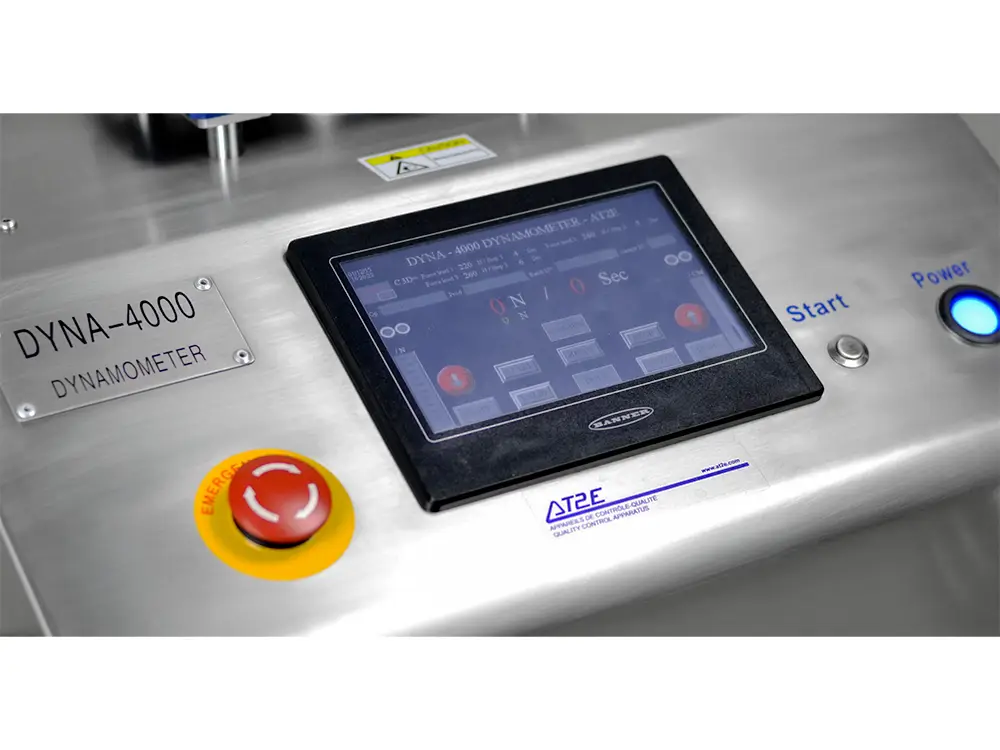

  • Touchscreen LCD with dynamic real-time statistics display.
  • User-defined test cycles (up to 4 steps of forces and pause).
  • PLC integration and RS232C output for seamless data transfer.
  • Constructed from durable stainless steel and aluminium.

Applications

Essential for PET bottle and can manufacturers needing to verify top-load resistance meets safety and durability standards for stacking and transport.

Talk to the Techotrix team to find out whether the DYNA-4000 is the right dynamometer for your packaging quality control.
