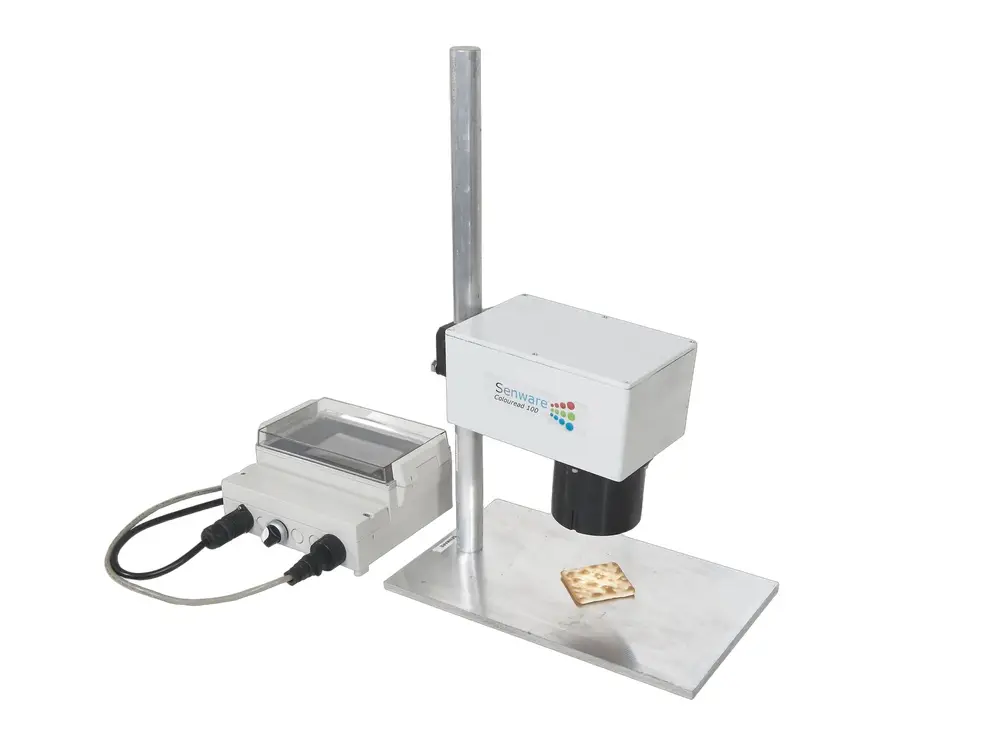

CR100FF

On-Line Process Color Meter

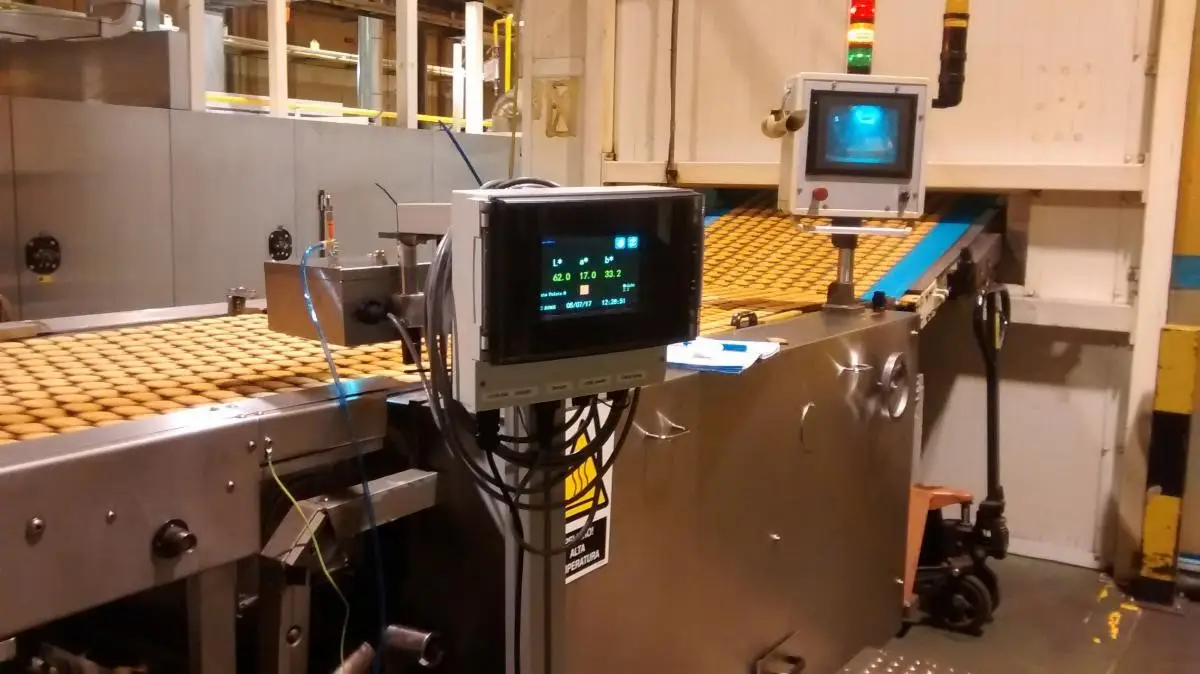

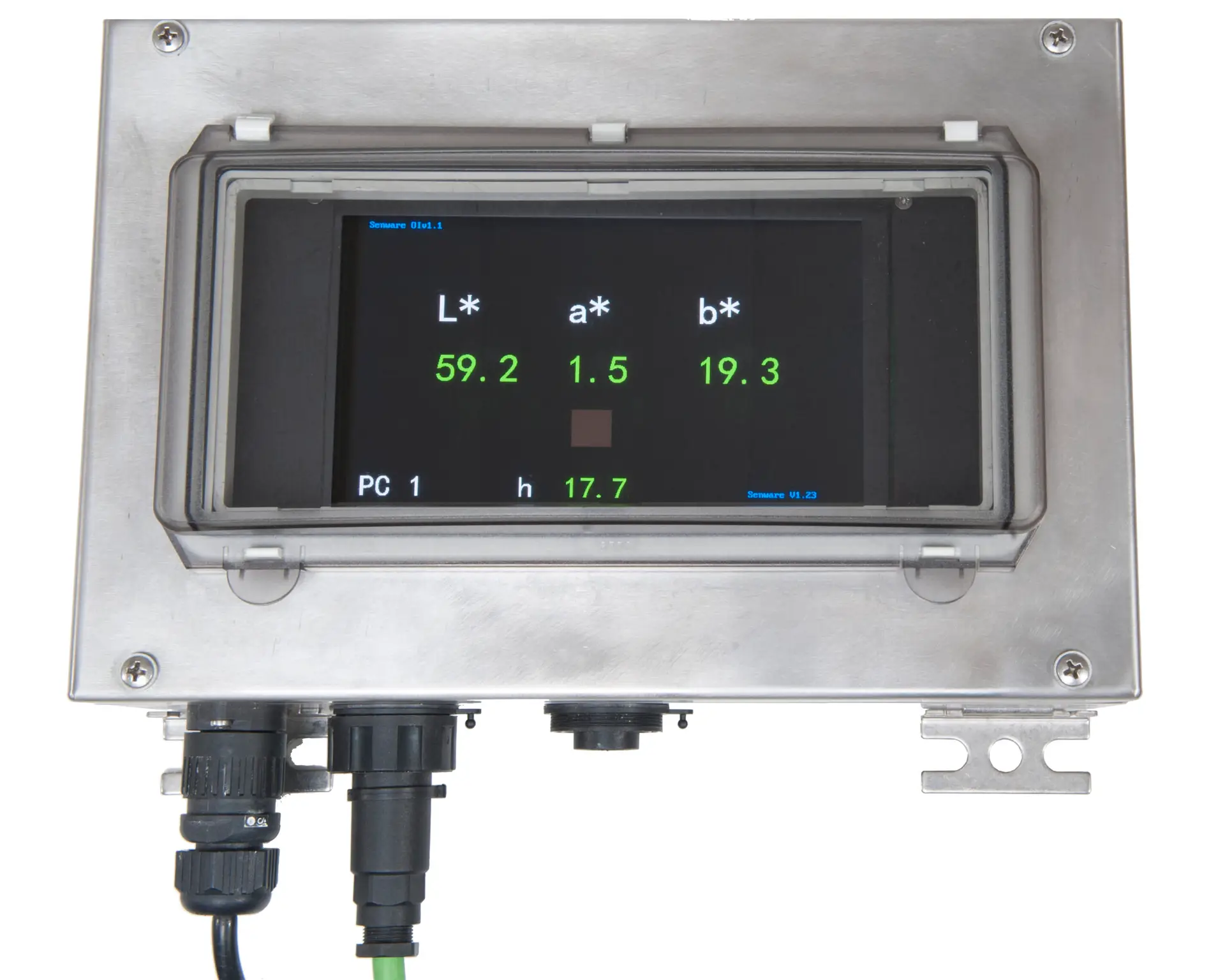

The CR100FF monitors the colour of process variables directly above the product, analysing the returned white light to determine L*a*b* values (or other colour components). The optional operator interface displays this colour on a graphical display, with outputs available to plant control via analog or field bus options.

Built to last, the CR100FF is very simple to install and use, and virtually maintenance-free for years of reliable results. A variety of colour space outputs are available, typically viewed in the widely accepted CIE L*a*b* scale, with each colour constituent available as a user-scalable analogue/digital/bus output.

Key Features

• Repeatable and highly accurate.
• Unaffected by ambient conditions.
• Data logging stores up to 5000 datapoints, downloadable via USB flash drive.
• Simple to operate and integrate into factory control systems.

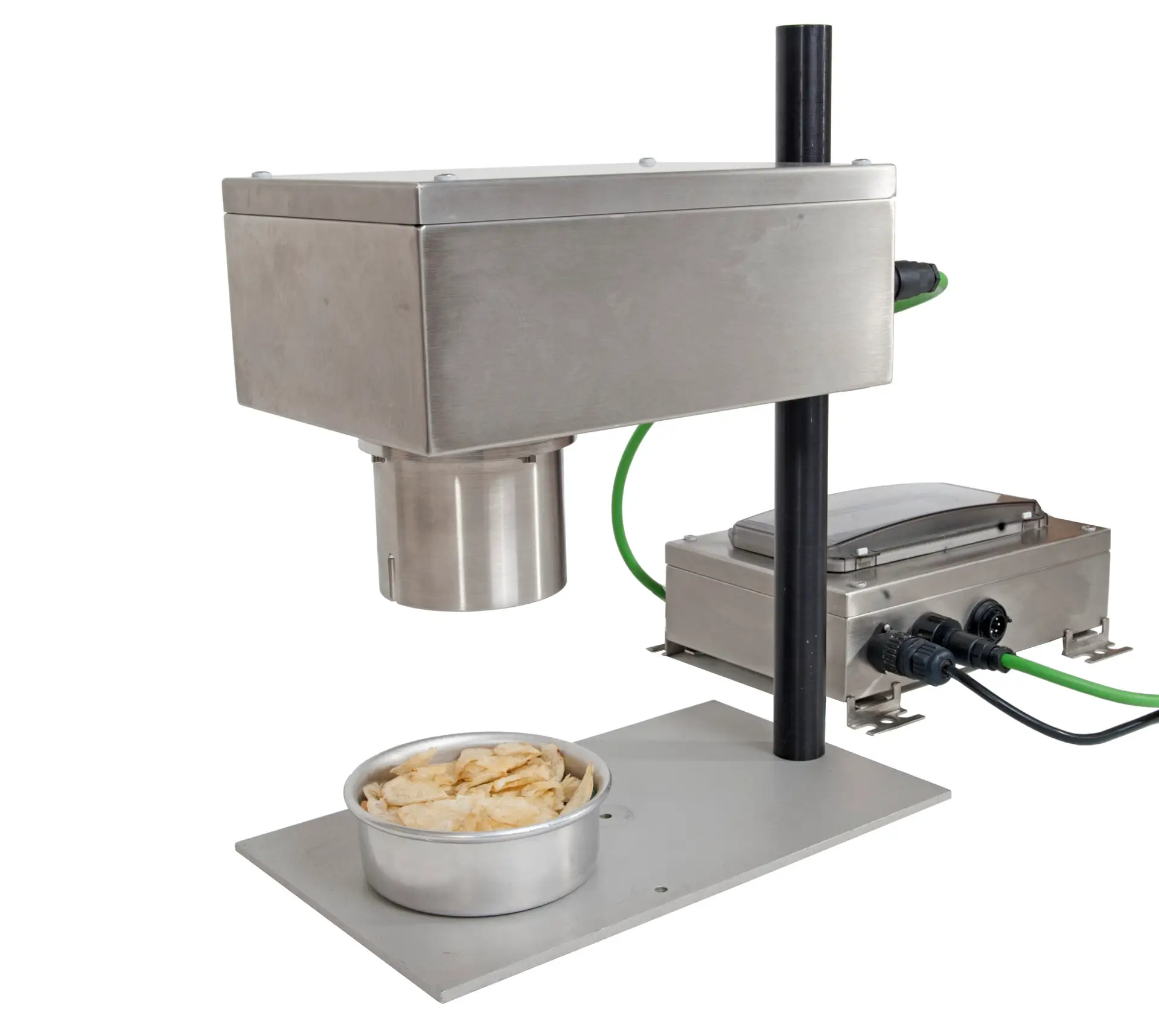

• Tough cast aluminium sensor enclosure, with stainless steel option.
• Beam measurement size adjustable from 10mm to 110mm to match application requirements.
• Solid state components, no moving parts.

Applications

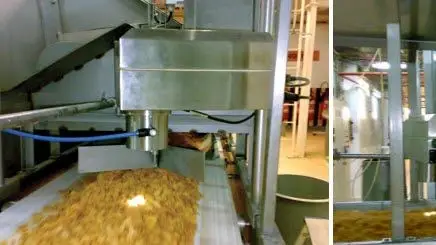

Monitors 100% of production in real time for potato chips, corn snacks, tortillas, sugar, peanuts/nuts, breakfast cereals, pasta, biscuits, bread/bread rolls, coffee, crackers/wafers, cake, flour, fruit, meat, sauces and other food ingredients. Widely used across chemical, food and beverage, brewing and distillery, pharmaceutical, aggregates, sugar, and paper and converting industries.

Talk to the Techotrix team to find out whether the CR100FF is the right on-line colorimeter for your production line.
