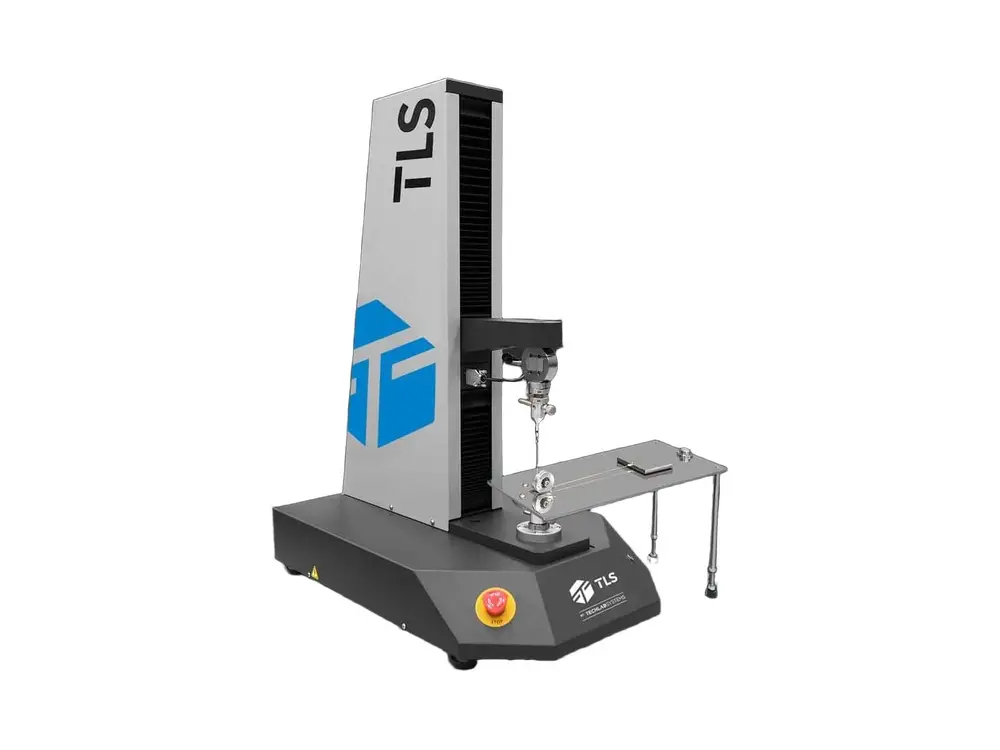

FT-10

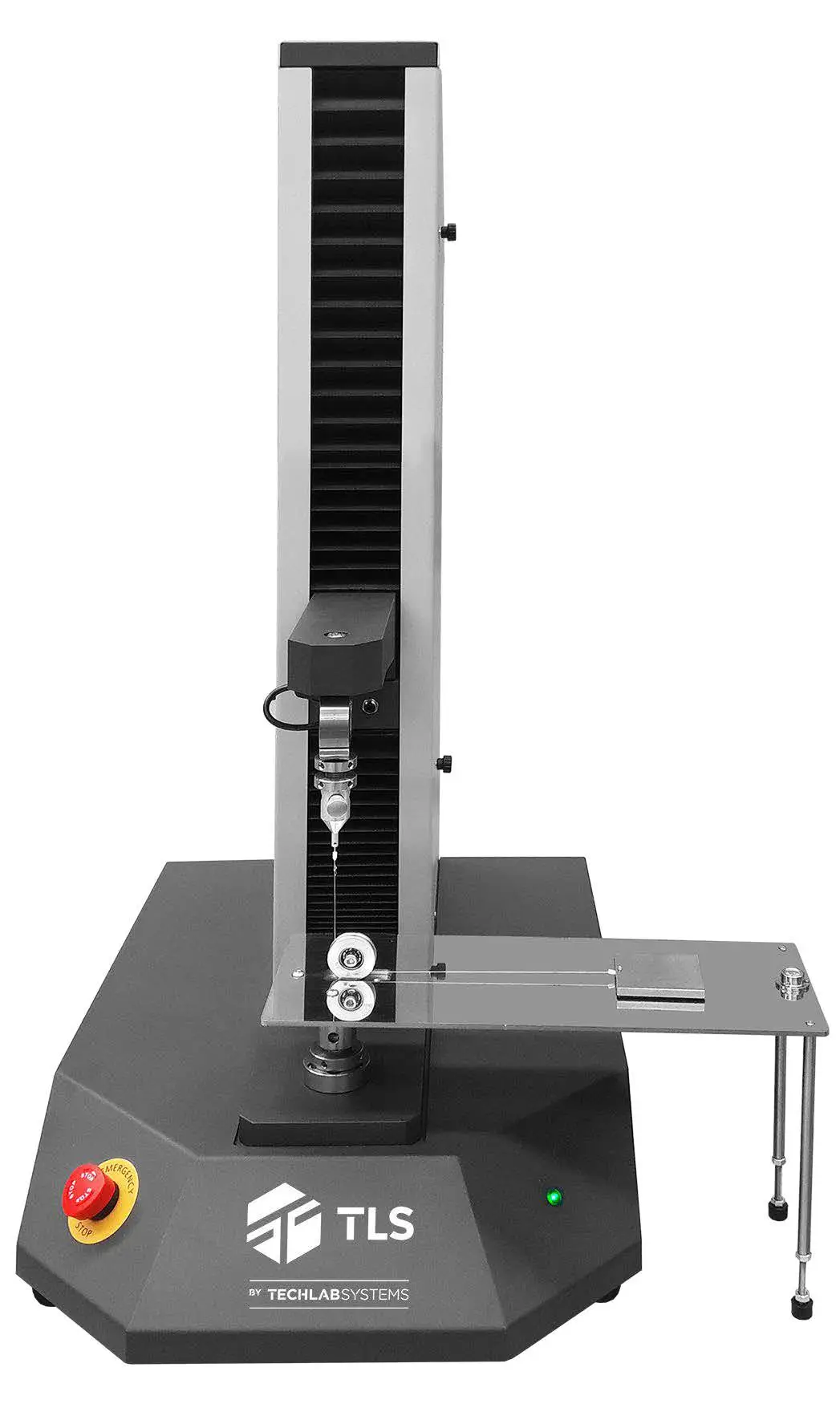

FT-10 - Image 2

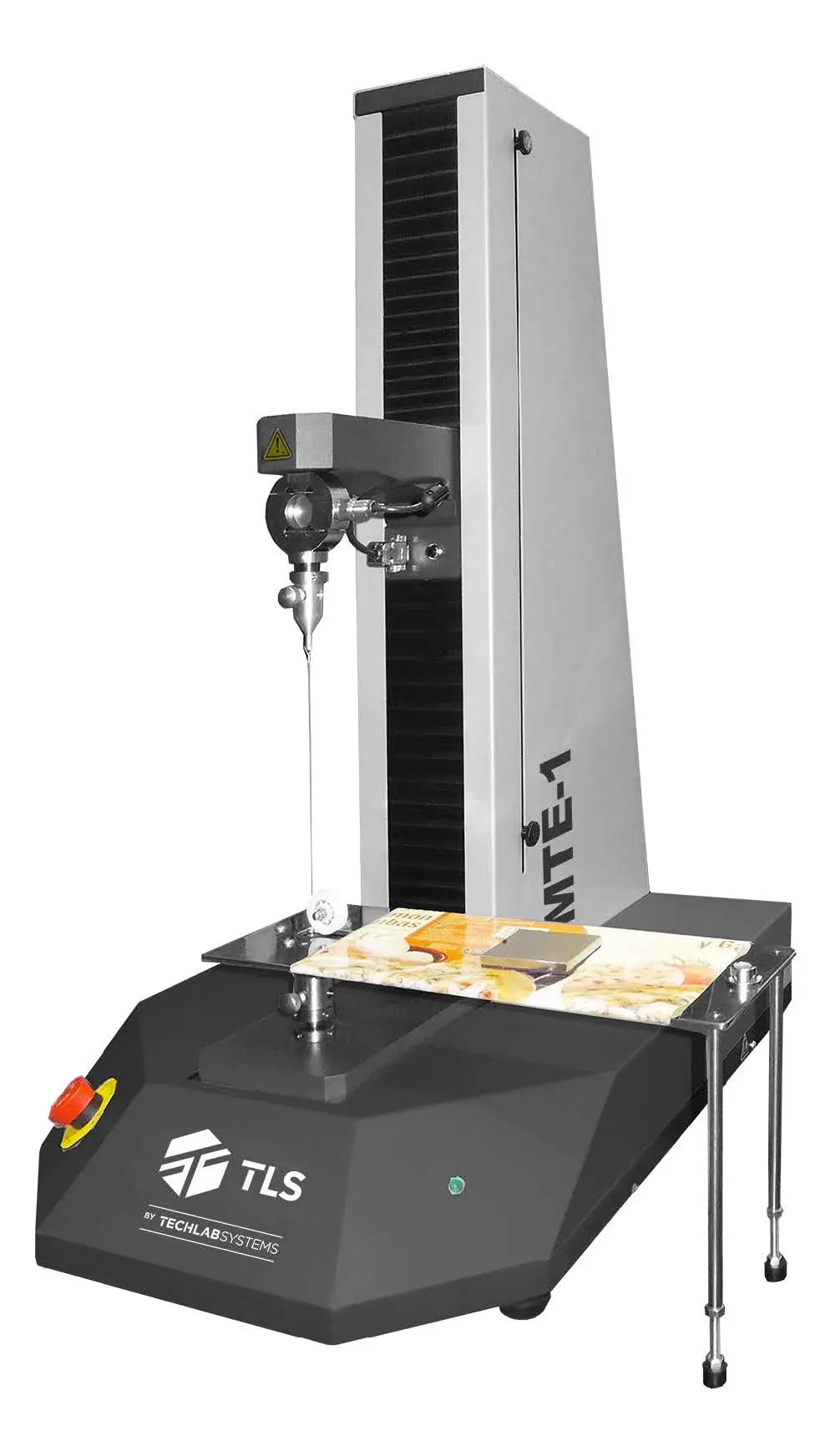

FT-10 - Image 3

FT-10

Friction Tester

The FT-10 Friction Tester provides fast, accurate determination of static and dynamic friction coefficients for paper, cardboard and plastic films, covering up to 1kN with a 10N load cell included. Its RS-232/USB output and dedicated software support ASTM D1894, TAPPI T816 and TAPPI T549.

Download Brochure
Inquire Now

Friction Tester

Test equipment to measure the static and kinetic friction of paper, carton, plastic film or similar material. For fast and accurate determination of static and dynamic friction coefficients, sled dimensions can be chosen per ASTM D1894 Method B (63.5 x 63.5mm, 200g) or TAPPI T816 (63.5 x 63.5mm, 1,360g).

Key Features

  • Maximum force capacity: 1kN.
  • Load cell included in standard supply: 10N.
  • Force measurement accuracy: ≤ ±0.5% (Class 0.5).
  • Selectable force units: kg, N or lb.
  • Standard test speed range: 0.5–1000mm/min.
  • Mobile crossbar travel: 500mm.
  • RS-232 output interface with USB converter.
  • Testing software with basic statistics for friction tests.
  • Compatible with the T-LAB Laboratory Management System.

Applications

Suitable for folding carton, corrugated board, plastic film and flexible packaging. Meets ASTM D1894, ASTM D2534, ASTM D4521, BS 2782 pt8, DIN 8295, ISO 8295, ISO 15359 and TAPPI T549.

Talk to the Techotrix team to find out whether the FT-10 is the right friction tester for your material testing needs.
