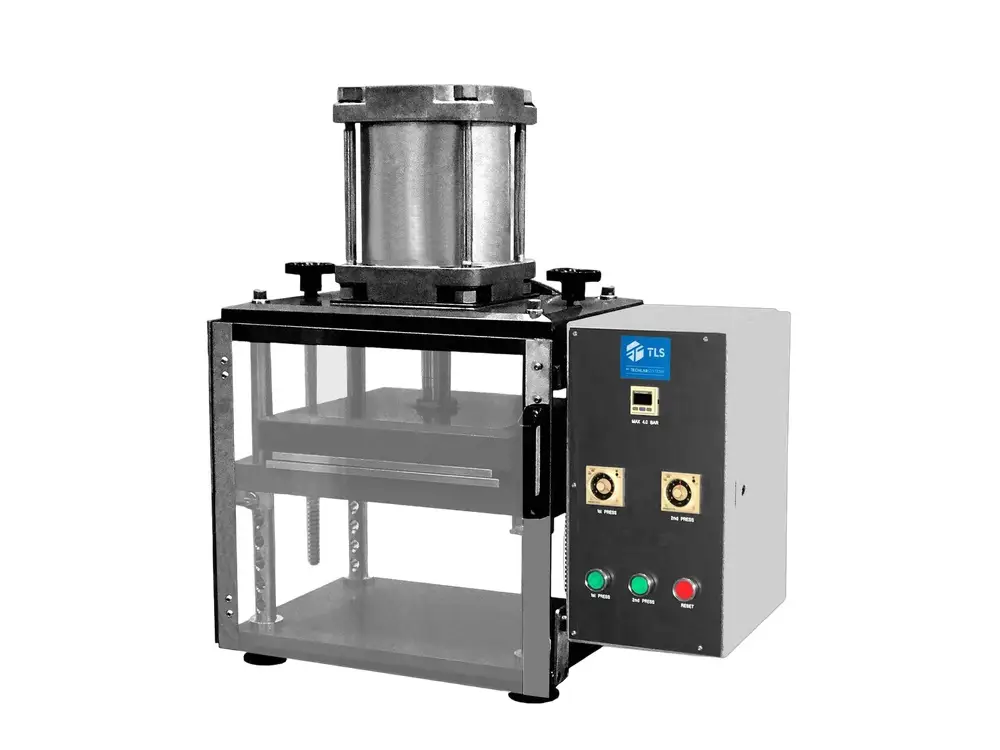

NPT-10

Pneumatic “TAPPI” Wet Sheet Press

Equipment for pressing wet sheets of paper and wet paper pulp, obtained in the sheet former, under standardised conditions. A blotting paper is first placed on the bottom plate of the press, followed by the wet paper sheet adhered to the blotter, a drying plate (polished side down), and further blotting paper for multi-sheet pressing.

The stack of sheets is placed in the press, which is operated until reaching an effective pressure of 400 ± 10 kPa in 20 ± 10 seconds, maintained for the required standard duration.

Key Features

• Made of corrosion-resistant material.
• Maximum opening: 200mm.
• Travel: 100mm.
• Maximum pressure force: 12.5kN.
• Plate dimensions: 350 x 350mm.
• Adjustable pressure time via two timers.
• Drainage channel incorporated to evacuate water.
• Security door with electrical interlock.
• CE marked.

Applications

Essential step in laboratory sheet preparation for pulp and paper testing, pressing wet sheets ahead of drying under standard, repeatable conditions. Meets TAPPI T205, ISO 5269/1, SCAN C26/M5 and PAPTAC C4.

Talk to the Techotrix team to find out whether the NPT-10 is the right wet sheet press for your laboratory.
