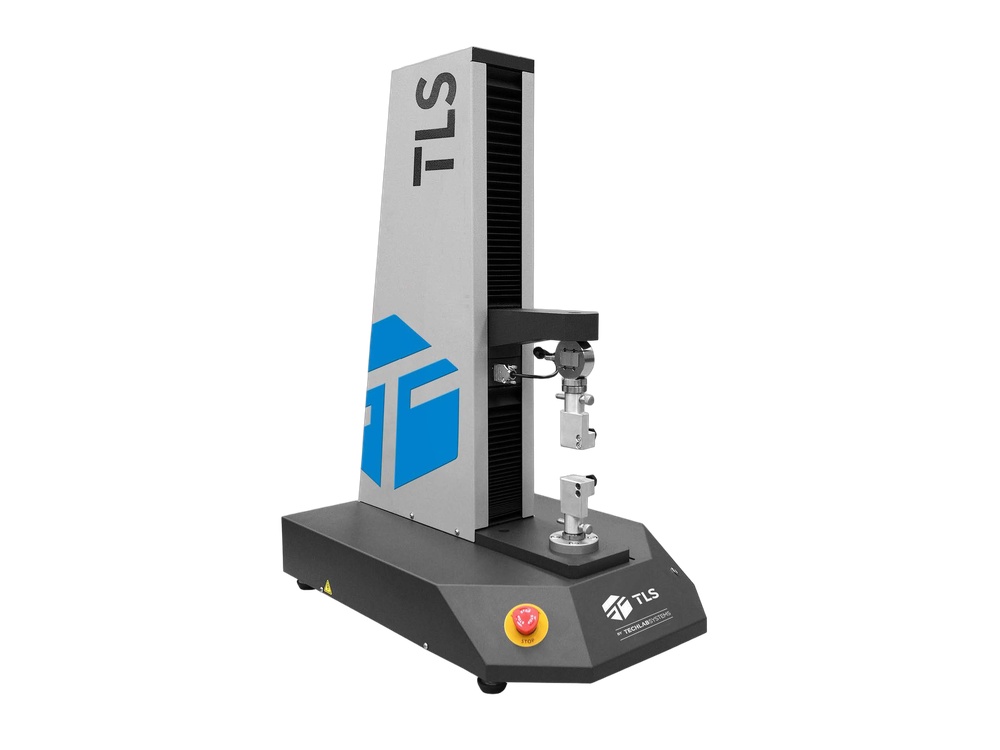

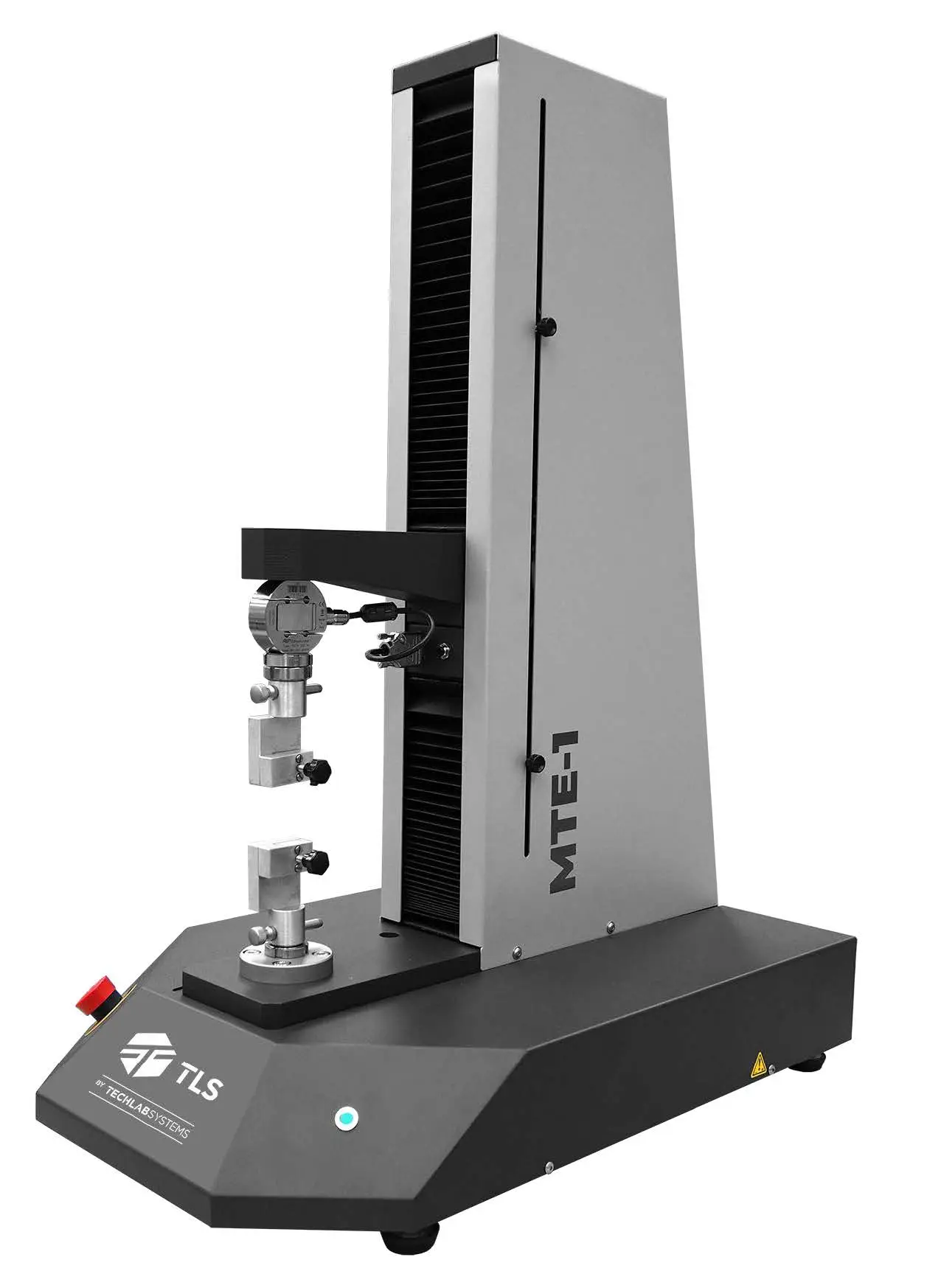

MTE-1

Universal Testing Machine (1kN)

For determination of tensile strength and elongation of paper (kraft, liner, tissue and similar). The software allows obtaining the value of T.E.A., the Tensile Energy Absorption of the paper, defined as the area under the force-elongation (energy) curve.

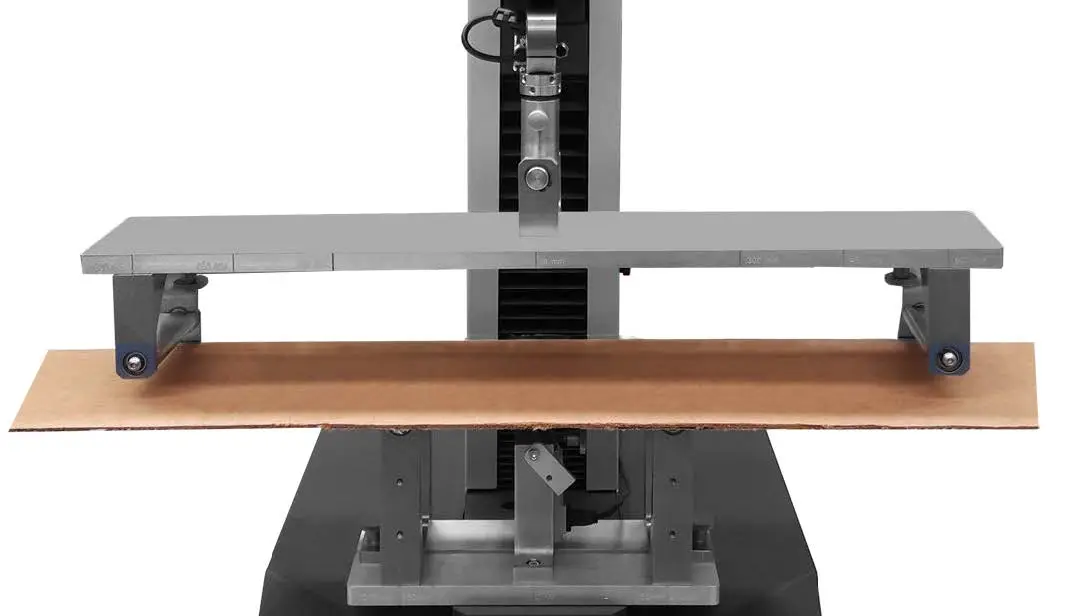

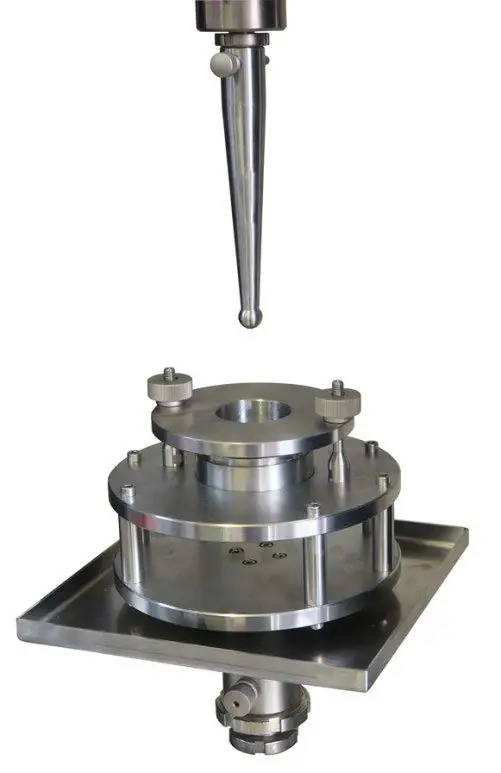

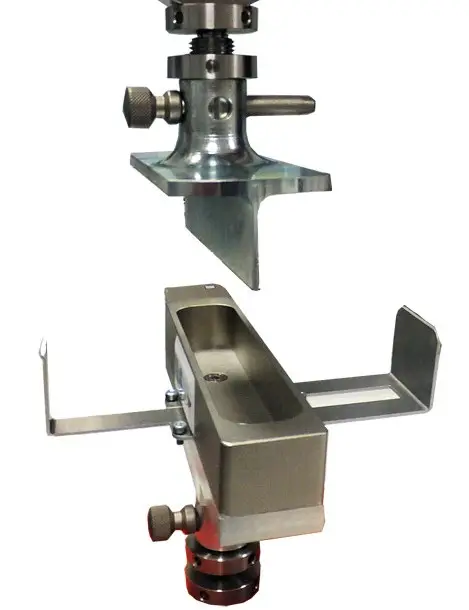

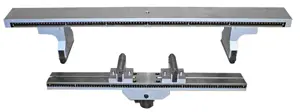

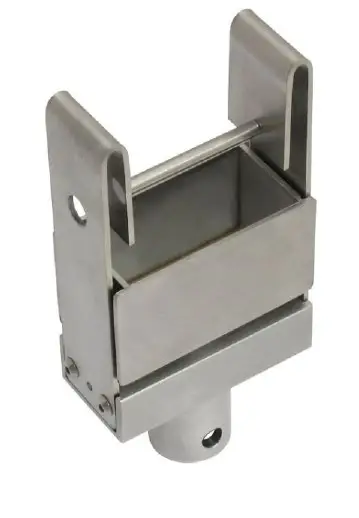

Electromechanical one-column material testing machine designed to perform tensile, compression, bending, shearing and peeling tests on very light materials up to 1kN capacity.

Key Features

• Maximum force capacity: 1kN.
• Available load cells (not included as standard): 1kN, 500N, 250N, 100N, 50N, 10N.
• Force measurement accuracy: ≤ ±0.5% (Class 0.5).
• Selectable force units: kg, N or lb.
• Standard test speed range: 0.5–1000mm/min.
• Mobile crossbar travel: 500mm.
• RS-232 output interface with USB converter.
• Testing software with basic statistics, including T.E.A. calculation.
• Compatible with the T-LAB Laboratory Management System.

Applications

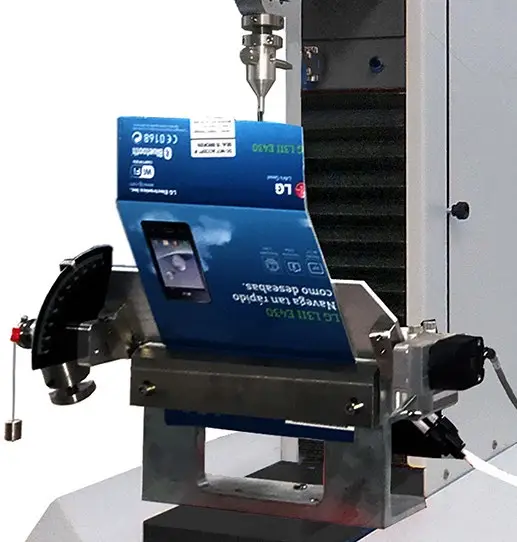

Suitable for folding carton, corrugated board, plastic film and flexible packaging. Meets AFERA 4001 P7/4013 P1/4015 T4, ASTM D828/D1894, BS 4415/2, DIN 53112/53121, FINAT FTM-1/FTM-2/FTM-3, ISO 1924/2/3781/5628/12625-9/12625-11/15754 and PAPTAC D34.

Talk to the Techotrix team to find out whether the MTE-1 is the right tensile tester for your light-material testing needs.
