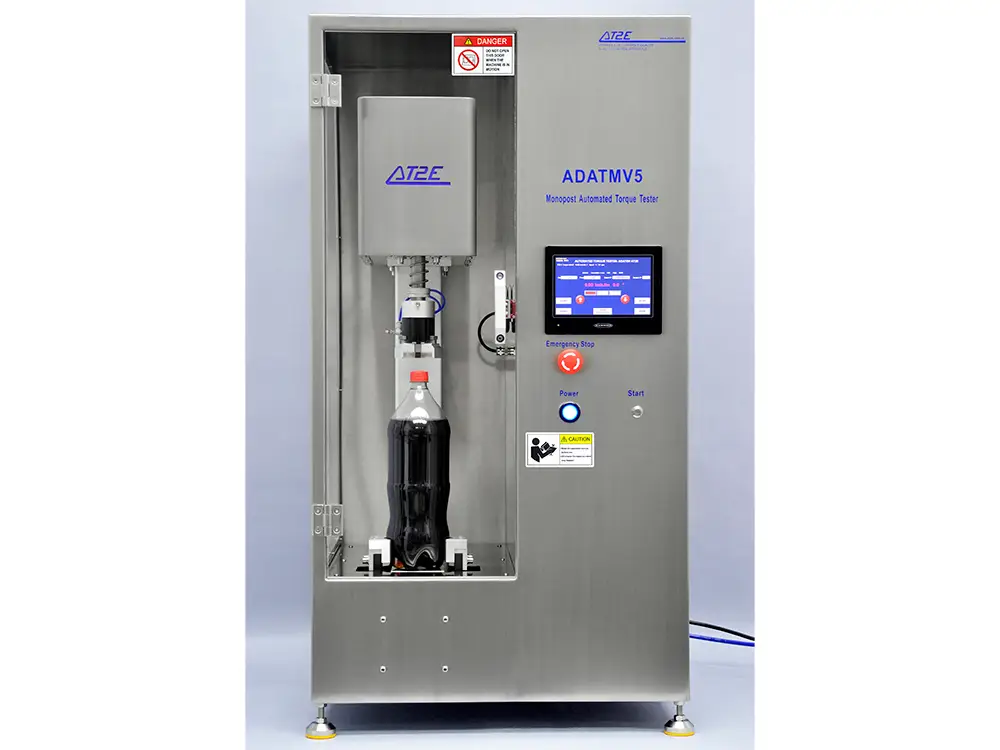

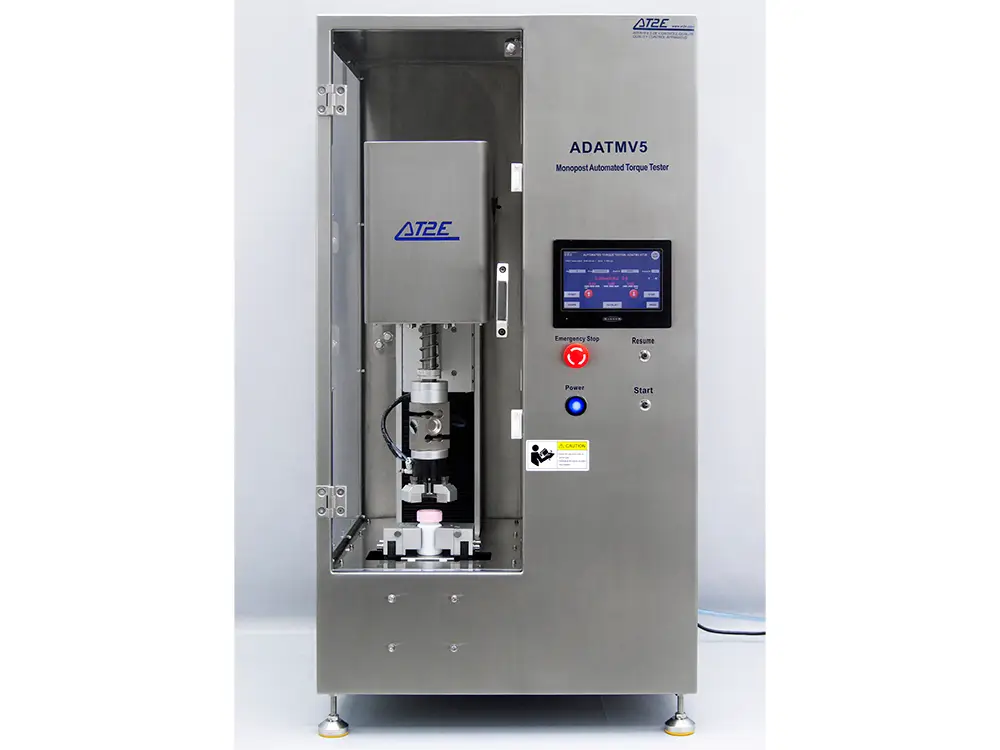

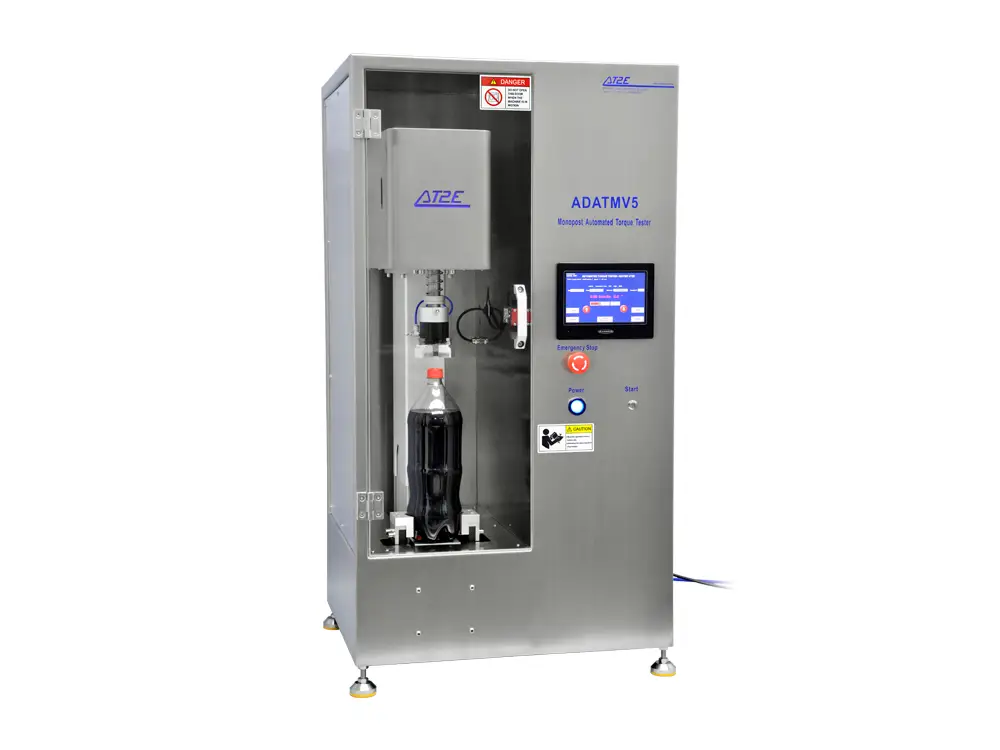

ADATMV5

Monopost Automatic Torque Tester

The ADATMV5 is a state-of-the-art device designed for precise and versatile torque testing. With a user-friendly touchscreen display and dynamic measurement capabilities, it ensures reliable operation across a wide range of applications.

Key Features

• Touchscreen control for easy adjustment of testing parameters.
• Accurate torque measurement in both opening and closing directions, from 0.00 to 99.00 Kgf.cm.
• Six specialised measuring cycles for comprehensive torque performance analysis.
• Adjustable rotating angle and speed, tailored to specific cycle requirements.
• Storage for up to 30 products, 10 operator settings, and multiple threshold options.
• Administrator password protection to maintain data integrity.
• Stores up to 9,999 measurements, with data transfer via RS232 output and direct printing.
• Safety door, automatic zero calibration, and adjustable cycle speeds for different sample types.
• Stainless steel frame with versatile measuring chucks.

Calibration & Optional Enhancements

Supplied with a COFRAC calibration certificate to ensure it meets strict accuracy standards. Expand the tester’s capabilities with optional accessories including a mini printer, QUALITORQ software, and a dynamometric system for even more precise torque measurements.

Applications

Versatile and suitable for industries ranging from beverages to pharmaceuticals, automotive and electronics — anywhere reliable, precise torque measurement is critical to quality control.

Talk to the Techotrix team to find out whether the ADATMV5 is the right torque tester for your application.
