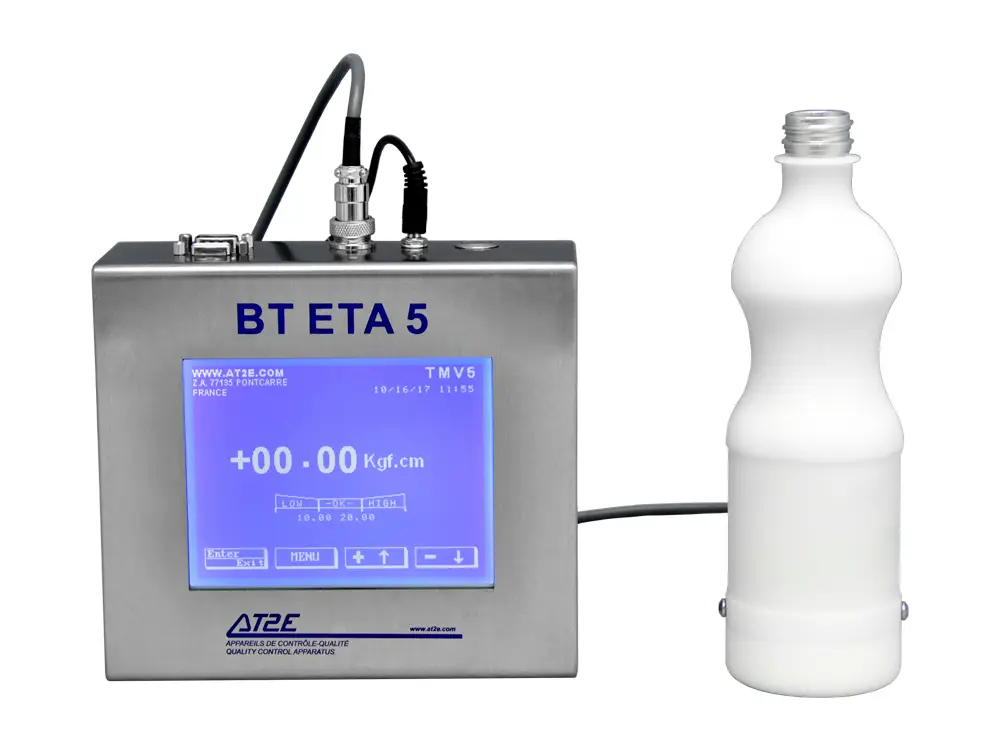

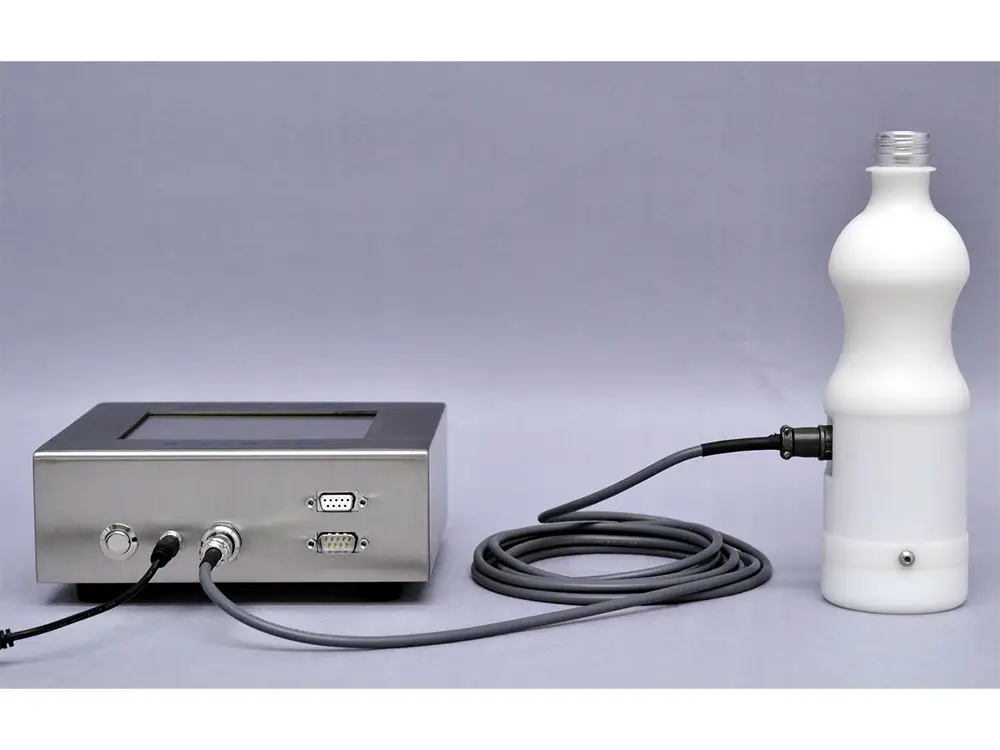

BT ETA 5

Touch Screen Dynamometric Torque Bottle

Designed to be installed under capping heads, the BT ETA 5 uses a special mechanical system for measuring torque which cancels most non-coaxial and top-load influences on the measurement. These features cancel most operator influences on the measurement for maximum repeatability.

Key Features

• Touchscreen display with measurements in opening and closing directions.
• Three measuring modes: mean, peak, and peak+info.
• Multiple units: Kgf.cm, Inch.lbs, daN.cm, N.m, N.cm.
• High accuracy: ±0.2% of full scale.
• 50-product memory with 4 limits each, and 4 thresholds per product (Low, v Low, High, v High).
• Stores up to 15 operators in memory, with preferences set via admin password.
• Stores and transfers up to 1000 measurements.
• Message and bar-graph display of torque value as a function of set thresholds.
• Dynamic display of statistics, hour and date; product name, operator, batch and line numbers.
• 2x RS/USB outputs for PC and printer connectivity.
• Multiple languages: English, Spanish, French, German, Italian.

Mechanical Specifications

Stainless steel frame rated IP64, delivered with a COFRAC calibration certificate and operating on 110/230V, 50/60Hz.

Applications

Ideal for real-time in-line torque monitoring directly under capping heads across beverage, cosmetic, pharmaceutical and food packaging lines.

Talk to the Techotrix team to find out whether the BT ETA 5 is the right torque bottle for your line.
