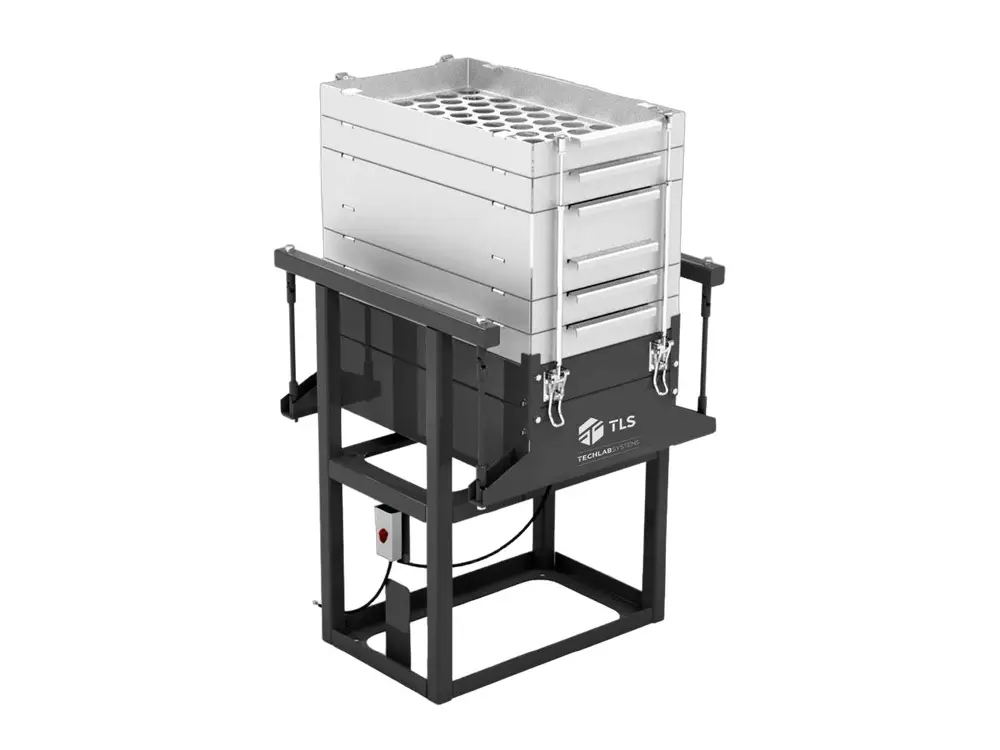

CC-100
Chip Classifier
The CC-100 Chip Classifier provides quick, reproducible classification and analysis of wood chips and shavings used in digesters and laboratory pulp digesters, to TAPPI UM 21 and SCAN CM 40 standards. The standard version ships with 6 sieve stations for full-range particle classification.
Chip Classifier
For rapid classification and analysis by size of wood chips and shavings used in digesters and laboratory digesters of paper pulp. The CC-100 is a chip quality optimisation tool, robust chip classifier, and screener optimisation tool built for quick and reproducible classification and analysis of wood chips.
Standard Features
- Chip quality optimisation tool.
- Robust chip classifier.
- Screener optimisation tool.
Standard Version Supply
- 1st Station: 45mm (1.77″) diameter holes.
- 2nd Station: 10mm (.393″) wide slots.
- 3rd Station: 8mm (.315″) wide slots.
- 4th Station: 7mm (.276″) diameter holes.
- 5th Station: 3mm (.118″) diameter holes.
- 6th Station: dust pan collection.
Note: other trays are available optionally.
Applications
According to standards TAPPI UM 21 and SCAN CM 40, this equipment plays an essential production management role in making chips of a unified, controlled size — supporting adequate digestion and efficient chipper knife and screen operation for the pulp and paper industry.
Talk to the Techotrix team to find out whether the CC-100 is the right chip classifier for your pulp production.
| Standards | TAPPI UM 21, SCAN CM 40 |
| Stations (Standard) | 6, from 45mm holes down to 3mm holes plus dust collection |
| Optional Trays | Available |
Other tray configurations available optionally to match your required standard or particle size classification.
Contact the Techotrix team to confirm the right CC-100 tray configuration for your chip classification requirements.
