PSC-G10N & PSC-S10N Series

PSC-G10N & PSC-S10N Series

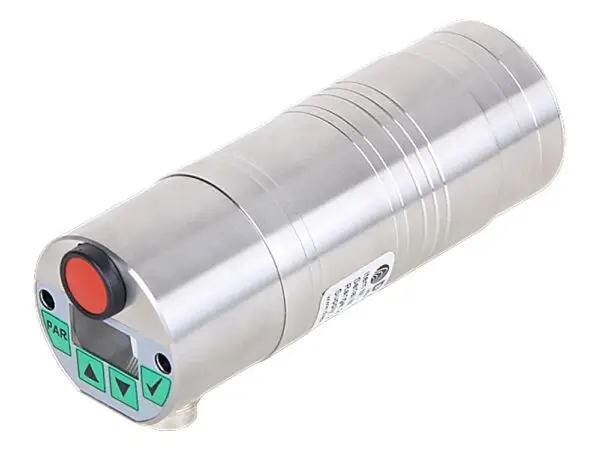

The Process Sensors PSC-G10N and PSC-S10N Series are 1-color, non-contact infrared temperature sensors offering an on-board temperature display/menu, with laser, through-lens, or video sighting for precise aiming and target alignment. The PSC-G10N covers temperatures from 200°C to 2500°C, while the PSC-S10N covers 550°C to 3000°C. All measurement parameters — including sub-temperature range, peak picker, emissivity, response time, and analog output — are adjustable directly at the sensor via push-buttons and the on-board display, or remotely from a PC running PSC Spot software.

Key Features

• Wide temperature ranges from 200°C to 3000°C (392°F to 5432°F).

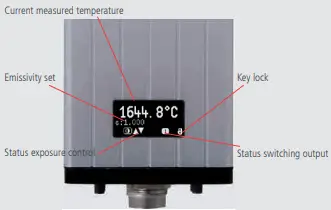

• On-board display with push-button menu for sensor configuration via PSC Spot software.
• Laser, through-lens, or colour video sighting options (available as L / T / V variants).
• Focusable optics from 250mm (9.8in) to 4000mm (157.4in) working distance.
• Spot sizes down to 0.032″ (0.8mm).
• Fast response time of 2ms, adjustable up to 100s.
• Emissivity adjustable from 0.050 to 1.000.

Applications

Suited to steel and metals processing, induction heating, semiconductor, molten silicon and glass, silicon carbide, kilns and furnace applications, research and development, vacuum furnaces, graphite and composites.
