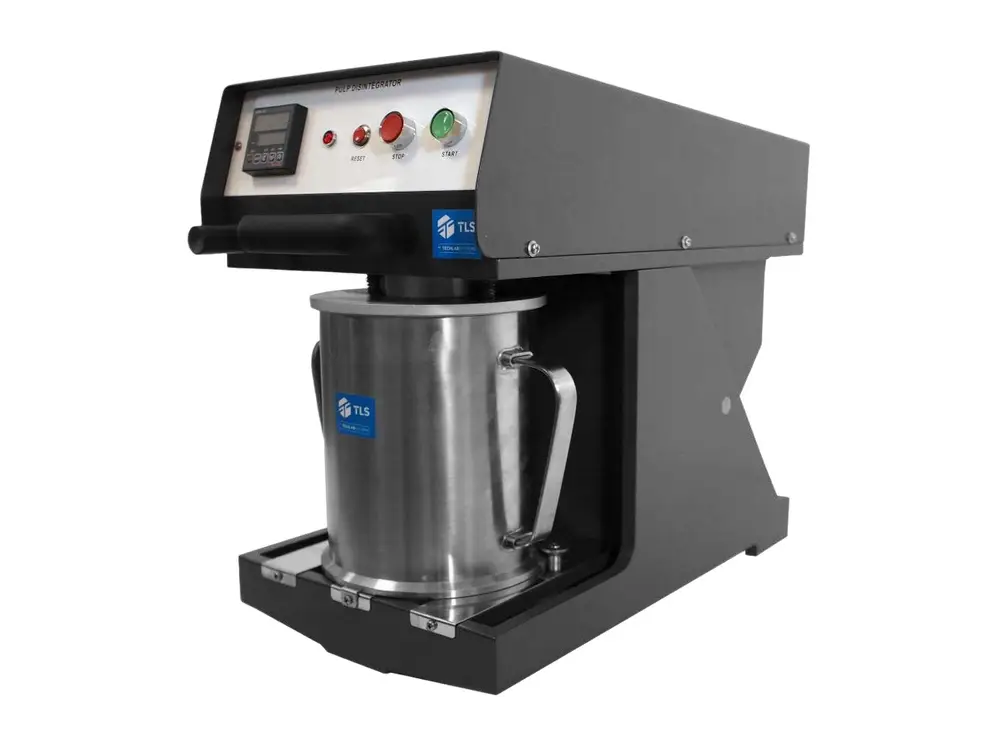

PD-10

Pulp Disintegrator

Equipment for the standardised disintegration of cellulosic pulp in water suspension. This disintegrator allows the mechanical treatment of pulp in water so that interlocking fibres that were free on the sheet of pulp are again separated from each other, without appreciable cutting.

Three propeller blades placed at a fixed distance in the centre of the vessel rotate at a specified speed, with revolutions shown on a digital readout. The pulp sample is introduced into the vessel with water, placed firmly against the base stops, and the upper head closed. The desired revolution count is selected and the disintegration phase begins, stopping automatically when the digital counter reaches the preset speed.

Key Features

• Compact and robust construction.
• Electronic elements protected, located in the upper part of the equipment.
• Safety mechanism with additional stop button.

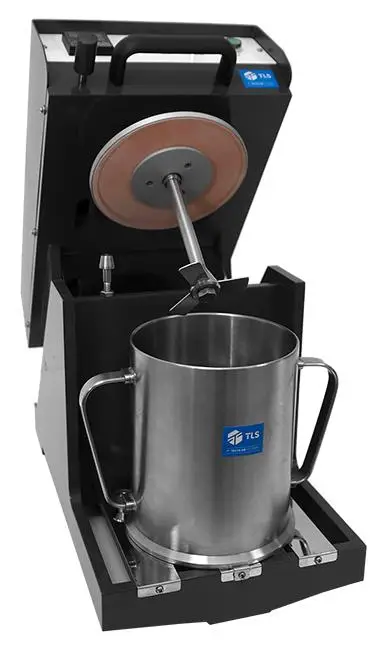

• Tilt head, easy to clean.
• Preselection of revolutions by digital display.
• Revolutions: 2975 ± 25 rpm.
• High-performance engine.
• Disintegration vessel made of stainless steel, 2-litre capacity.
• Easy to use and ergonomic.

Applications

Once disintegrated, the pulp sample can continue to refining in PFI or Valley-type equipment, and finally be used to produce paper sheets in a standard sheet former or “Rapid Köthen” type, ready for physical, surface and optical property testing. Meets TAPPI T205, ISO 5263, SCAN C.18/M2, NF Q 50002, UNE 57026 and PAPTAC C6.

Talk to the Techotrix team to find out whether the PD-10 is the right pulp disintegrator for your laboratory.
