Test Cans

OMIT Adjustable Test Cans

Nomitech Inc. presents their line of OMIT adjustable Test Cans. These robust plastic cans are designed to mimic the fill level inside a can to verify the correct height settings of gamma / X-ray based fill level inspection equipment.

We currently manufacture these test cans in all standard sizes for the North American and European markets, and can also produce custom sizes.

Key Features

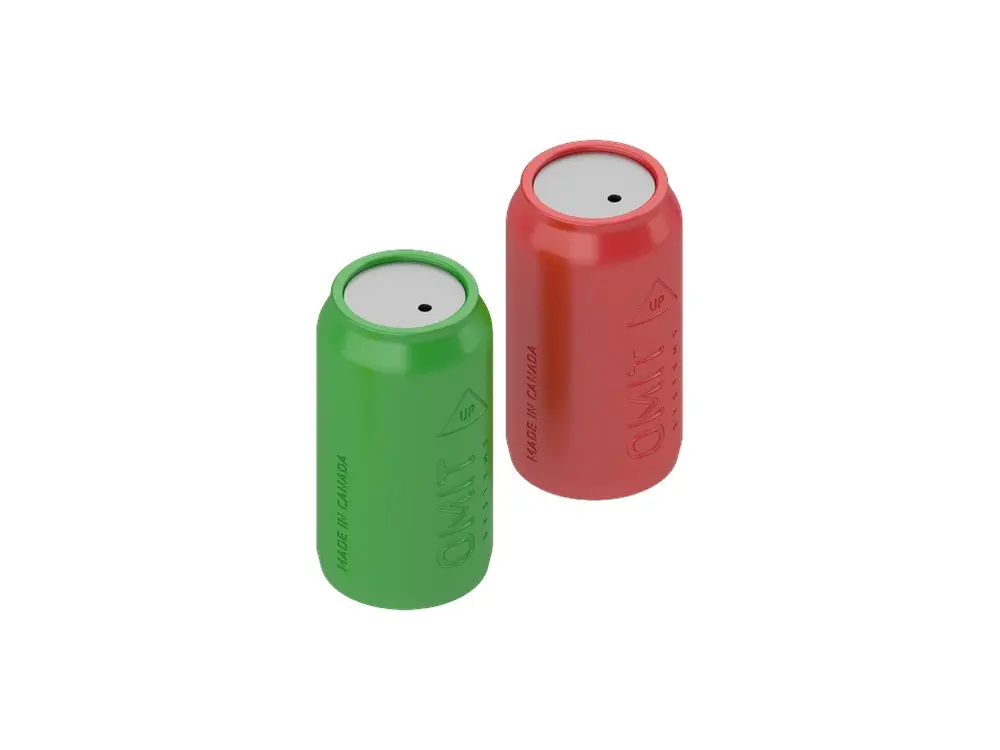

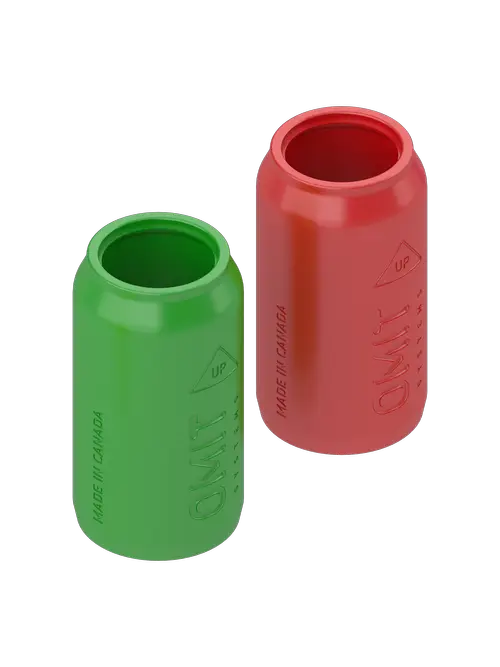

• GO (Green) and NO GO (Red) fill level test cans, with easily adjustable/lockable fill slug height.
• Ensures fill level systems are accurate and tuned to the correct height.
• Compatible with all XRay / Gamma based fill level inspection systems.

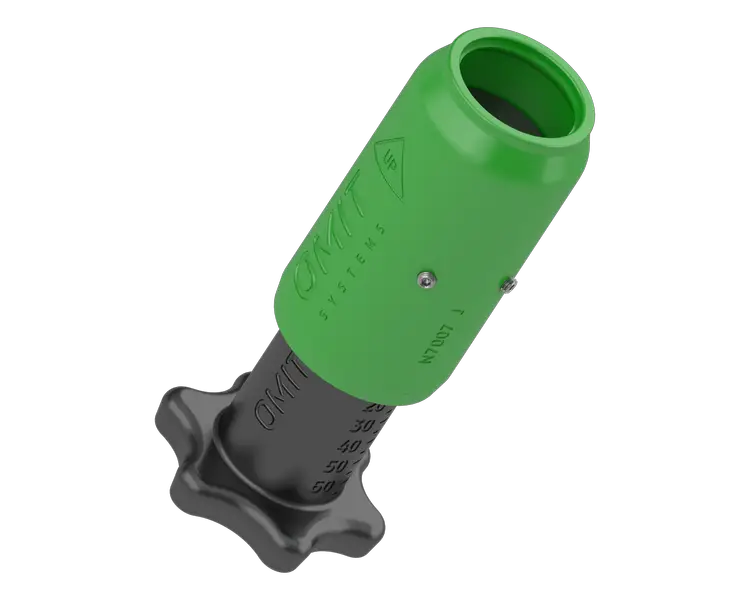

• Fill height set with our universal adjustment tool, then securely locked to prevent changes.
• Newest design incorporates an internal 3-point cam locking system to prevent damage from excessive force.

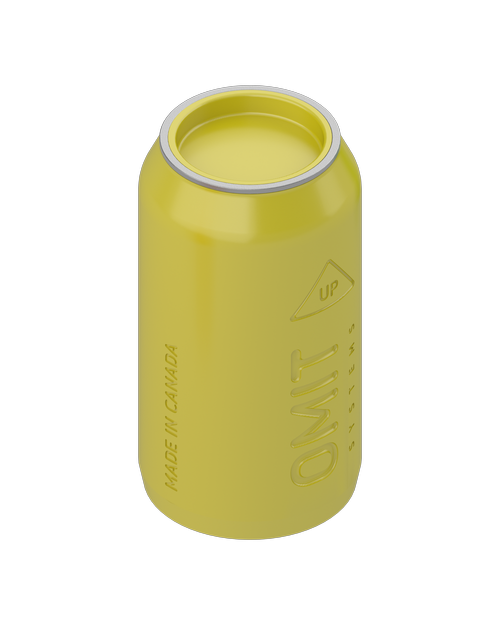

• Optional Good Lid metal insert and Missing Lid Challenge can, to test lid presence detection.

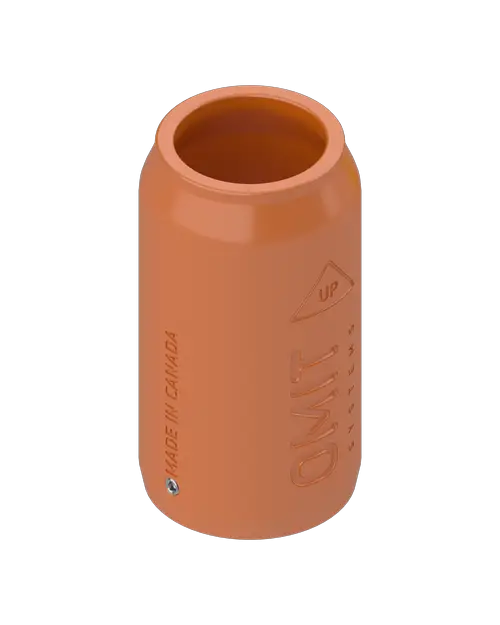

• Reject Challenge can, with removable stainless weights, to test proper rejection of failed product.

General Features

• Water and oil resistant double wall design.
• Resilient, impact resistant plastic for long-term, repeated testing.
• Gamma / X-ray readings closely match normal liquid readings.
• Verifies fill height setting and X-ray/gamma thresholds.
• Fill level height readily visible for confirmation on standard cans.
• Easily slips onto conveyor to allow for rapid insertion into the production line.
• Stainless heel reinforces the bottom, minimising wear/height change on most styles.
• Cans designed to mimic production cans for optimal triggering/rejection.
• Special tool for fill height changes, restricted to approved personnel with lock.
• 1 year warranty.

Applications

Essential for beverage, brewing, food and pharmaceutical production lines using gamma or X-ray based fill level inspection equipment, ensuring accurate calibration and correct rejection of underfilled or improperly sealed product.

Talk to the Techotrix team to find out whether OMIT Adjustable Test Cans are the right solution for your fill level inspection verification.
