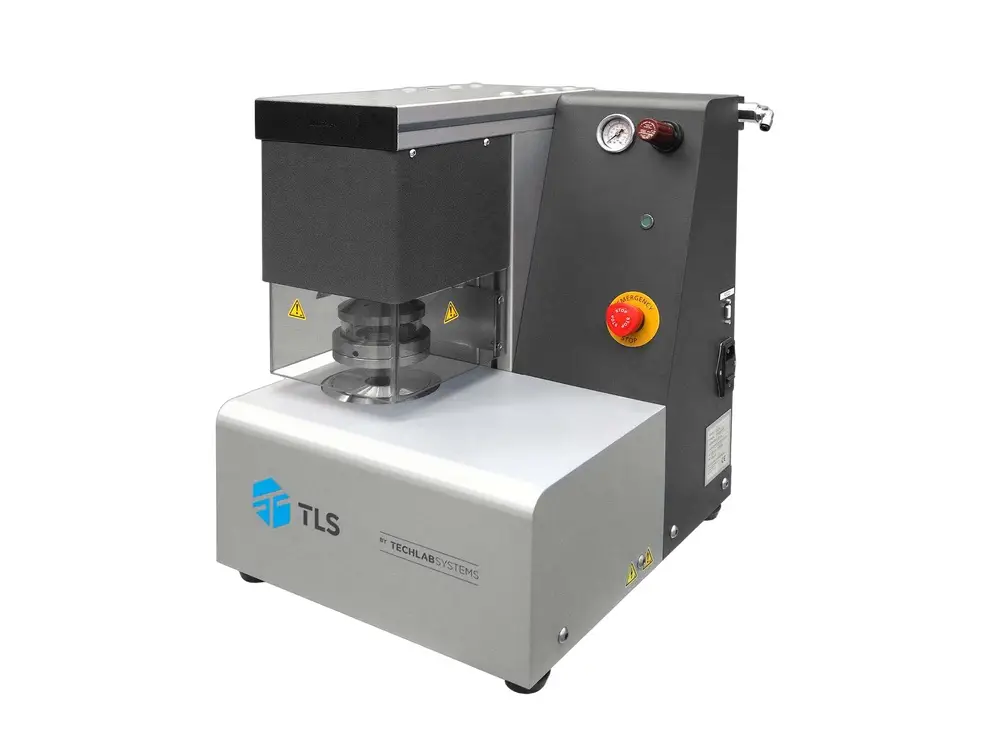

Bursting Strength Tester for Paper & Board

The BT10 Bursting Strength Tester determines the bursting resistance of paper and corrugated board to international standards (ISO 2758/2759, TAPPI T403/T807/T810 and more). With LYNX testing software and a Mini PC included, it measures 0-1500 kPa for paper or 200-5000 kPa for board.

Download Brochure
Inquire Now

Bursting Strength Tester for Paper & Corrugated Board

The BT10 Bursting Strength Tester is used to determine the bursting resistance of paper and corrugated board, in accordance with standards including DIN EN ISO UNE 2758, DIN EN ISO UNE 2759, SCAN P25/P24, TAPPI T403/T807/T810, PAPTAC D19P/D8, BS 3137, and AP/AS 1301.403.

Standard Features

  • Units in kPa, Kg/cm2, Bar and PSI.
  • Measuring range: paper from 0 to 1500 kPa; board from 200 to 5,000 kPa.
  • Statistics: max, min, average and standard deviation.
  • Operating security system.
  • Pneumatic operation of clamping system.
  • Acrylic protection screen over the test area.
  • Compatible with Quality Test Management (LYNX Plus & Pro).
  • LYNX testing software, basic level, included.
  • LYNX Management Module with basic statistics.
  • Mini PC included for data acquisition and control.

Applications

Essential for paper and corrugated board manufacturers verifying bursting resistance meets international packaging and materials standards.

Talk to the Techotrix team to find out whether the BT10 is the right bursting strength tester for your material testing needs.
