PBMS

Preform & Bottle Measuring System

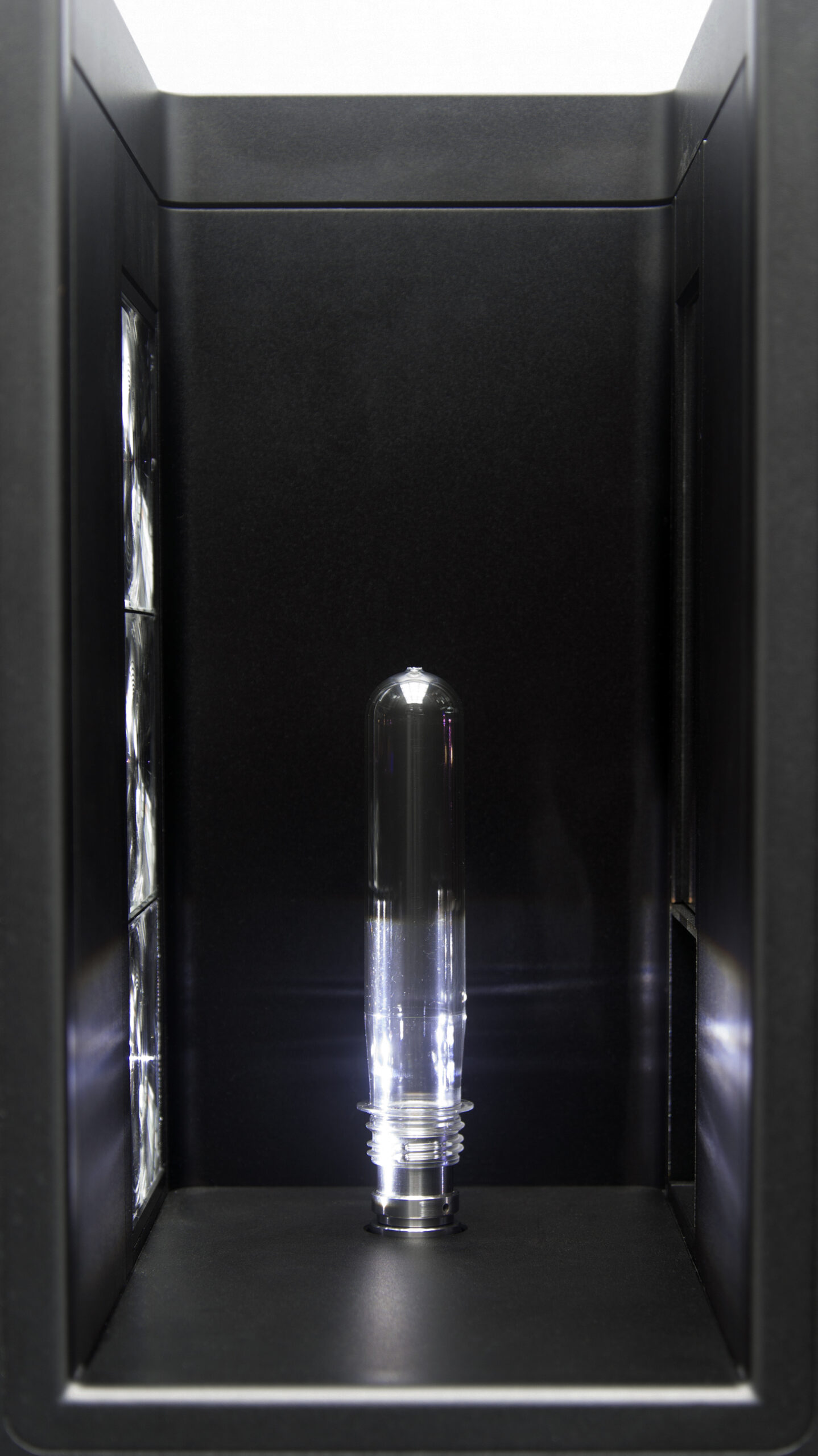

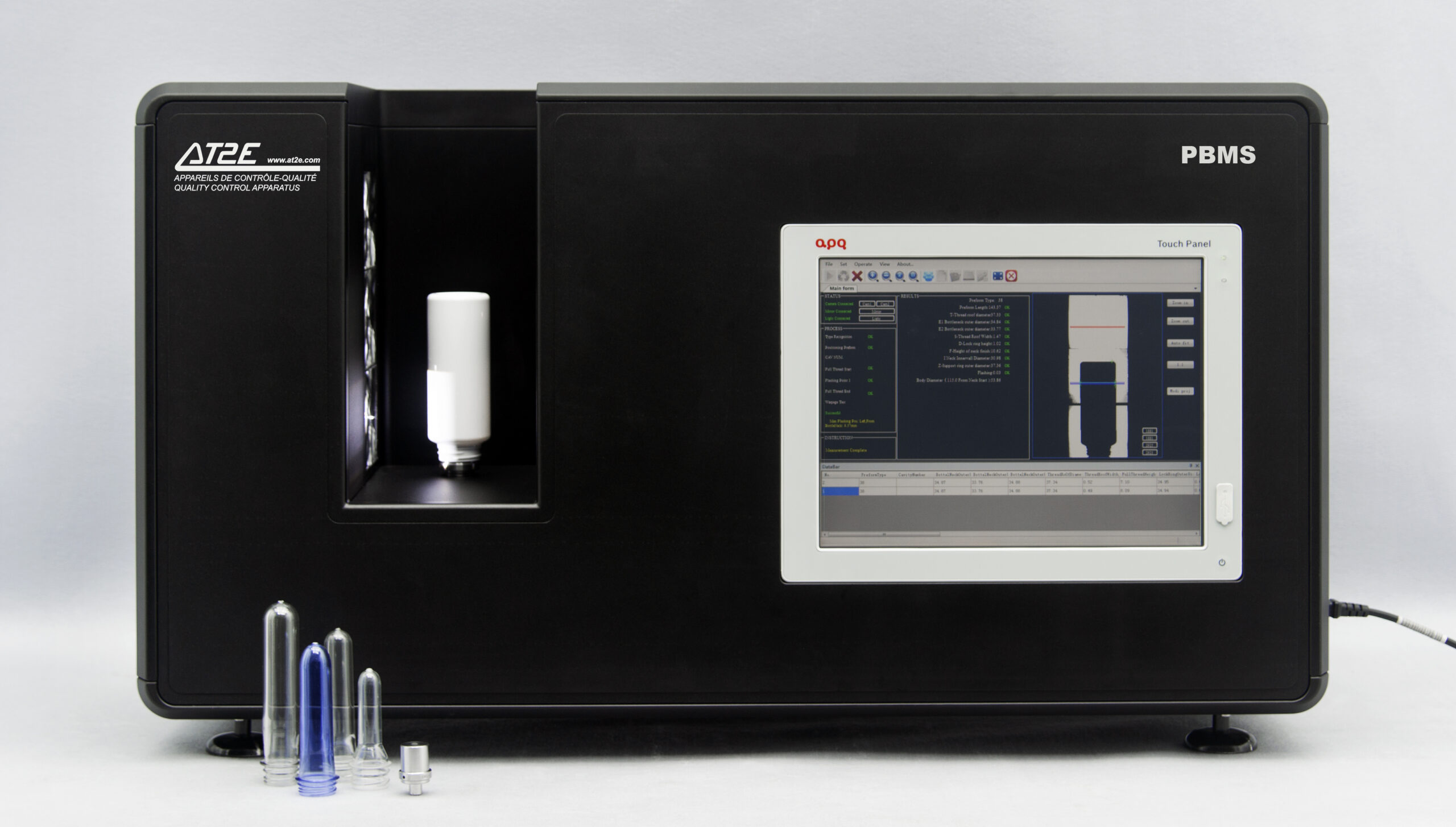

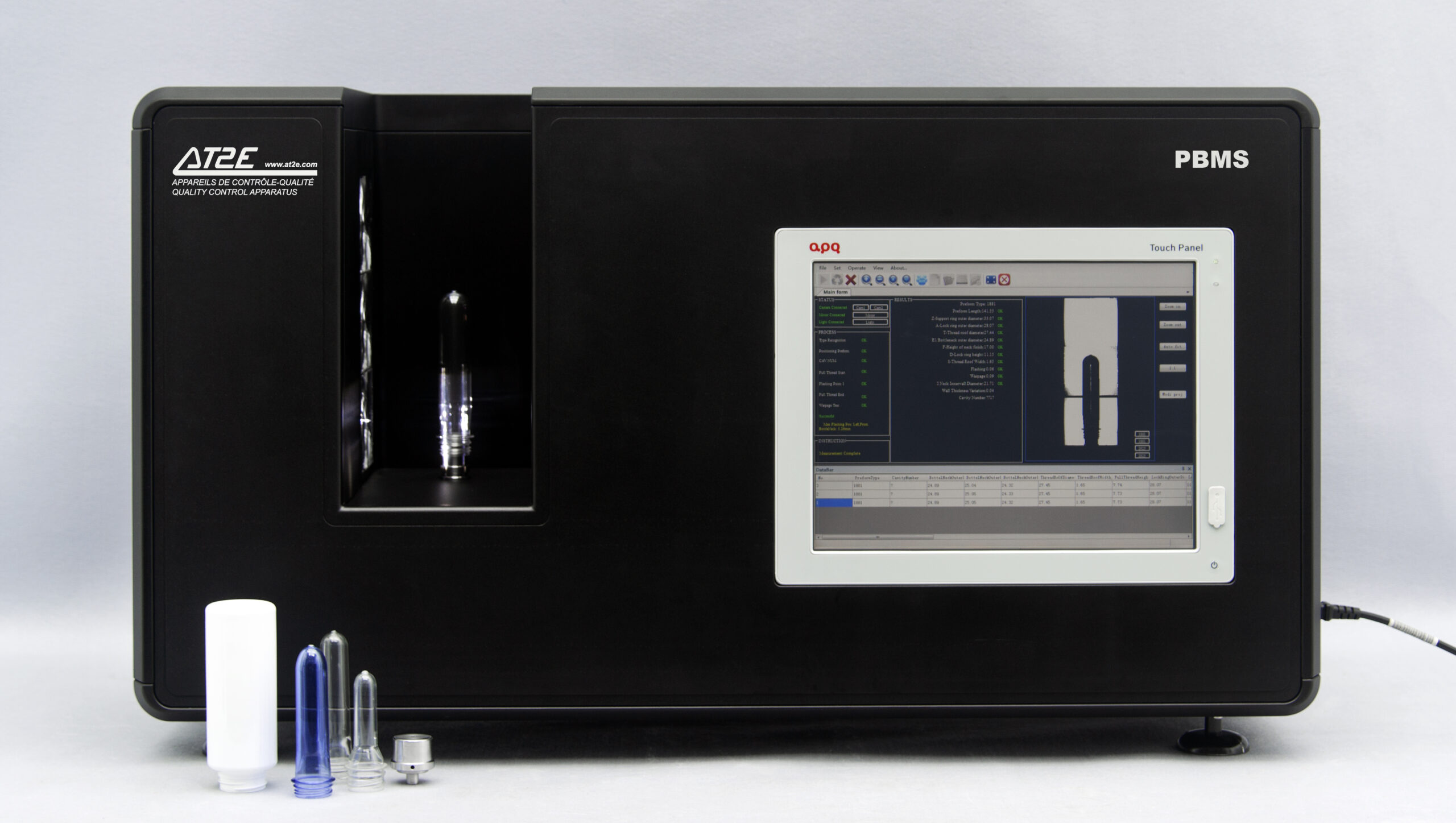

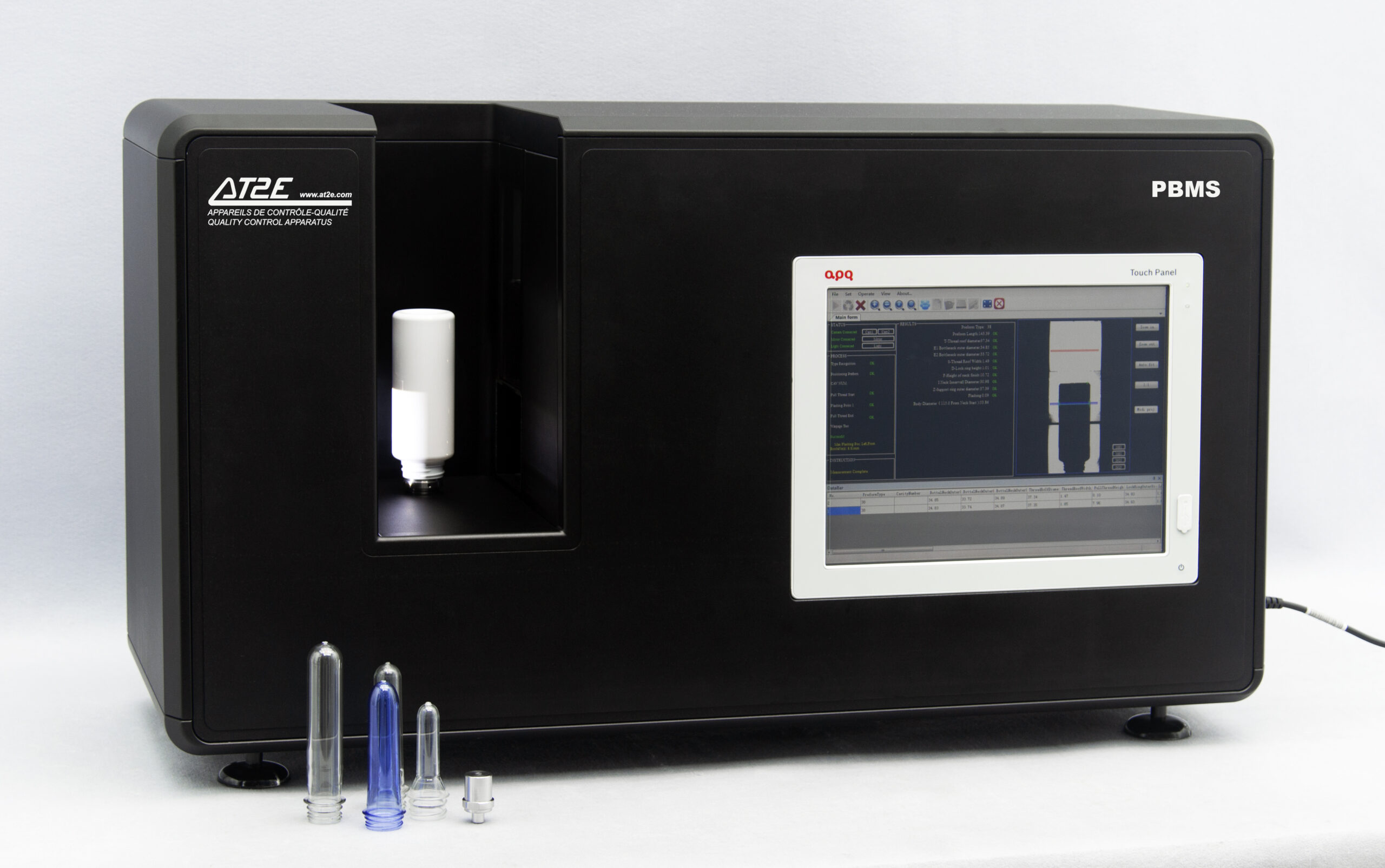

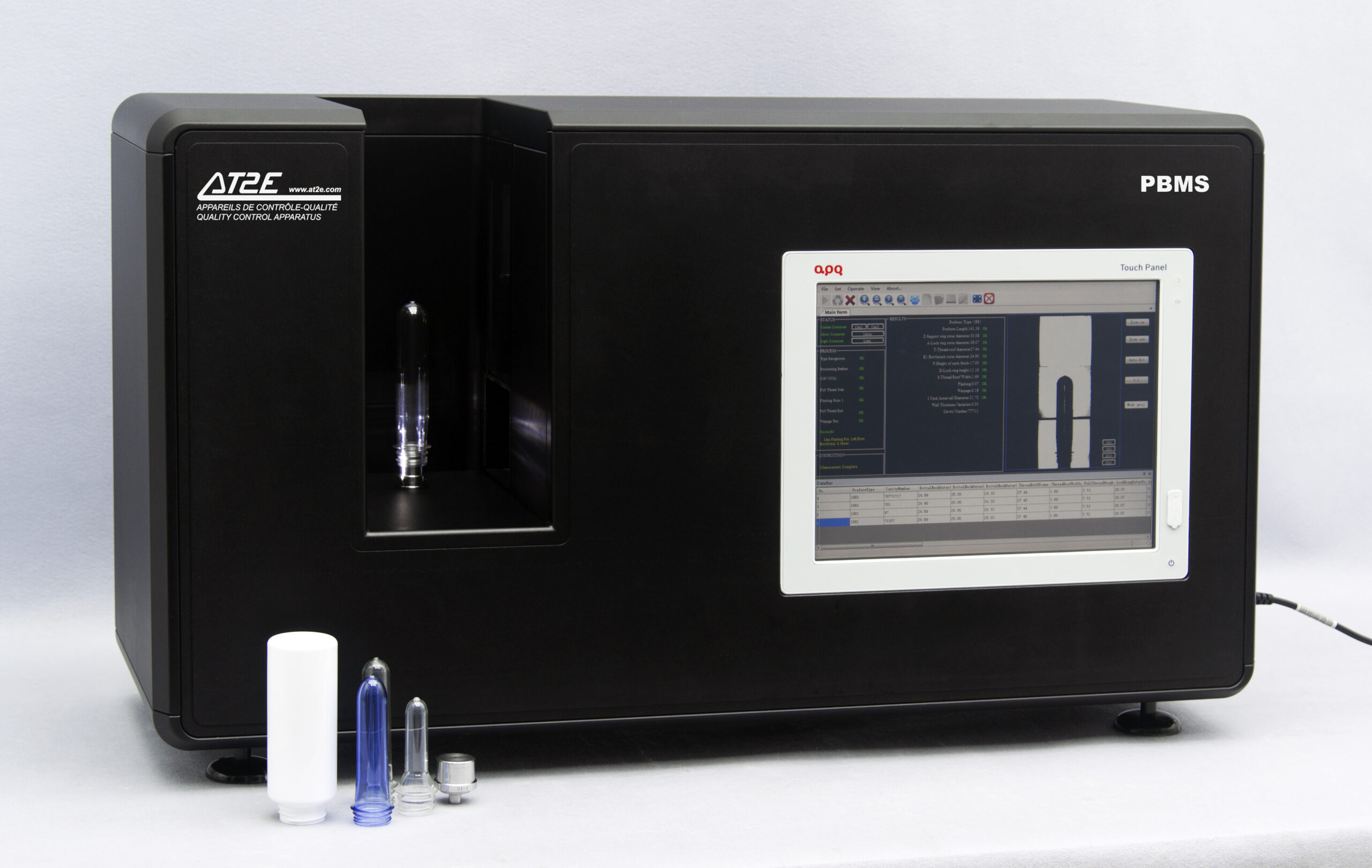

The PBMS is an automatic instrument for testing the general dimensions of preforms and bottles, PET and glass. The instrument is designed according to the principle of confocal and optical chromatic refraction, using optical multi-lens and segmented imaging with multi-segment parallel light to illuminate the preform or bottle and obtain a complete contour image.

The contour is extracted with high-precision definition, ensuring it isn’t distorted and measurement accuracy is maintained. By rotating the preform and analysing the variation of refraction and reflection as light passes through it, the thickness variation of the preform is also calculated.

Key Features

• Measurement scope: general dimensions of preform and bottles, including wall thickness difference, inner diameter and thread angle.
• Measurement accuracy up to 0.005mm, with sub-pixel processing.
• Photography chip: 10 million pixels, black and white.
• Chromatic combination and confocal optics lens.
• Fully automated, no-contact measurement.
• Automatically detects sample type.
• Measures standard dimensions like neck and thread diameter, plus detailed features such as flashing and concentricity.

Applications

Essential for PET preform and glass bottle manufacturers needing high-precision, high-throughput dimensional quality control without physical contact with the sample.

Talk to the Techotrix team to find out whether the PBMS is the right measuring system for your preform and bottle quality control.
