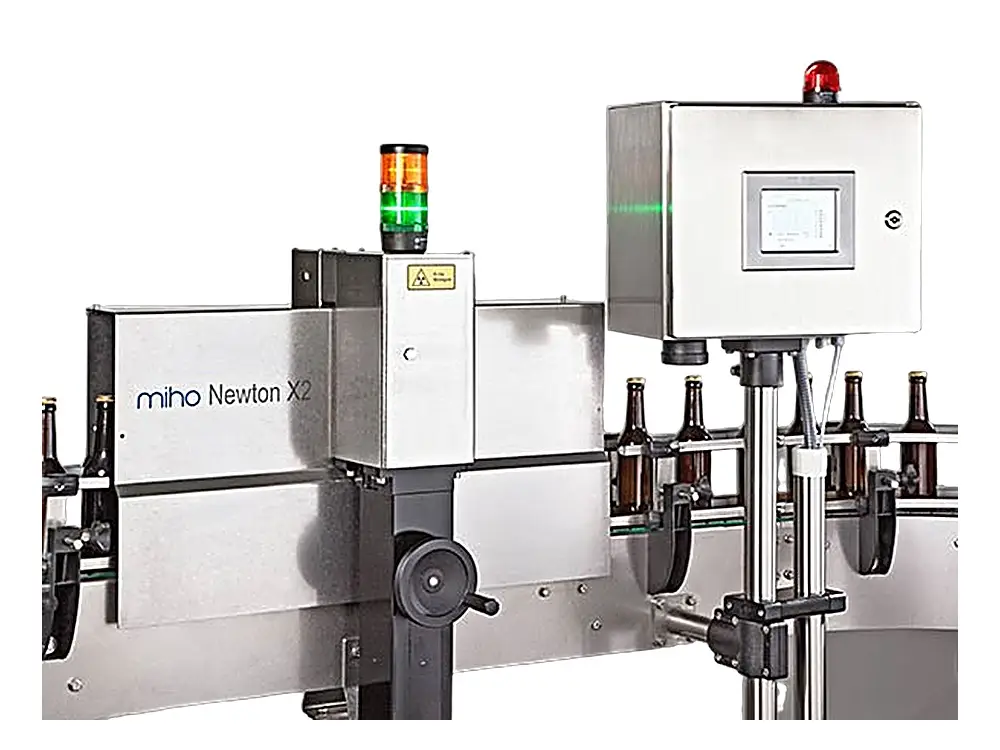

Newton X2Z

Fill Level Control (Line Detector, X-Ray Technology)

The miho Newton X2Z uses X-ray technology specifically developed for fill level inspection. By using a line detector with a fill level measurement range of 20mm, it’s possible to accurately inspect any underfilling or overfilling with just one inspection head.

Minimum radiation exposure is achieved because pulsed X-ray radiation is only generated during the short moment of measurement, with radiation emission typically below the naturally occurring levels found in enclosed spaces.

Key Features

• Line detector — 20mm fill level measurement range.
• Pulsed X-ray technology, low radiation.
• Single inspection head covers both underfilling and overfilling.
• Comprehensive statistics for individual fault types.
• Serial fault detection implemented.
• Connection to external production data acquisition system possible.
• Handwheel height adjustment for the inspection head.

Typical Performance

For mineral water, cola and beer, typical accuracy is ±1.5mm with a detection rate of ≥99.4%. X-ray fill level technology is particularly well suited to cans, U-shaped bottles, opaque containers or containers with metal foils, and can be installed after the filler or labeller regardless of product or container type — including swing-top bottles.

Applications

Ideal for beverage lines running cans, opaque or foil-lined containers where optical, HF or IR fill-level methods aren’t practical.

Talk to the Techotrix team to find out whether the miho Newton X2Z is the right fill level control solution for your line.
