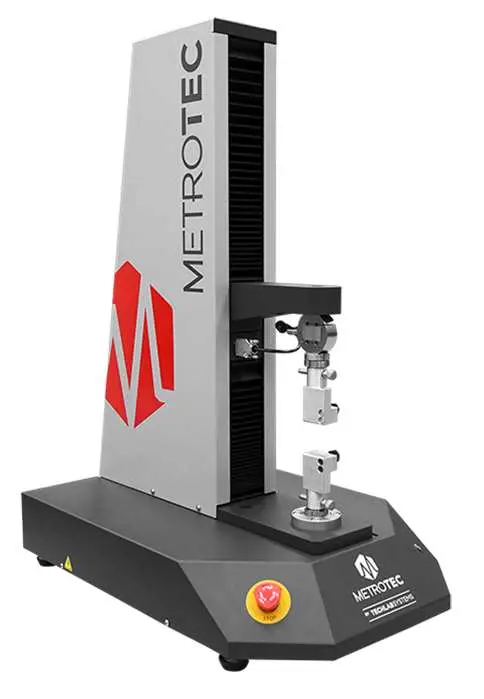

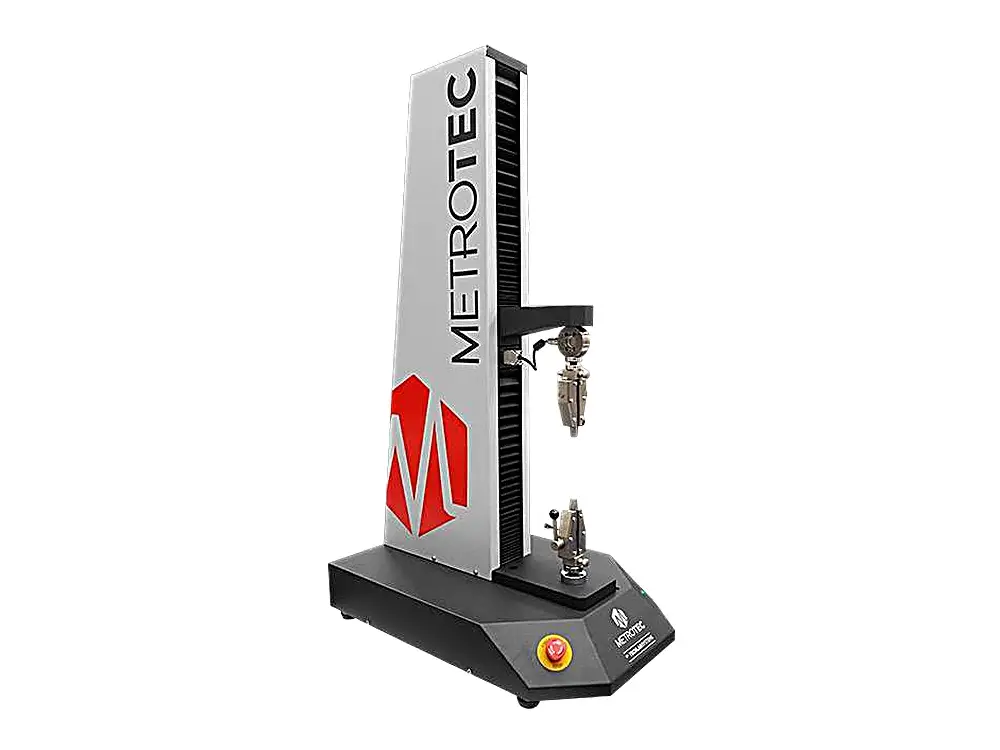

MTE-5

Electromechanical Material Testing Machine (5kN)

The single column material testing machine is designed to test a wide range of materials such as plastics, rubber, adhesives, foils, leathers, textiles, yarns and ropes, in tension, compression, flexion, shear, peel and tear, up to 5kN of capacity.

Unit Control

• PC control with METROTEST Material Testing Software.
• Sample breaking level detection (% force drop at end of test).
• Force and extension peak maintenance in tension or compression.
• Selection of units of force and deformation.
• External control mode for 15″ laptop PC.
• RS-232 serial port with USB converter.

Force Measurement

• Range: 2% to 100%, accuracy 0.5% of applied force.
• Force accuracy: Class 0.5 (±0.5%).
• Load reading resolution: 1/200,000 points.
• Sampling speed: 30,000 samples/second (internal).
• Units selectable: Kg, N or Lb.
• Overload protection (load cell).
• Programmable pre-load.

Applications

Essential for laboratories testing light materials such as plastics, rubber, adhesives, foils, leathers, textiles, yarns and ropes for tensile, compression, bending, shear or peel properties.

Talk to the Techotrix team to find out whether the MTE-5 is the right material testing machine for your laboratory.
