GBBT-2

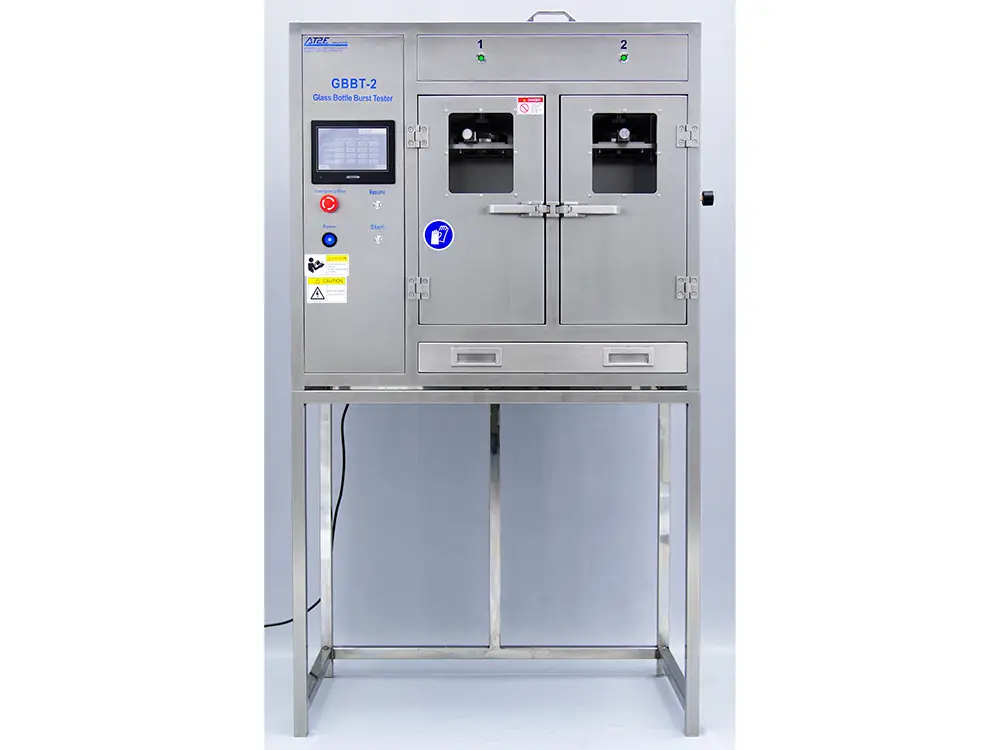

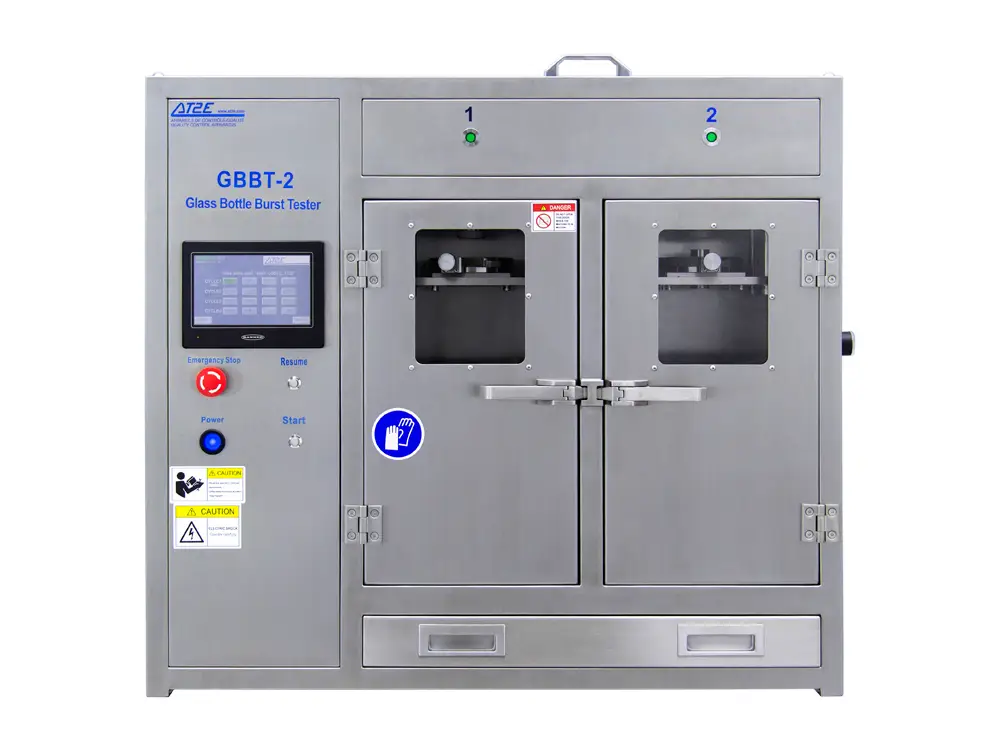

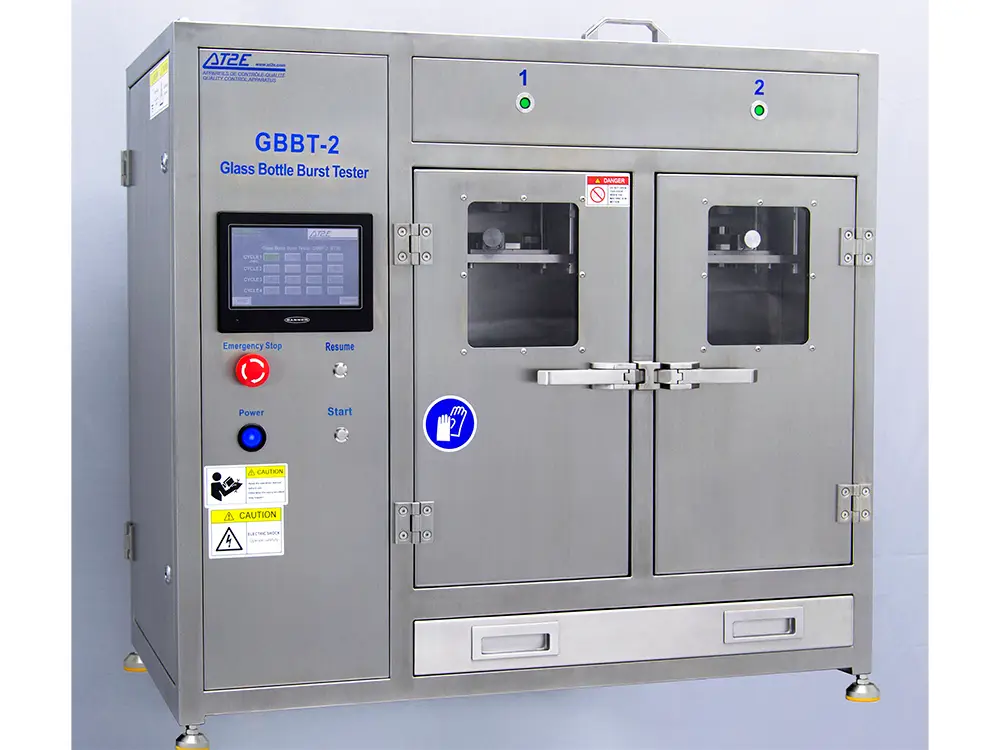

Glass Bottle Burst Tester (Dual Station)

The GBBT-2 is an instrument for testing the internal pressure resistance of glass containers, widely used by glass container manufacturers and users. As a standard testing instrument for the glass container industry, it offers an important technical reference for maintaining or improving product quality and performance.

Designed for easy operation and maintenance, complying with ISO 7458:2004, the pressure test of containers is made up to a predefined pressure point (trial test) or until destruction. Two positions work simultaneously for higher testing throughput.

Key Features

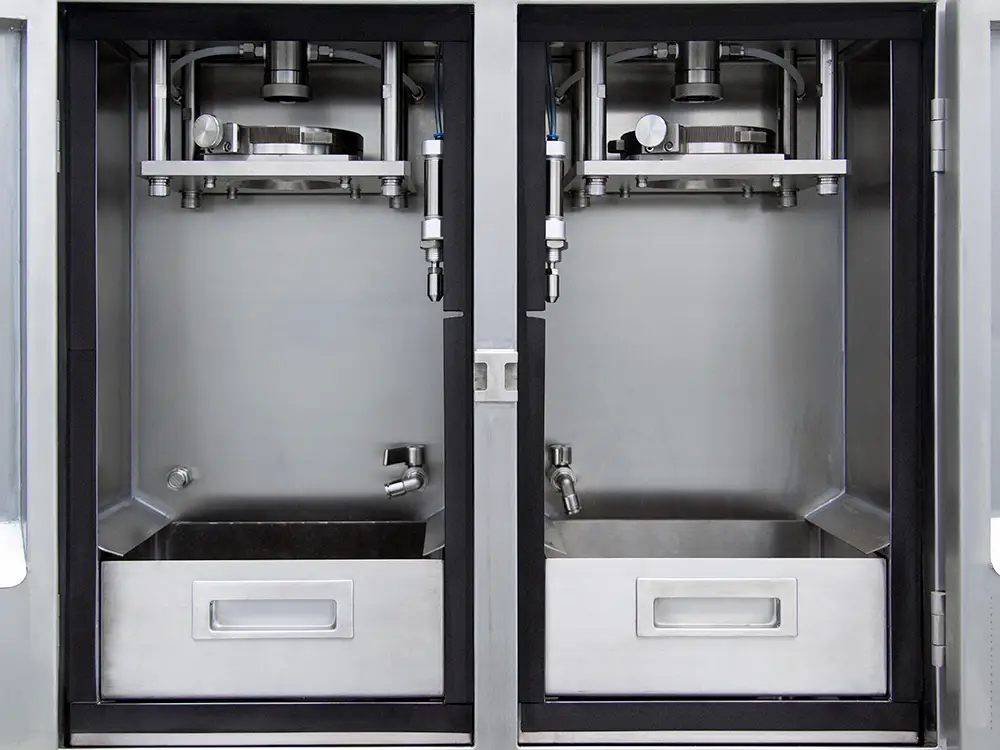

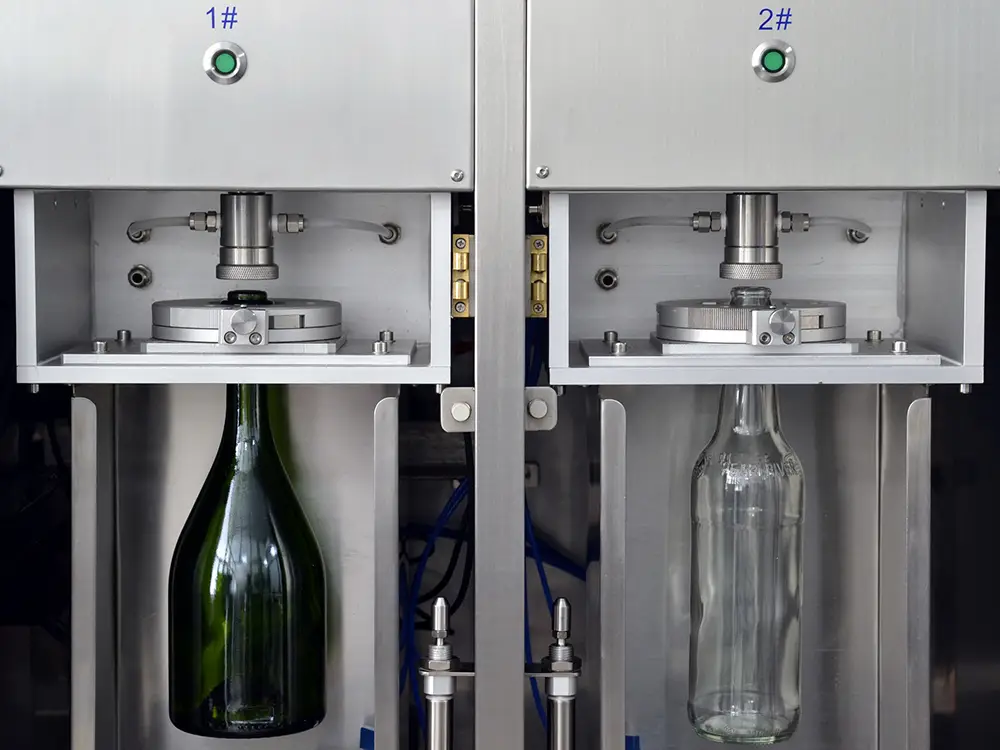

• Two positions working simultaneously.
• Touch screen with PLC control.
• Predefined cycles (up to 4 climbs, 4 stops).

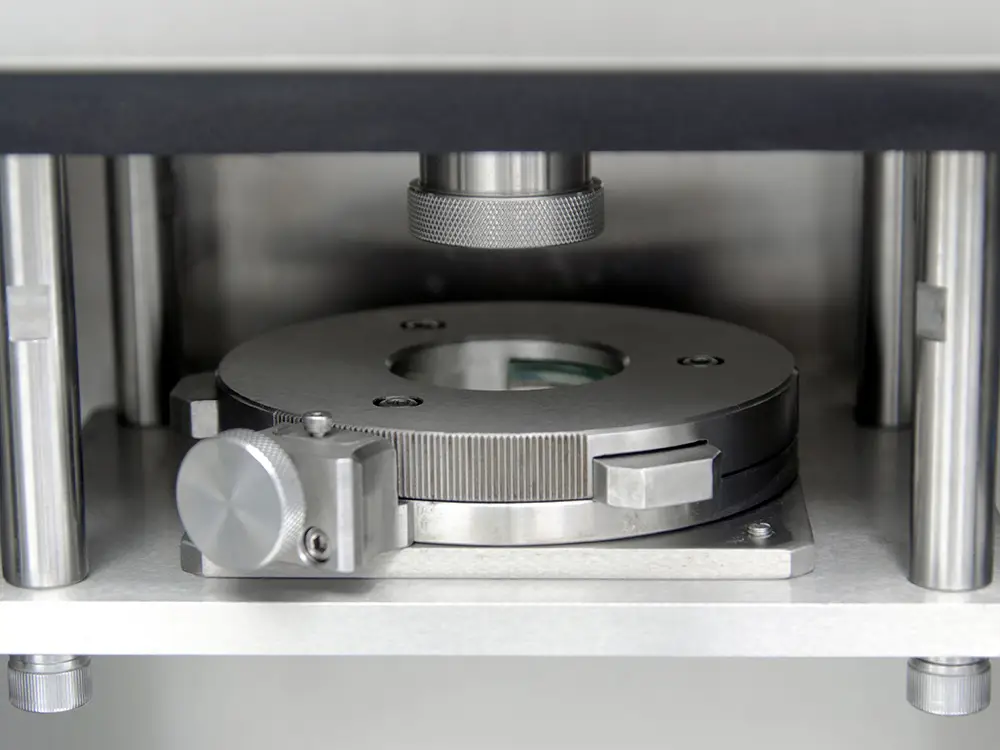

• Automatic bottle lock, easy to use.
• Automatic installation and filling.
• Linear pressurization for consistent testing.
• Memorisation of 10 operators and 30 products, batch numbers and thresholds.
• Stainless steel (INOX) manufacturing.
• Real-time curve and measurement visualisation.

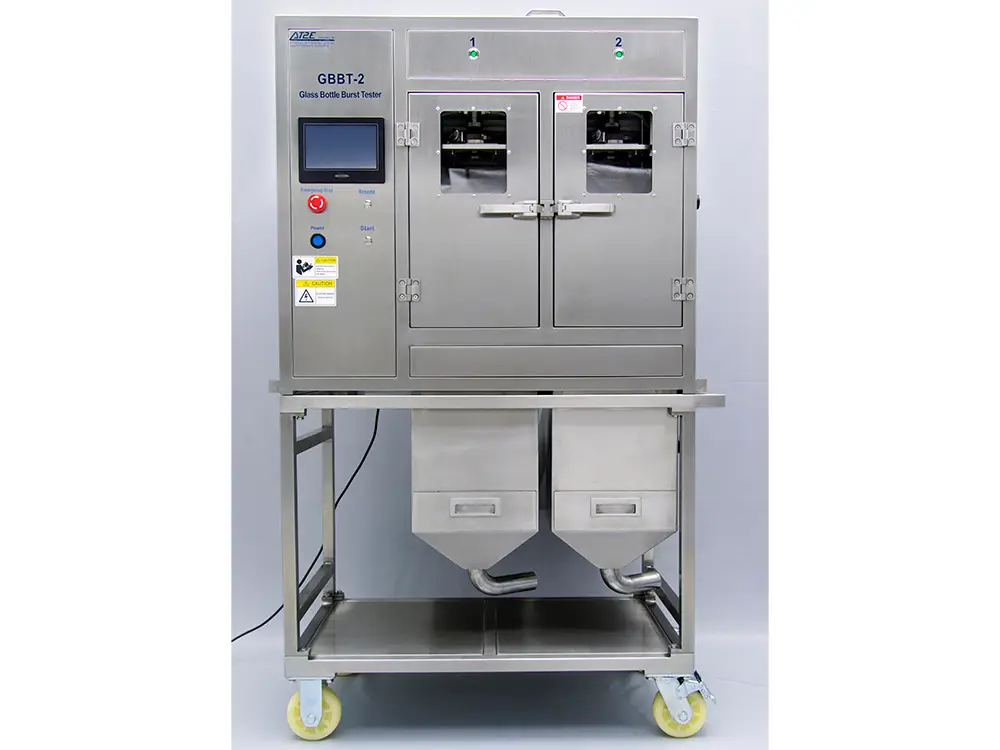

• Recovery drawer for glass shard collection.
• RS-232C output, connects to printer or QPV1 software.

Applications

Essential for glass container manufacturers needing higher-throughput internal pressure resistance testing across two simultaneous stations.

Talk to the Techotrix team to find out whether the GBBT-2 is the right dual-station burst tester for your glass container quality control.
