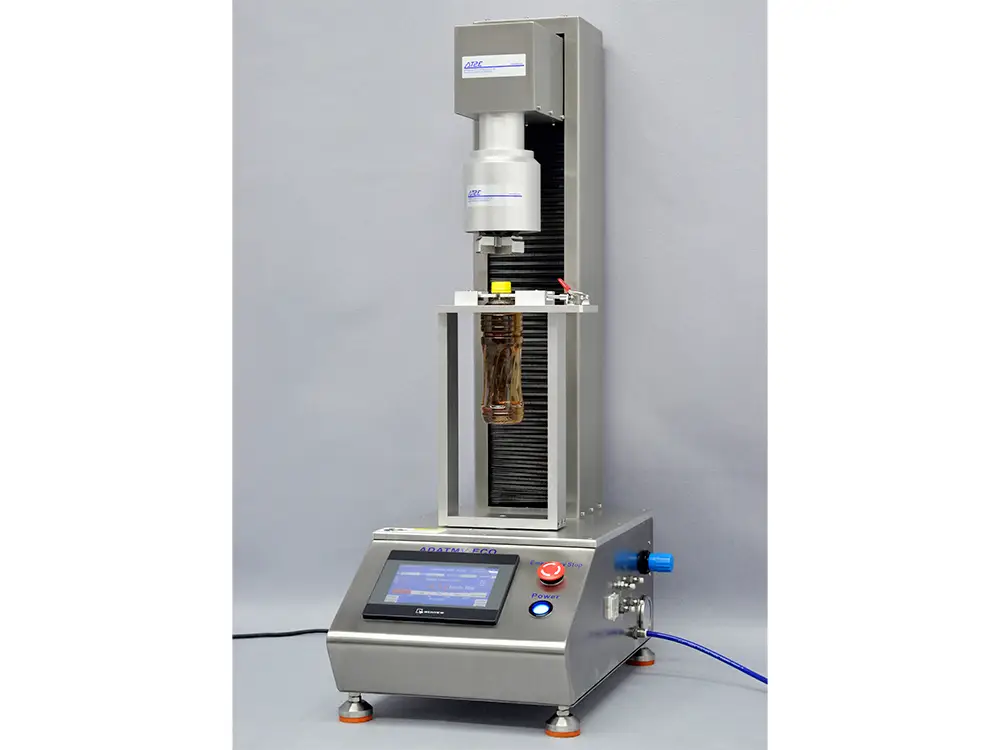

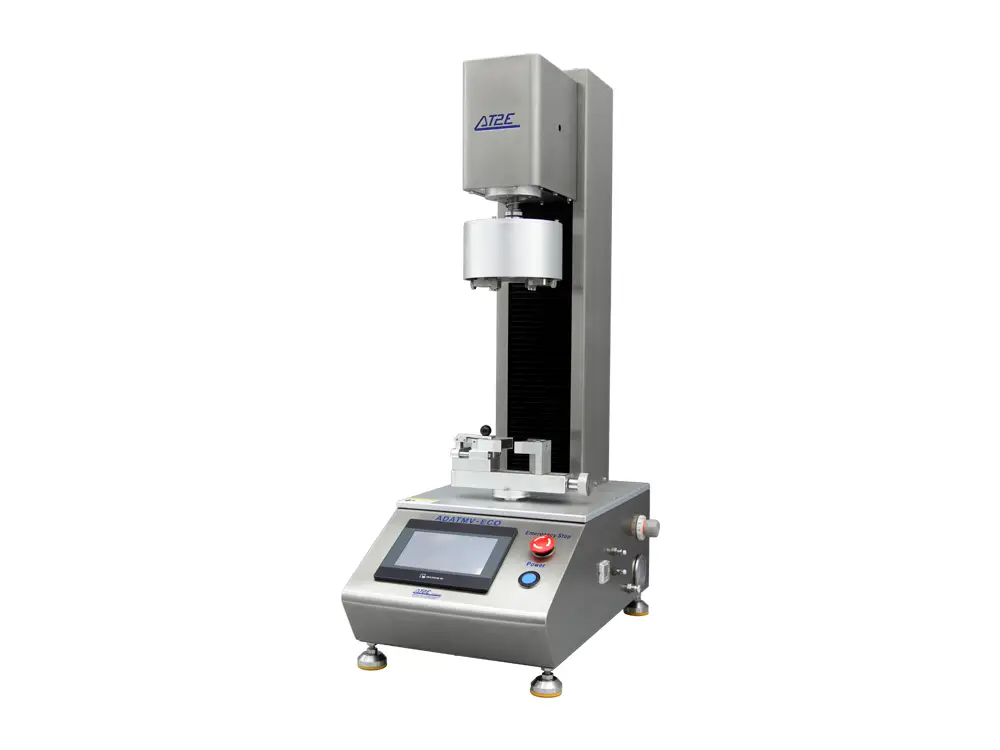

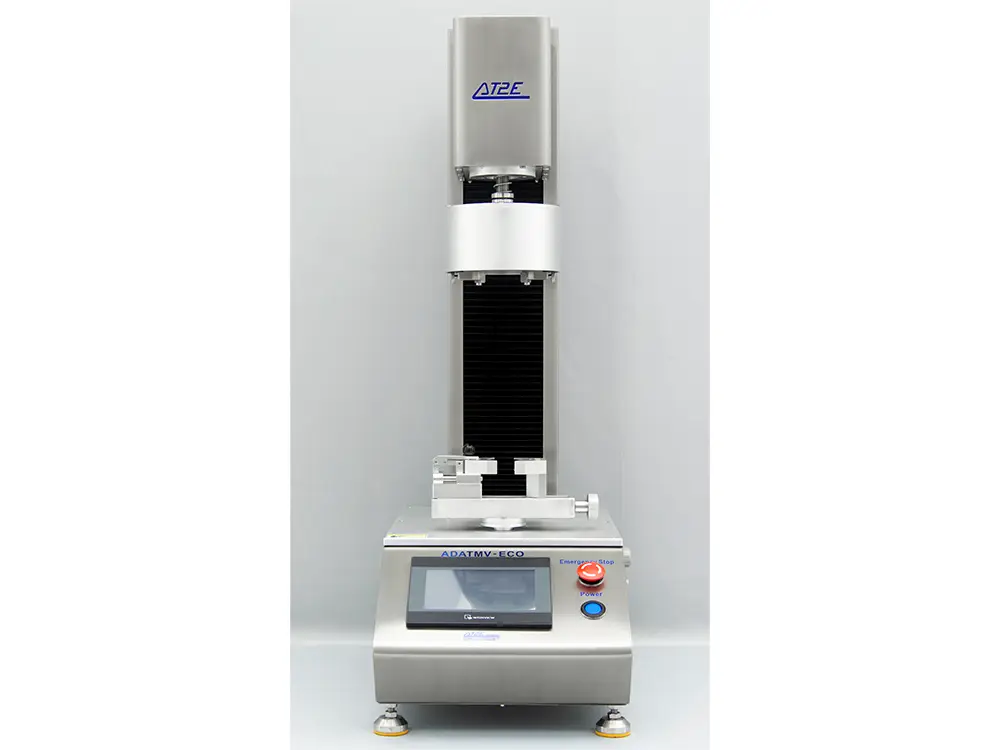

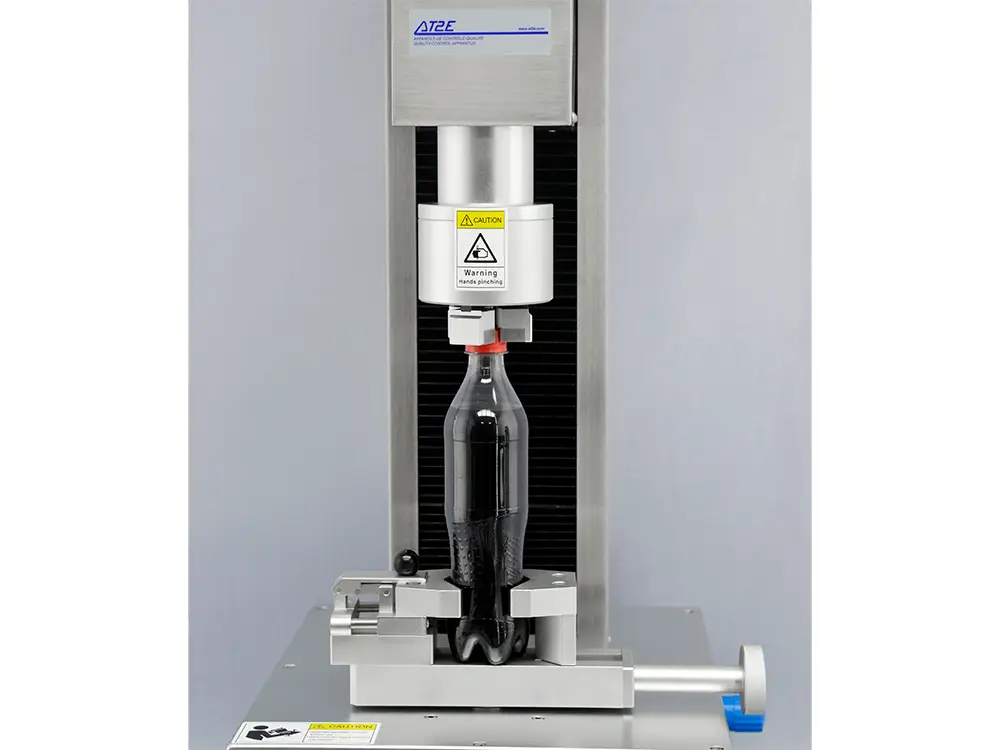

ADATMV-ECO

Semi-Automatic Torque Tester

The ADATMV-ECO Semi-Automatic Torque Tester offers precise and efficient bottle cap torque measurement. It features a durable stainless steel frame and a user-friendly touchscreen display for seamless operation, capable of measuring torque in both opening and closing directions.

Key Features

• Touchscreen Control: Allows easy parameter adjustments and hands-free operation.
• Measuring Range: 00.00 to 99.00 Kgf.cm, suitable for a wide variety of testing needs.
• Measuring Cycles: Constant reading, opening or closing, and removal plus breaking.
• Multiple Units Supported: Kgf.cm, N.m, Inch.lbs, N.cm — applicable worldwide.
• High Precision: Accuracy within ±0.5% of full scale.
• Automated Zeroing: Adjustable column height and customisable screwing/unscrewing speeds.

Data Management

Stores up to 30 products and 10 operators, with capacity for 9999 measurements. Dual outputs include 1x USB for data transfer and 1x printer output for immediate record printing. Ships with a COFRAC calibration certificate to ensure verified accuracy.

Optional Enhancements

Upgrade your testing capabilities with a Mini Printer for immediate result printing, QUALITORQ Software for advanced data analysis, and a Calibration Pack to maintain ongoing accuracy.

Applications

Widely used across beverages, cosmetics, pharmaceuticals, chemicals, food and electrical manufacturing industries to ensure product safety, packaging integrity and consistent quality control.

Talk to the Techotrix team to find out whether the ADATMV-ECO is the right torque tester for your production line.
