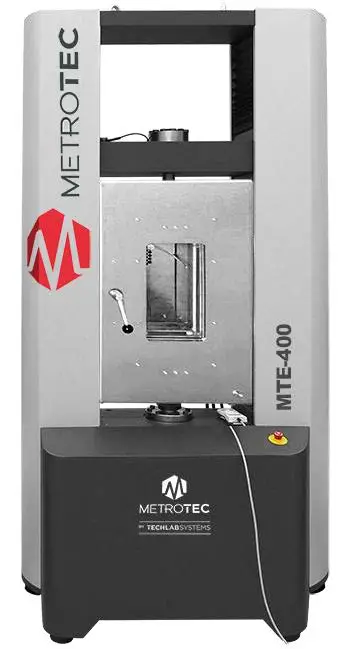

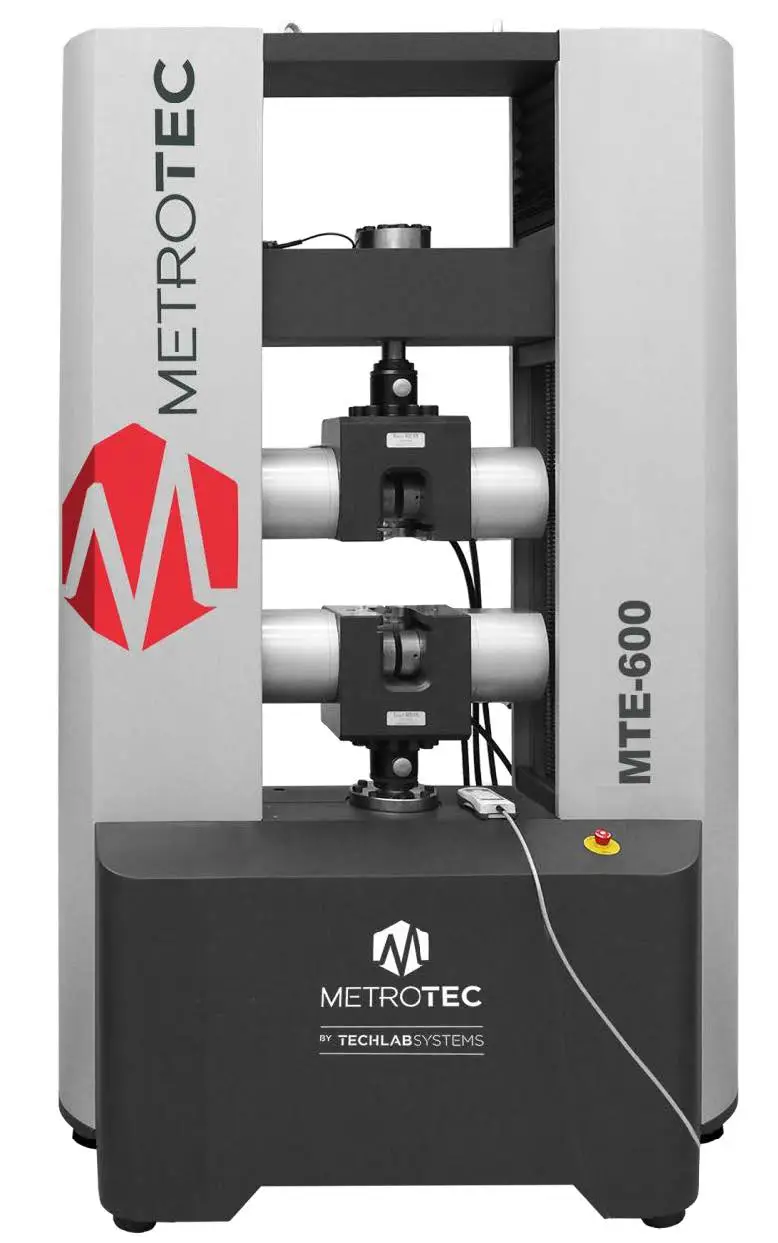

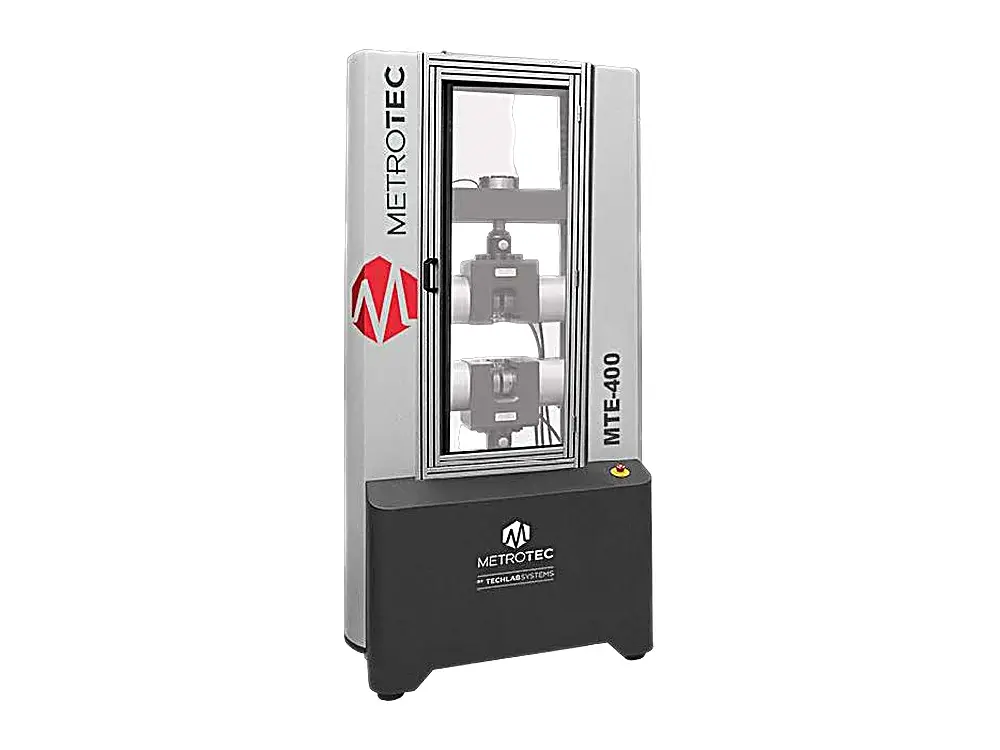

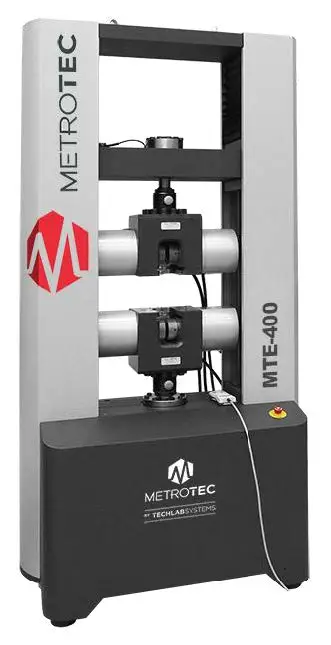

MTE 400 – 750 kN

Electromechanical Universal Testing Machine (400-750kN)

Universal materials testing machines with 2 columns, designed for high-capacity tensile, compression, flexion and shear tests on heavy-duty materials such as steel wire rod, wind components, twisted metallic cables, galvanised metal sheets, copper sheets/strips and mechanical constructions.

The test frame allows overloads of 120% of the nominal force without affecting accuracy of measurement or operation, giving the frame great robustness and safety of operation under intensive work. It has independently adjustable upper and lower travel limiters.

Key Features

• Capacity range: 400-750kN.
• Robust dual-column frame for heavy-duty applications.
• Overloads up to 120% of nominal force without affecting accuracy.
• Independently adjustable upper and lower travel limiters.
• Displacement resolution: 0.001mm.
• Test speed accuracy: ≤ ±1%.
• RS-232 output interface with USB converter.
• Testing software with basic statistics.
• Compatible with the T-LAB Laboratory Management System.

Applications

Suitable for steel wire rod, wind components, containers, twisted metallic cables, galvanised metal sheets, copper sheets and strips, mechanical constructions, and ropes (metallic, plastic and textile). Meets ISO 7500-1, ASTM-E4, EN 10002-2, BS 1610 and DIN 51221.

Talk to the Techotrix team to find out whether the MTE 400-750kN is the right heavy-duty universal testing machine for your application.
