UniPol V

UniPol V

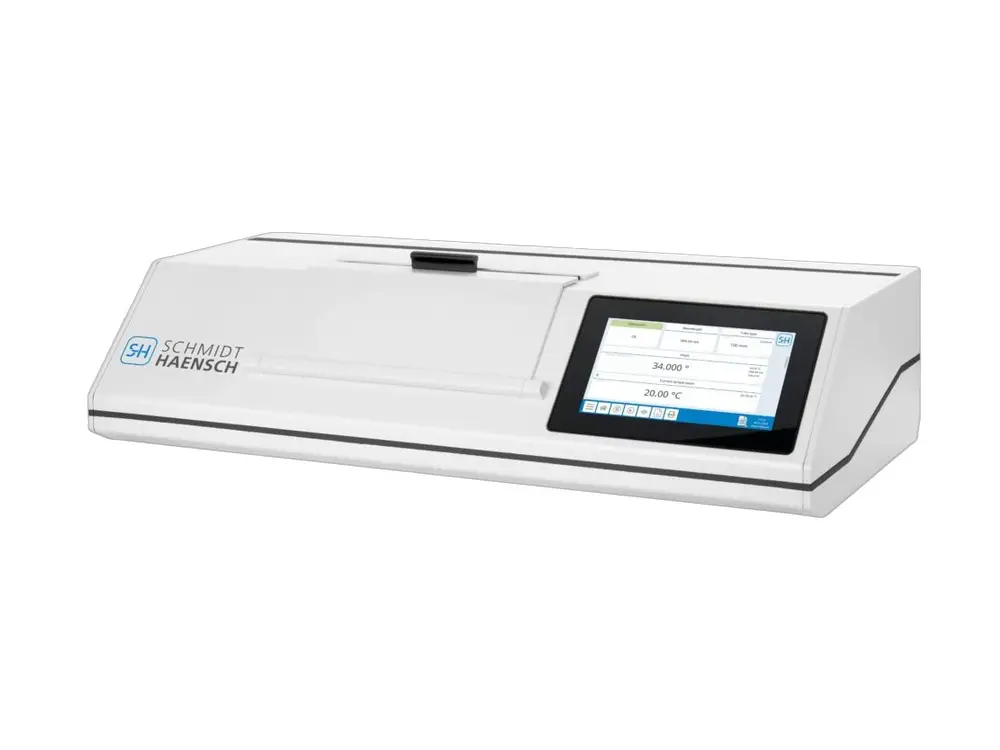

The Schmidt+Haensch UniPol V is a versatile polarimeter with 7 freely definable measuring scales, covering optical rotation, specific rotation, the °Z International Sugar Scale, and percentage concentration. Its flexible measuring range and reliable performance make it well suited to a variety of laboratory quality control applications. Featuring temperature regulation via circulation thermostat and a range of connectivity options, the UniPol V delivers accurate, repeatable results for sugar, pharmaceutical, food, and chemical laboratories.

Key Features

• Measuring scales: optical rotation, specific rotation, °Z International Sugar Scale, % concentration (g/mL, g/100mL, g/L) — 7 scales freely definable.
• Measuring range: ±89.9° (rotation offset of 90°, 180° or 270° possible), up to 259 °Z.
• Accuracy: ±0.003° / ±0.009 °Z; Reproducibility/Precision: ±0.001° / ±0.005 °Z.
• Resolution: 0.001° / 0.01 °Z (0.001° Z on request).
• Sensitivity up to OD 3; response time max. 13 seconds.
• Temperature regulation via circulation thermostat.
• Interfaces: RS232, USB A (x2), Ethernet, WLAN (via adapter).

Applications

Suited to sugar, pharmaceutical, food and beverage, and chemical laboratories needing reliable, flexible polarimetric measurement across several standard and custom scales.
