PIT-25

Charpy-Izod Pendulum Impact Tester

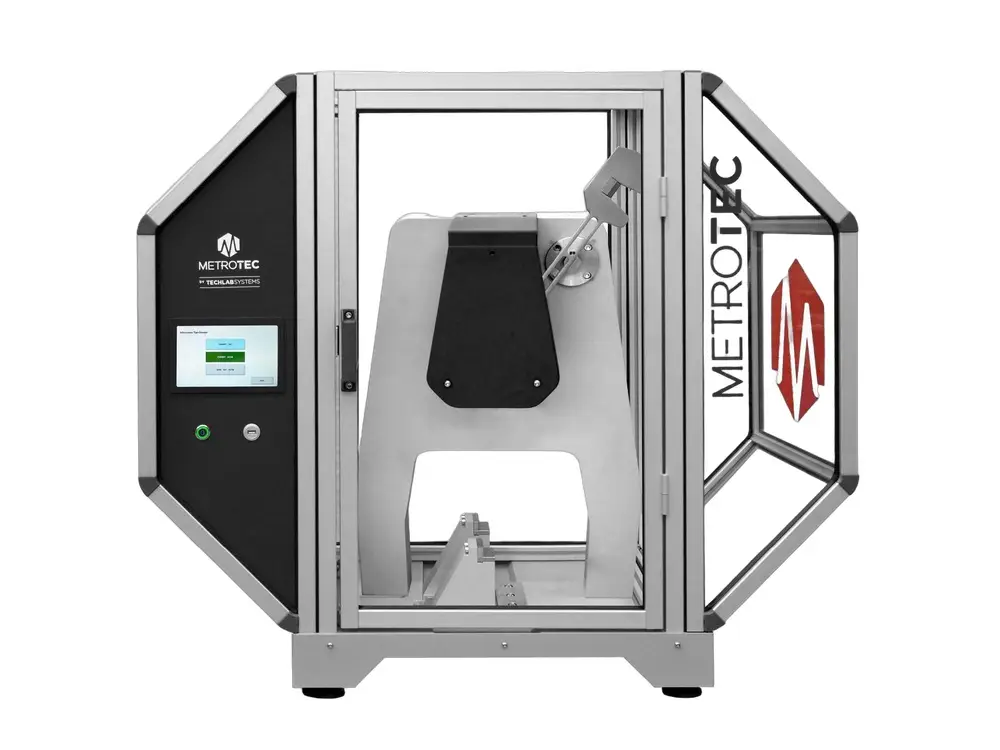

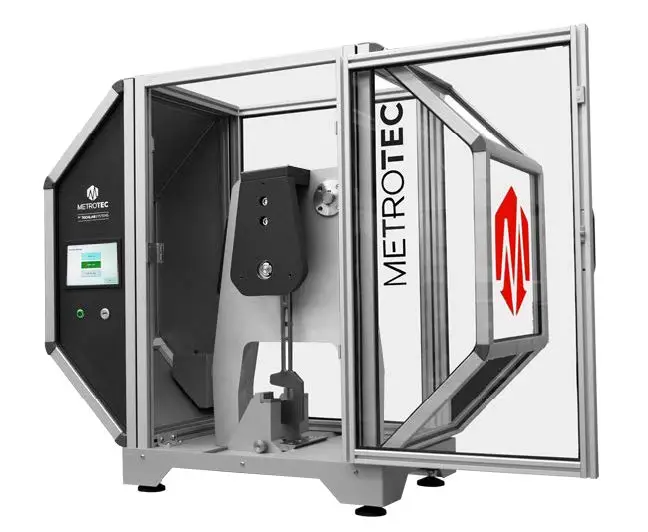

The PIT-25 is an axial impact resistance test instrument for standardised specimens of rigid plastics, composites, ceramics and similar materials, covering a range of 0.5 to 25 Joules according to the Charpy and Izod methods. The equipment consists of a robust tabletop frame with a polycarbonate cabin protecting the loading and unloading operations.

Charpy and Izod methods differ in specimen support: Charpy supports the specimen on both ends, while Izod holds it on one side only. Because these methods differ significantly, results cannot be extrapolated from one to the other.

Key Features

• Impact energy range: 0–25 Joules.
• Digital touchscreen display with self-adjusting hammer functions and friction-loss compensation.
• Polycarbonate test area protection screen with electric door lock, complying with 89/392/EEC.

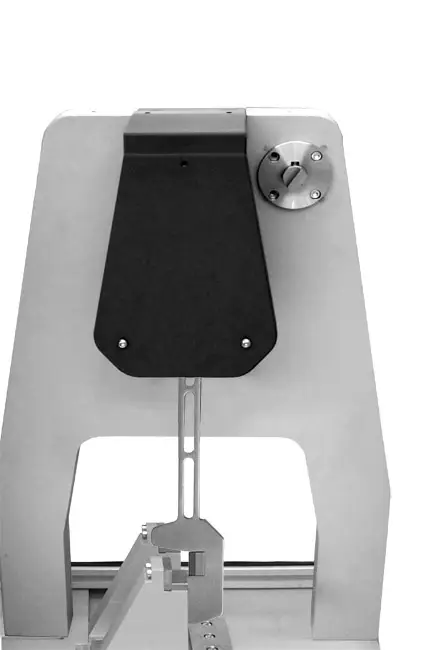

• Automatic brake to stop hammer oscillation after each test.
• RJ-45 Ethernet and USB connectivity for data storage and PC connection.

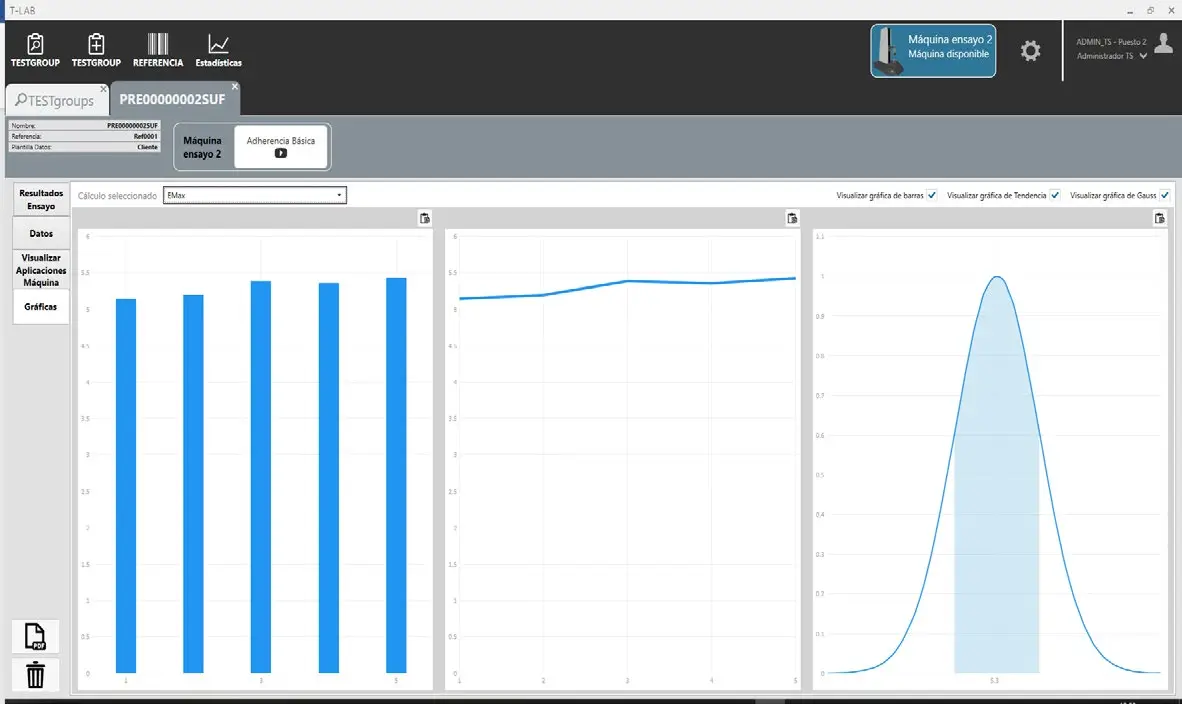

• Compatible with the T-LAB Test Management System.

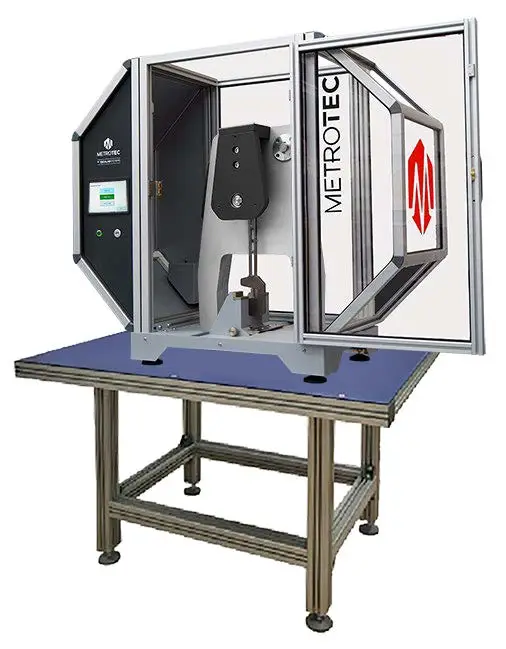

• Optional metal base adaptable for ISO compliance when using hammers >15 Joules.

Applications

Used to study impact resistance of plastic materials for the automotive, railroad, aeronautics, medical, prosthesis, toy and computer sectors, determining the energy released when a standardised specimen fractures under a calibrated hammer impact.

Talk to the Techotrix team to find out whether the PIT-25 is the right impact tester for your material testing needs.
