CIDG-1
Can Internal Diameter Gauge
The CIDG-1 Can Internal Diameter Gauge quickly checks the internal diameter of necked-in cans, compatible with both 2-piece and 3-piece cans. Delivering 0.01mm resolution and ±0.01mm accuracy, calibration blocks are supplied for each specific diameter.
Can Internal Diameter Gauge

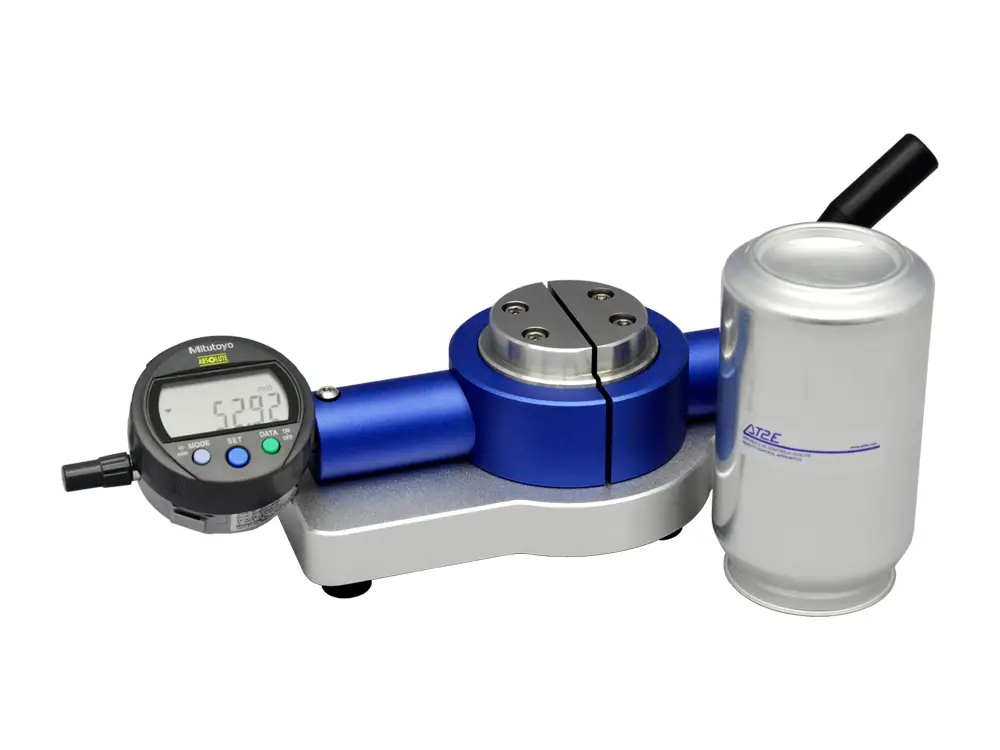

The CIDG-1 Can Internal Diameter Gauge is designed for accurately measuring the internal diameter of necked-in cans. It’s an essential tool for quality control in can manufacturing, ensuring measurements are consistent and reliable. For each diameter, a corresponding calibration block is supplied along with the gauge.

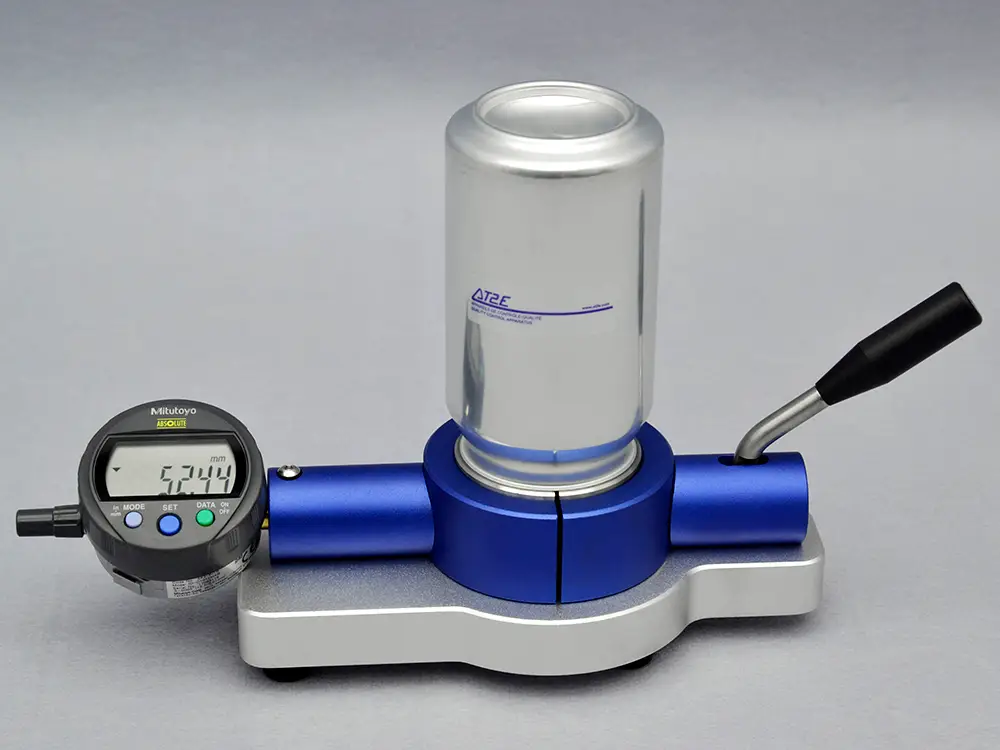

Used to measure the internal diameter of can bodies, the CIDG-1’s reliable design allows even inexperienced operators to perform measurements accurately. The can body is aligned vertically, making the measurement results more reliable.
Key Features
- Resolution: 0.01mm. Accuracy: ±0.01mm.

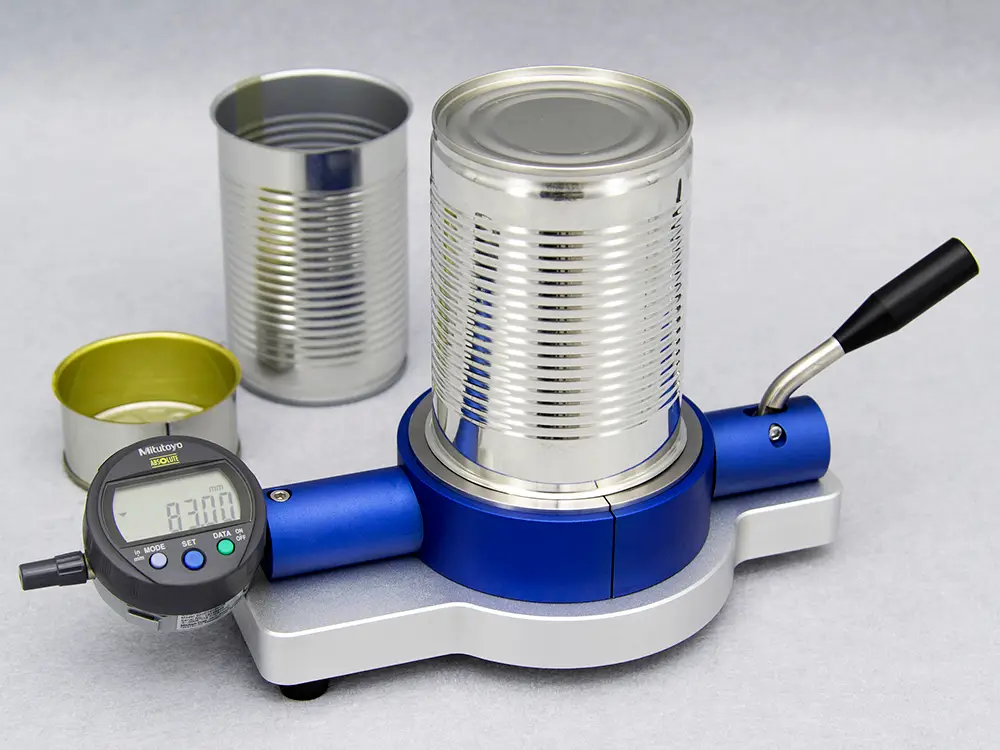

- Compatible with both 2-piece and 3-piece cans.

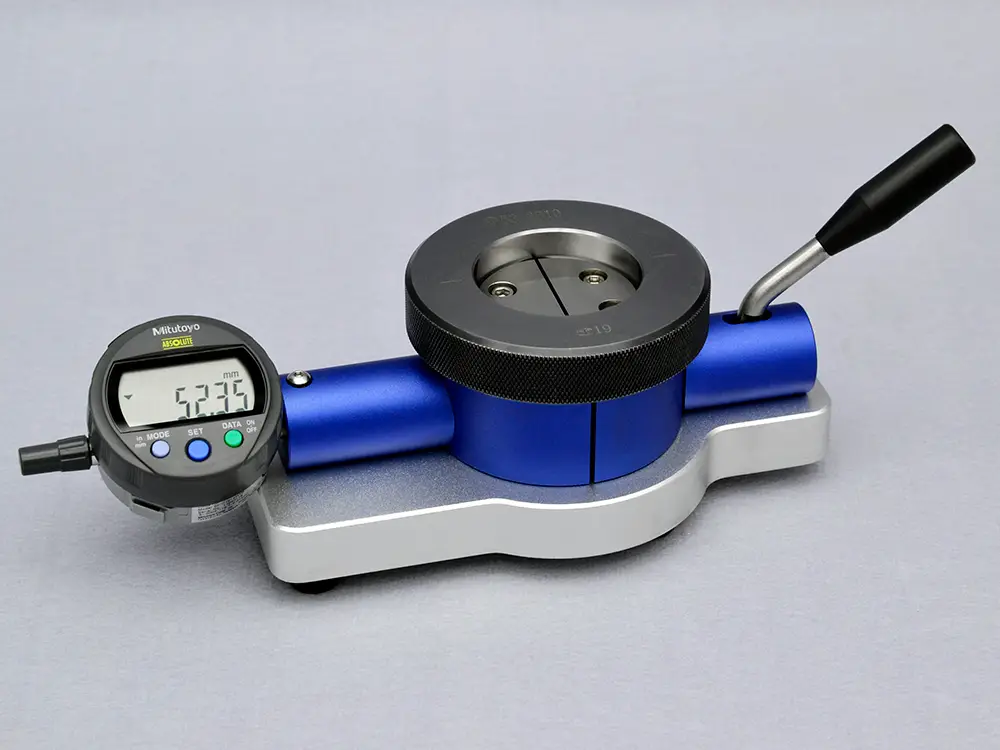

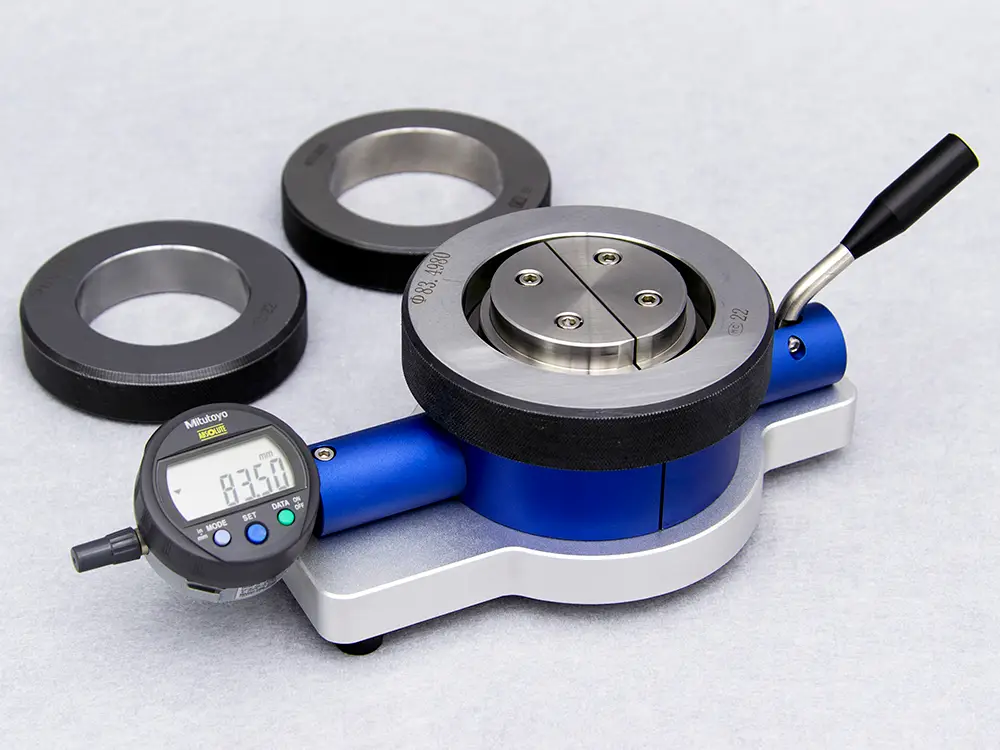

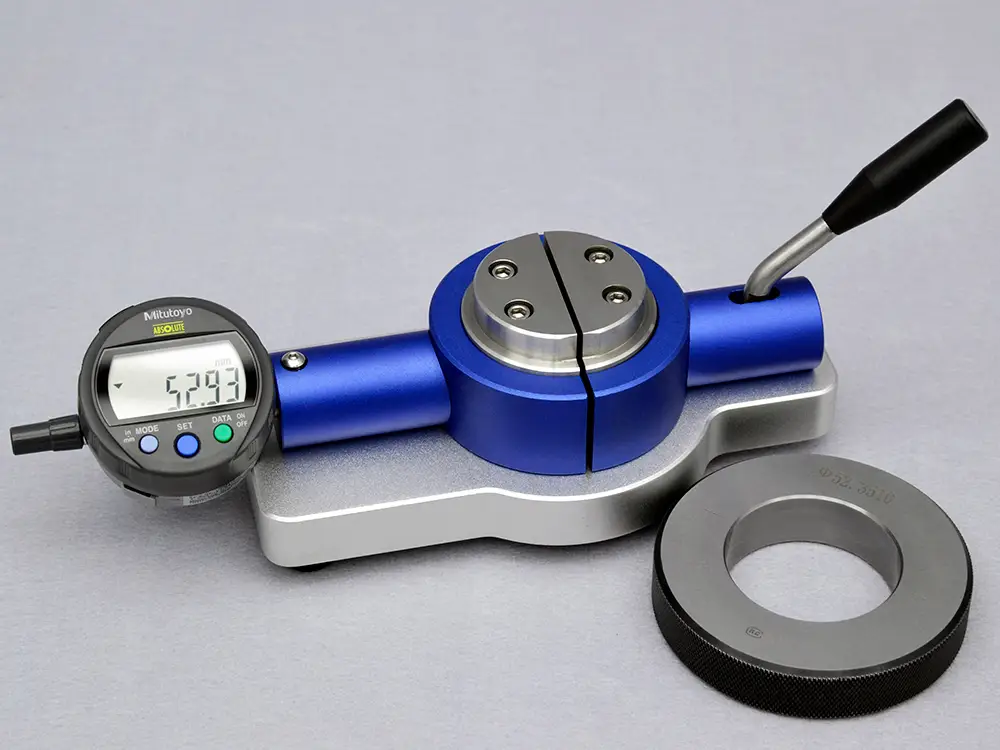

- Calibration blocks provided for each specific diameter.

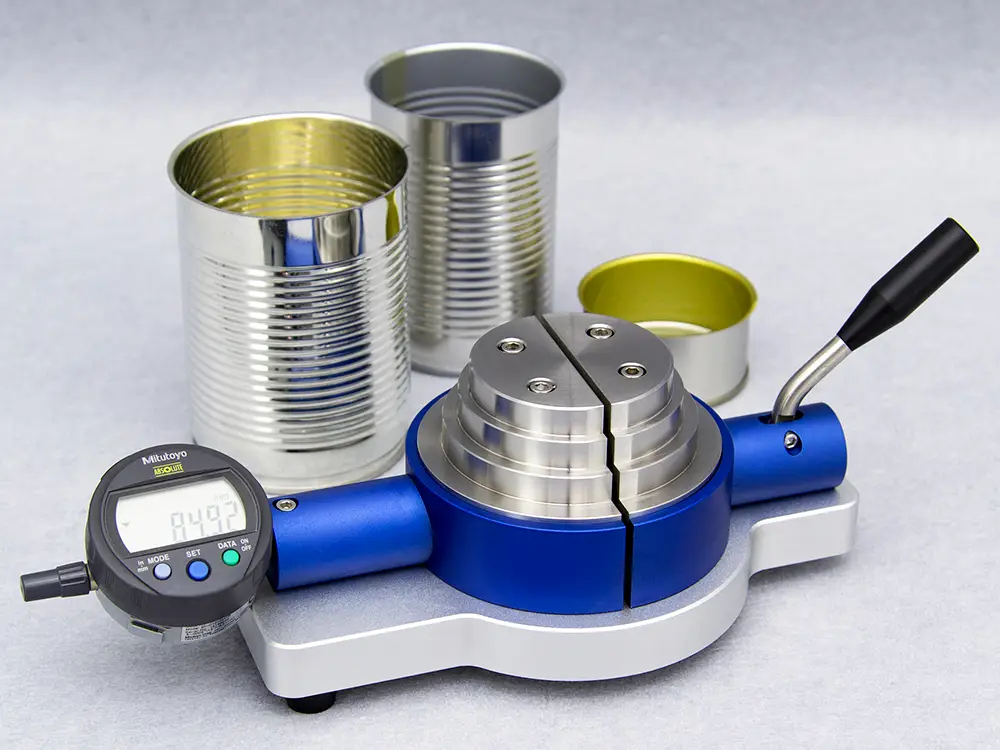

- Custom-made to fit various can sizes on request.

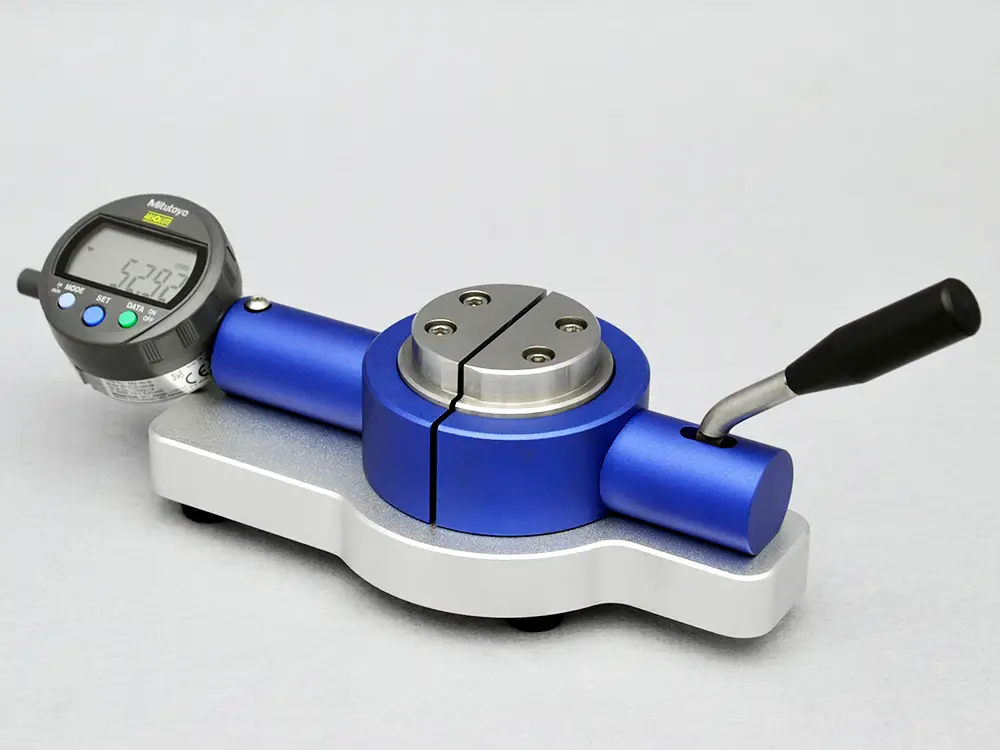

- Compact, lightweight construction for easy handling.
- Durable, user-friendly design.
Applications
Essential for can manufacturing quality control, quickly verifying that the internal diameter of necked-in cans falls within specification.
Talk to the Techotrix team to find out whether the CIDG-1 is the right internal diameter gauge for your can quality control.
| Sample Range | 2-piece and 3-piece cans |
| Resolution | 0.01mm |
| Accuracy | ±0.01mm |
| Dimensions | 282(L) x 120(W) x 90(H)mm |
| Net Weight | 5kg (including calibration rings) |

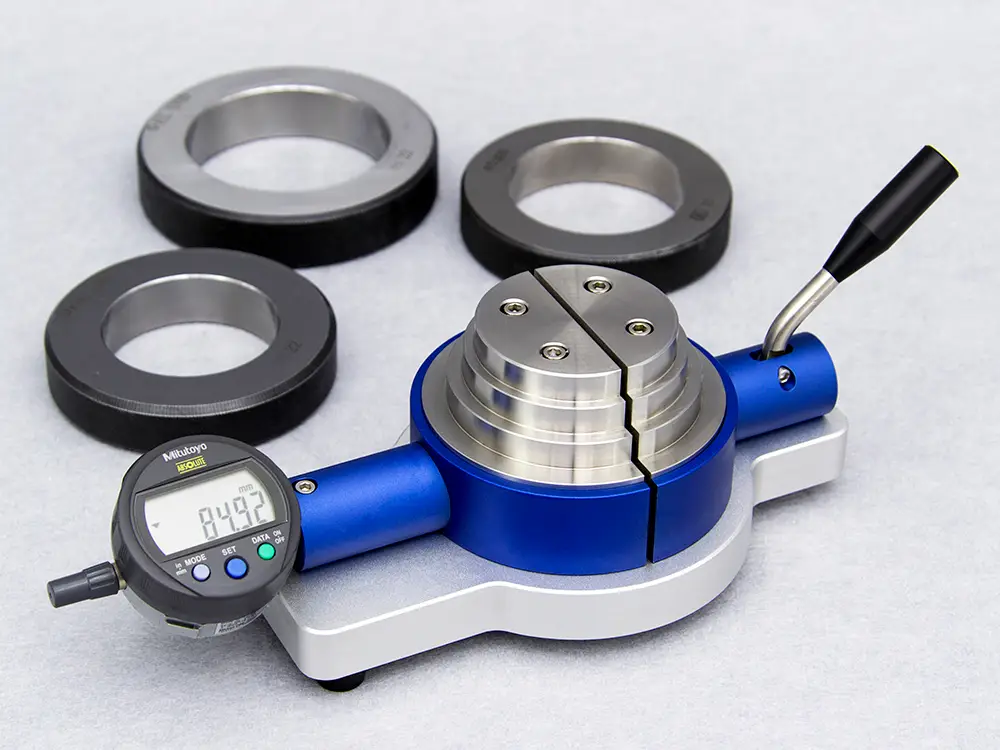

Calibration blocks provided for each specific diameter; can be custom made to be compatible with different can sizes in one gauge.
Contact the Techotrix team to confirm the right CIDG-1 configuration for your can diameter range.
