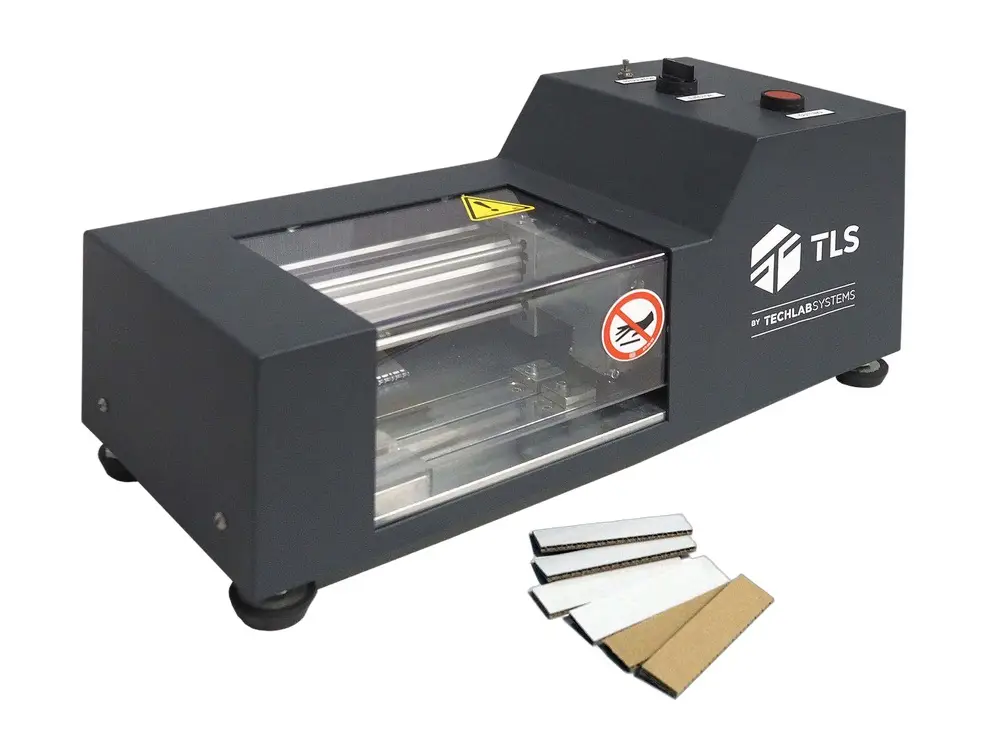

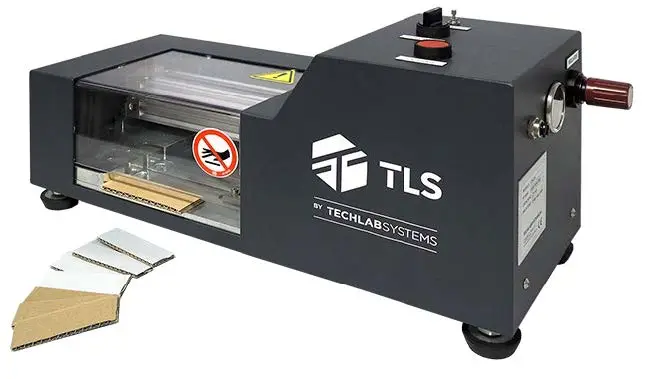

CN Series Pneumatic ECT Cutter
Pneumatic ECT Sample Cutter
The CN Series Pneumatic ECT Cutter provides precision cutting of corrugated cardboard samples for ECT compression testing on the Samples Crush Tester, with cutting widths of 25, 31.8, 38.1 or 50.8mm depending on model. Its robust pneumatic design includes automatic sample expulsion for fast, accurate specimen preparation.
Pneumatic ECT Sample Cutter
Pneumatic sample cutter for precision cutting of corrugated cardboard samples for ECT compression testing on the Samples Crush Tester. A robust, easy-to-use design with an integrated sample expulsion system after each cut.
Key Features
- Pneumatic cutting system.
- Sample cutting width: 25 / 31.8 / 38.1 / 50.8mm (depending on model).
- Maximum sample thickness: 15mm.
- Air regulator (6–8 bar).
- Robust design, easy to use.
- Includes sample expulsion system after cutting.
Applications
Essential for preparing accurate, repeatable corrugated board and board packaging samples ahead of ECT compression testing. Meets APPITA/AS 1301.430s, APPITA/AS 1301.444s, DIN 3037:2007-06, FEFCO 8, FEFCO 11, ISO 3037, ISO 13821, SCAN P33, TAPPI T811/T821/T823/T838/T839.
Talk to the Techotrix team to find out whether the CN Series is the right sample cutter for your ECT testing.
| Cutting Widths | 25 / 31.8 / 38.1 / 50.8mm (model dependent) |
| Max Sample Thickness | 15mm |
| Air Supply | 6–8 bar |
| Standards | ISO 3037, ISO 13821, TAPPI T811/T821/T823/T838/T839, FEFCO 8/11, SCAN P33 |
Multiple cutting-width models available — select the width matching your required ECT test standard.
Contact the Techotrix team to confirm the right CN Series cutter width for your test standard.
