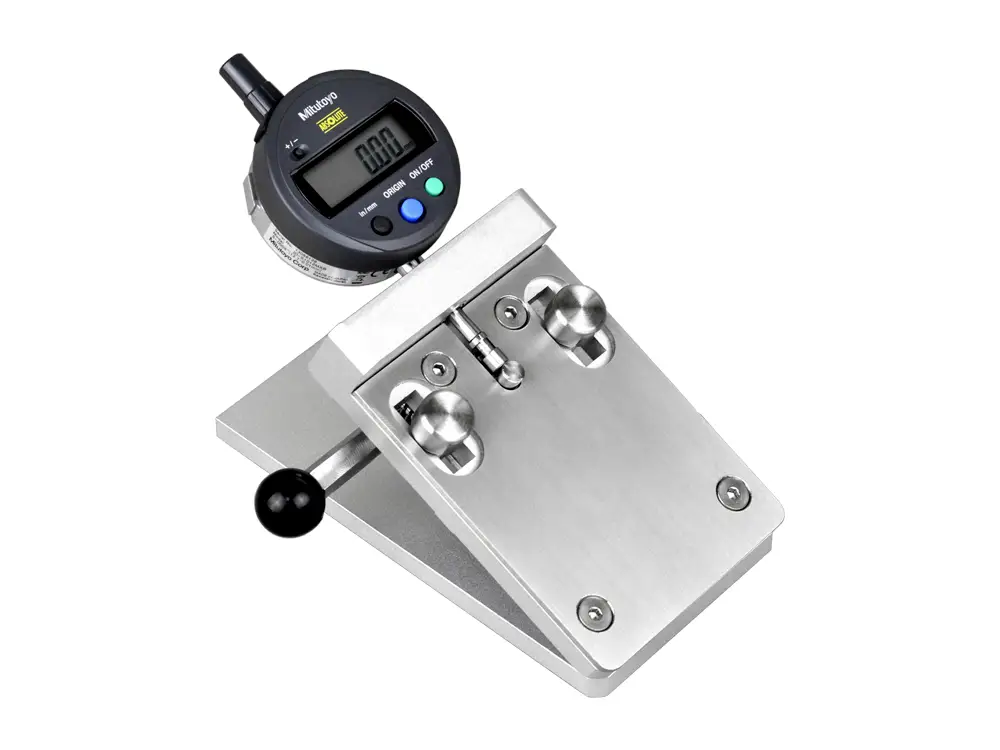

FWG-1
Flange Width Gauge for Aluminium Cans
The FWG-1 Flange Width Gauge measures the flange width of empty aluminium cans, covering 0-5mm with ±0.01mm accuracy. Compatible with 2-piece and 3-piece cans from 50 to 90mm diameter, it connects to SPC systems or AT2E SeamCheck software for automated data logging.
Flange Width Gauge for Aluminium Cans

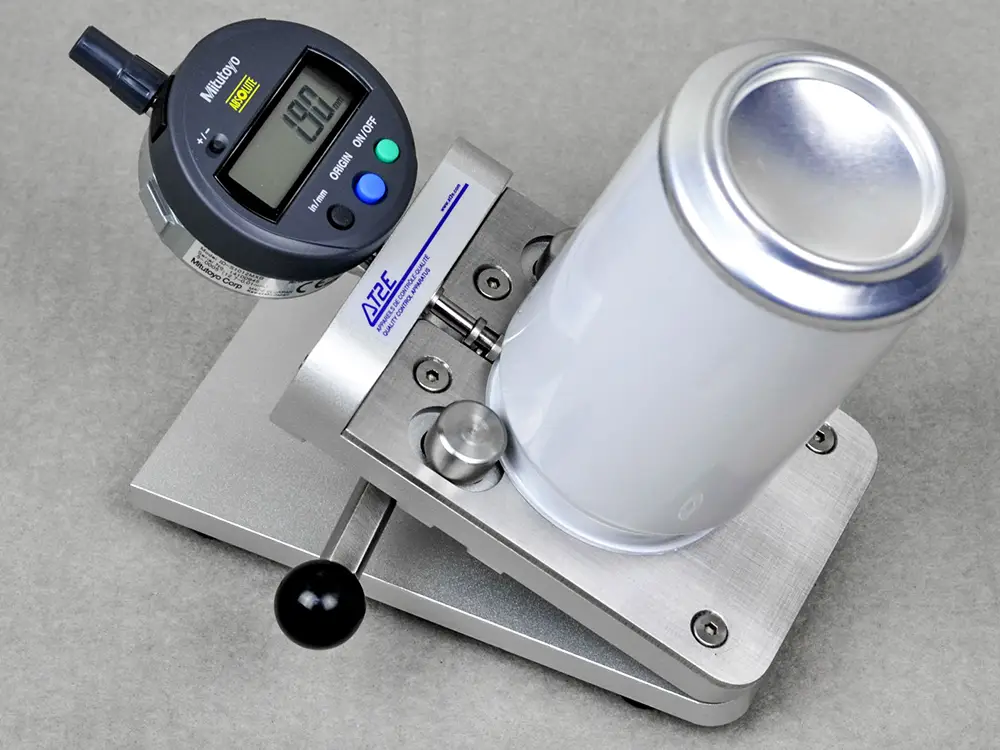

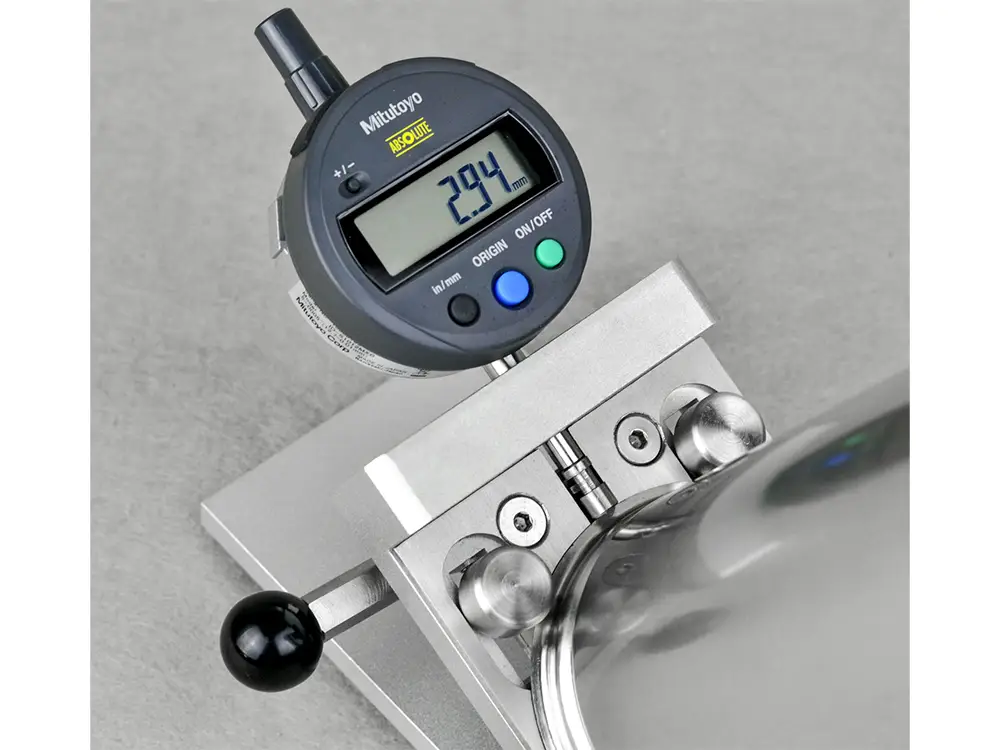

The FWG-1 Flange Width Gauge is used to measure the flange width of empty cans. Its easy-operation design offers fast, accurate measurement of flange width, essential for quality control in can manufacturing processes.
To avoid manual recording errors, the FWG-1 can connect to an SPC system or AT2E’s SeamCheck software via the DTB-1 Data Transporting Box and cable, enabling seamless data transfer and analysis.
Key Features
- Fast, accurate flange width measurement.
- Compatible with both 2-piece and 3-piece aluminium cans.

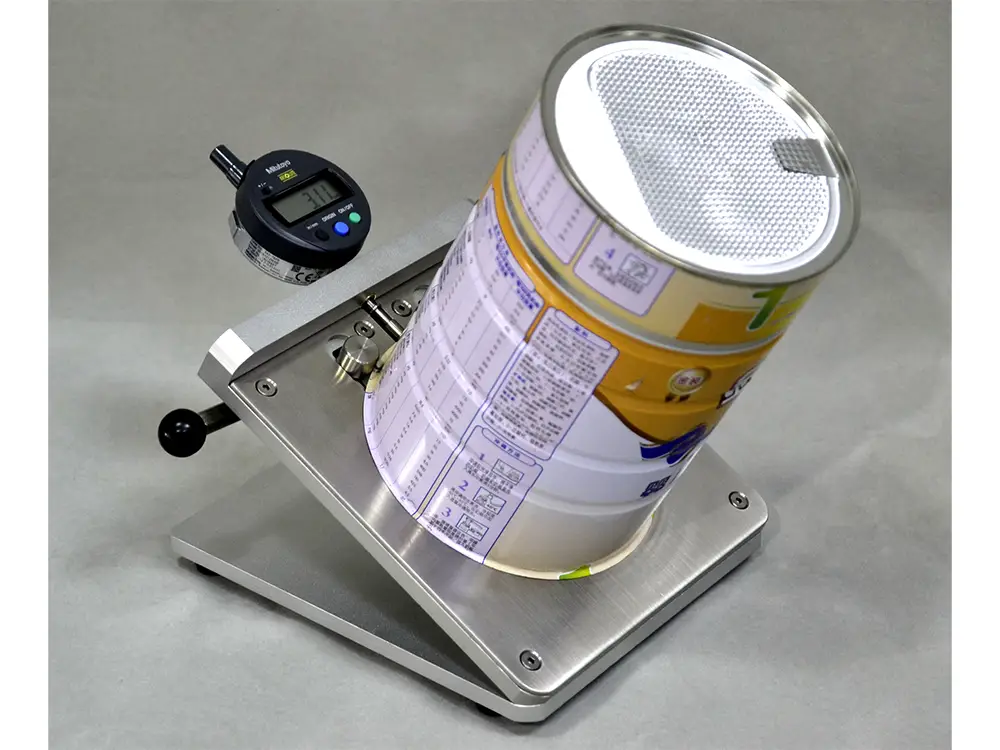

- Sample capacity from 50mm to 90mm can diameter (bigger sizes available to order).
- Durable construction for long-lasting use.
- Integrated data management capability via DTB-1 Data Transporting Box.
Applications
Essential for can manufacturing quality control, ensuring flange width consistently meets production specifications for reliable seaming.
Talk to the Techotrix team to find out whether the FWG-1 is the right flange width gauge for your line.
| Measuring Range | 0–5mm |
| Resolution | 0.01mm |
| Accuracy | ± 0.01mm |
| Sample Range | 2-piece and 3-piece cans |
| Sample Capacity | 50mm to 90mm diameter (bigger to order) |
| Overall Size | 180 x 103 x 108mm |
| Net Weight | 1kg |
DTB-1 Data Transporting Box (recommended): Connects the FWG-1 to your SPC system or AT2E SeamCheck software for automated data transfer.
Contact the Techotrix team to select the right FWG-1 configuration for your can flange measurement requirements.
