Newton Optics 3
Optical Fill Level and Cap Control
The miho Newton Optics 3 is an optical inspection device checking fill level and cap correctness after the filler and seamer, with precise control even for foaming products such as wheat beer. Multi-optical axes (offset 90°/270°) capture up to 6 images per bottle for evaluation.
Optical Fill Level and Cap Control

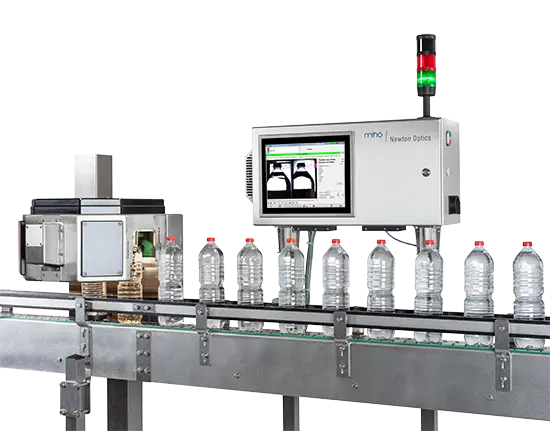

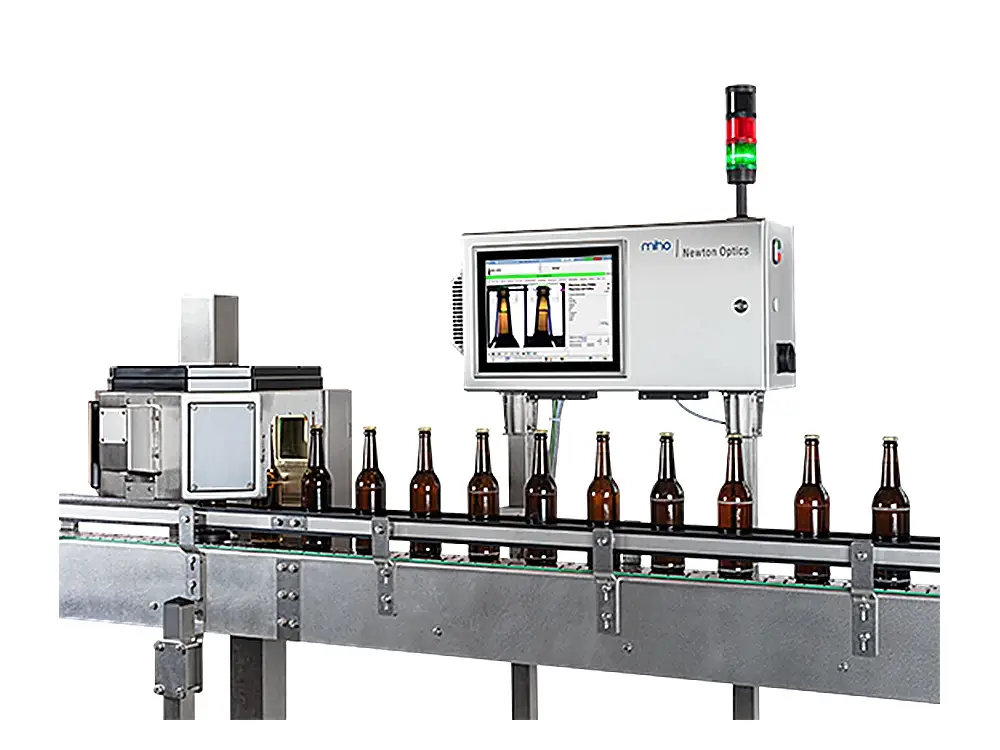

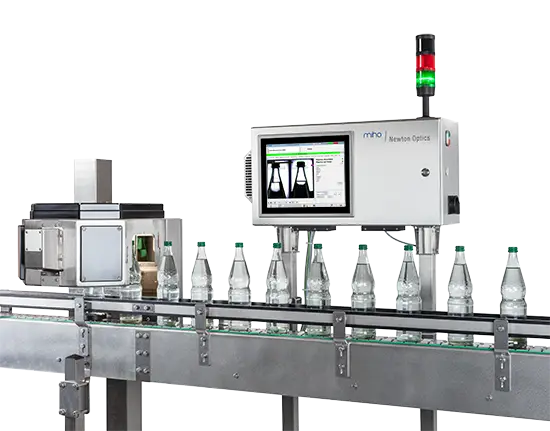

The miho Newton Optics 3 is an optical inspection device installed after the filler and seamer to check for correct fill level and closure — catching slanted or not-rolled-on caps. It provides precise control of the fill level even with foaming products such as wheat beer, measuring for any underfilling or overfilling while inspecting the cap using the optical method.

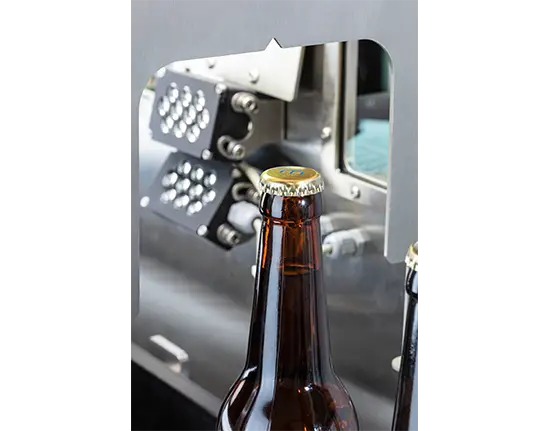

State-of-the-art camera and lighting technology uses multi-optical axes, offset by 90° and 270° coverage, with variable lighting. Up to six images per bottle can be created and evaluated according to many different criteria by the miho VIDIOS® image processing system.
Key Features
- Precision fill level measurement.
- Date/cap detection.
- Very solid, low-maintenance construction.

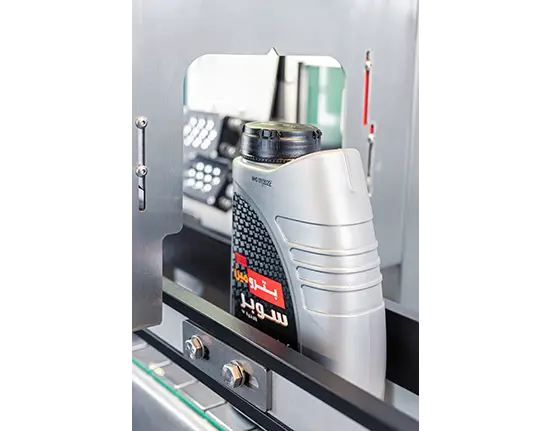

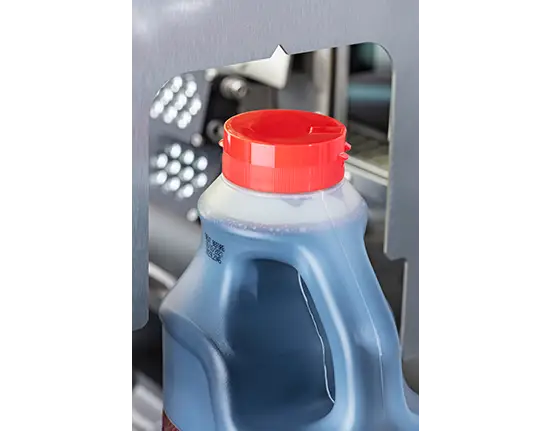

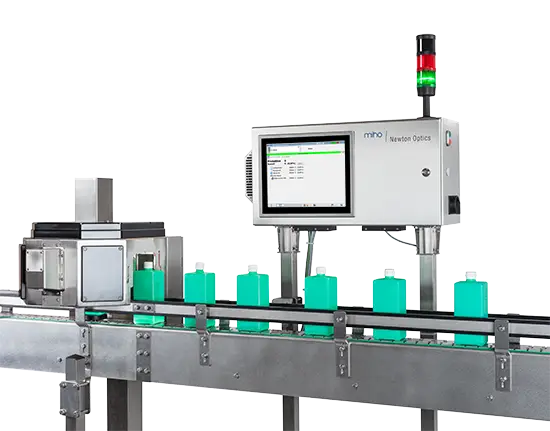

- Suitable for glass, PET or plastic containers (food or homecare).
- Multi-optical axes camera system (90°/270° coverage) with variable lighting.
- Handwheel height adjustment for the inspection head.

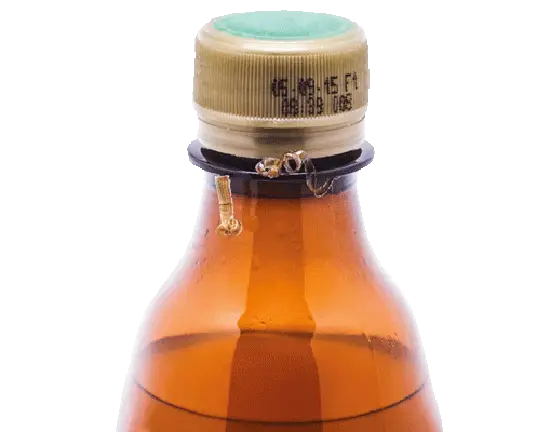

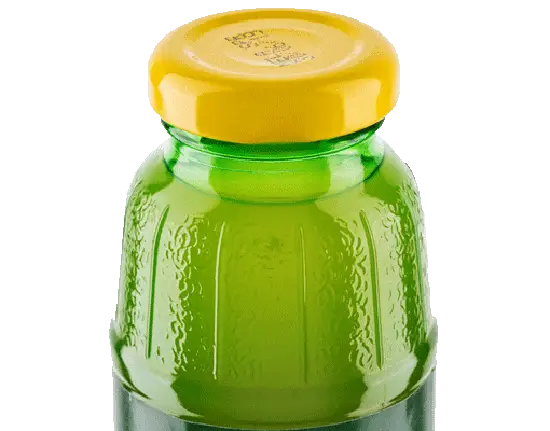

- Cap control: colour, correctness, slant cap, date code, lot number.

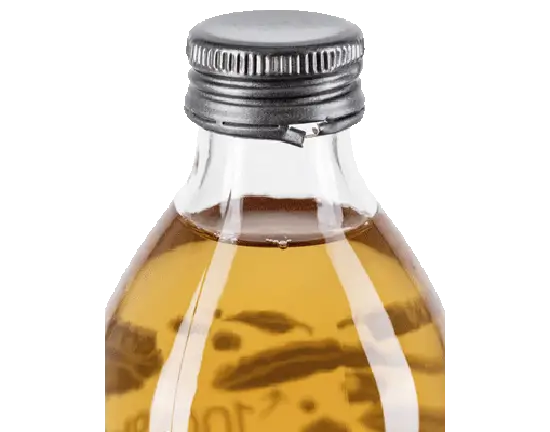

- Roll-on check of metal screw caps.
- Control of direct print on the bottle neck.
Applications
Ideal for beverage lines needing precise, camera-based fill level and cap verification at the filler outfeed — including challenging foaming products.
Talk to the Techotrix team to find out whether the miho Newton Optics 3 is the right fill level and cap control solution for your line.
| Inspection Method | Optical (multi-axis camera) |
| Camera Coverage | Multi-optical axes, offset 90°/270° |
| Images per Bottle | Up to 6 |
| Platform | miho VIDIOS® |
| Compatible Containers | Glass, PET, plastic (food/homecare) |
| Adjustment | Handwheel height adjustment |
| Placement | Typically at filler outfeed |
Optional accessories for the Newton Optics 3:
- Remote Extension Module: Connects the inspection head to the evaluation unit when distance exceeds 5 metres.
- Re-Cooler Water Detection: Additional light barrier sensor for bottles that have drawn in water after the re-cooler.
- miho AWeS Software Package: Production data acquisition to the Weihenstephan standard.
Contact the Techotrix team to confirm the right Newton Optics 3 configuration for your line.
