PPG-A or D
Preform Perpendicularity Gauge
The PPG-A / PPG-D Preform Perpendicularity Gauge measures the perpendicularity (deviation) of PET preforms, standard equipment for PET and beverage industries. Its specially designed changeable clamping part with high-accuracy three-jaw chuck ensures accurate measurement across different preform sizes.
Preform Perpendicularity Gauge
The PPG-A and PPG-D are used to measure the perpendicularity (deviation) of the preform, standard equipment for PET and beverage industries. With a specially designed changing and clamping part and high-accuracy three-jaw chuck, it ensures accurate measurement of different sizes of preform.
The clamping support and calibration bar are tailored to match the diameter of each preform’s opening, ensuring precise measurements.
Key Features
- Resolution: 0.01mm.
- Changeable clamping part for different preform sizes.
- High-accuracy three-jaw chuck.
- Additional clamping supports available for various preform diameters and sizes.
- Customisable sample range based on order.
Applications
Essential for PET preform manufacturers needing to verify perpendicularity meets production standards before preforms are blown into finished bottles.
Please provide detailed preform specifications when ordering to ensure compatibility with the correct clamping support and calibration bar.
Talk to the Techotrix team to find out whether the PPG-A or PPG-D is the right perpendicularity gauge for your preform quality control.
| Sample Range | Customisable to order (typical: finish outer diameter 2-38mm, preform body diameter 0-45mm, length up to 300mm) |
| Resolution | 0.01mm |
| Dimensions | 300(L) x 250(W) x 450(H)mm |
| Net Weight | 15kg |

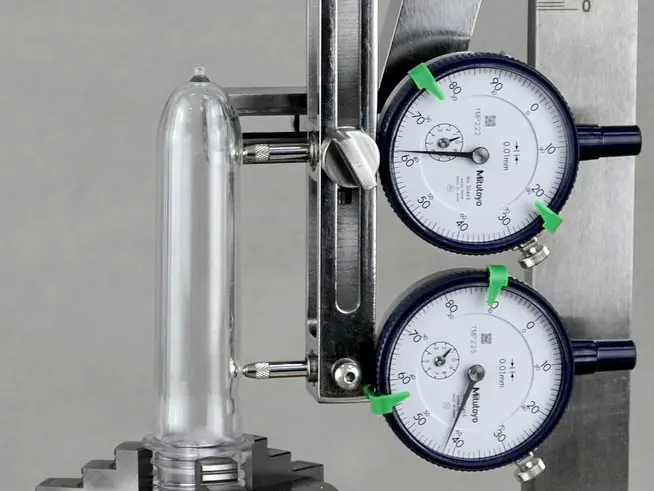

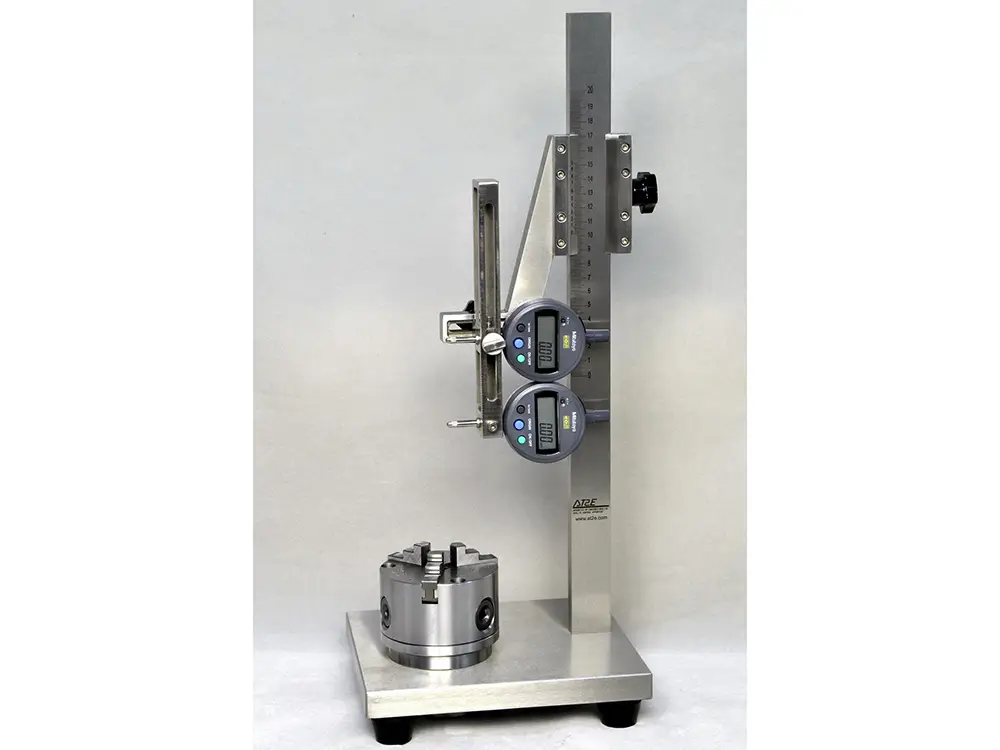

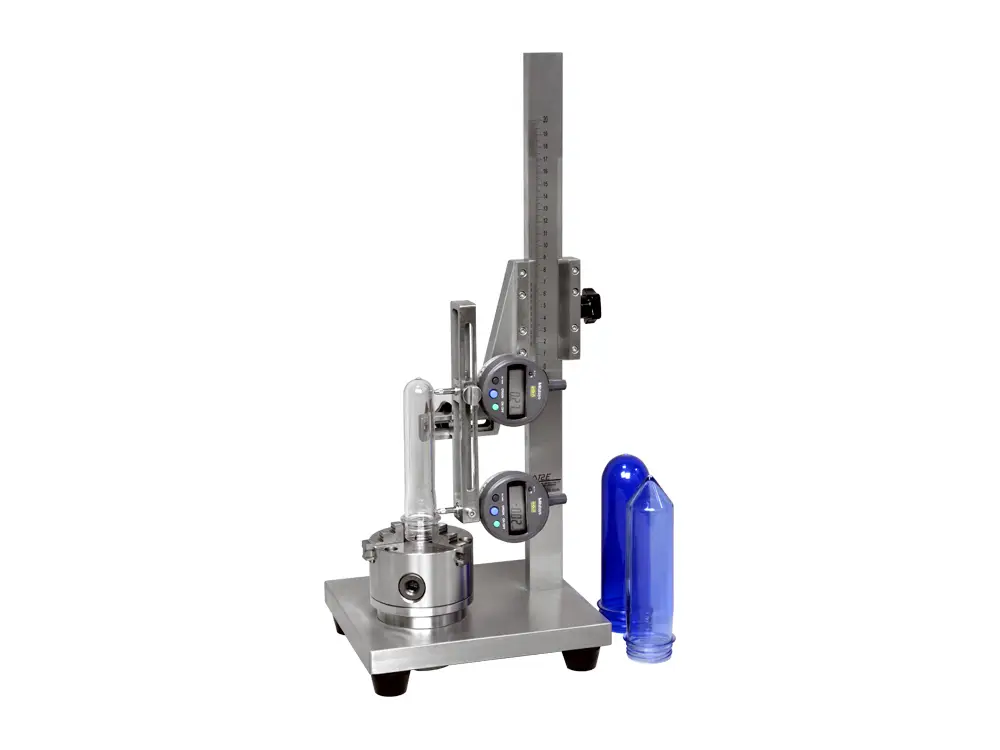

Available in analog (PPG-A) or digital (PPG-D) versions. Additional clamping supports available for various preform diameters and sizes — specify your preform specifications when ordering.
Contact the Techotrix team to select the right PPG model and clamping configuration for your preform.
