David 2
High-End Empty Bottle Inspector

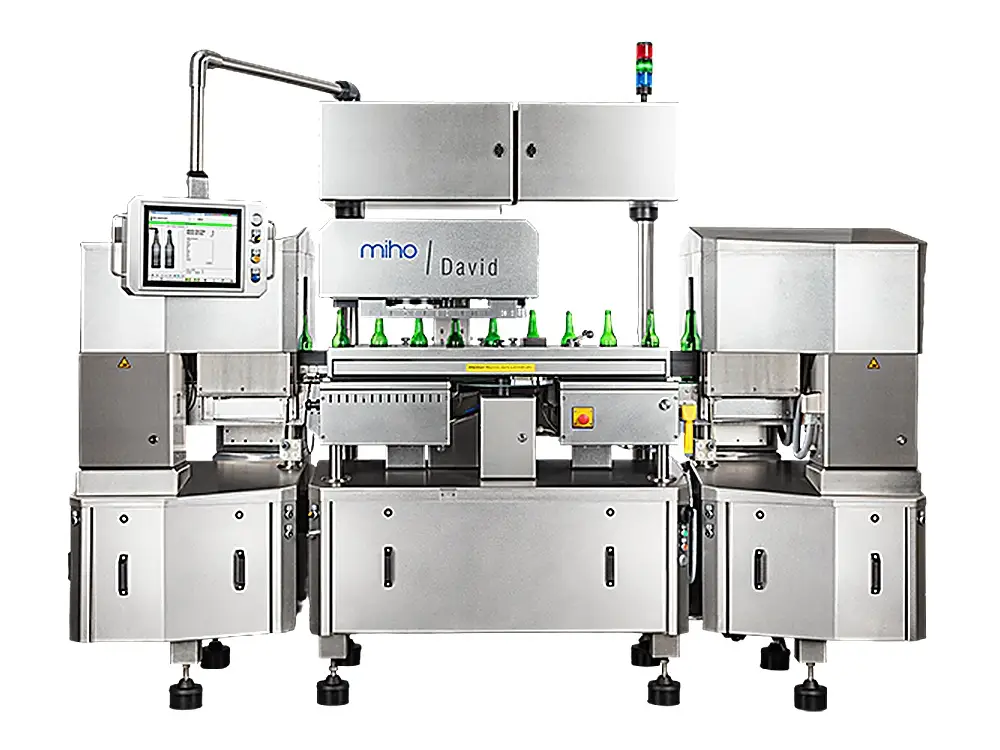

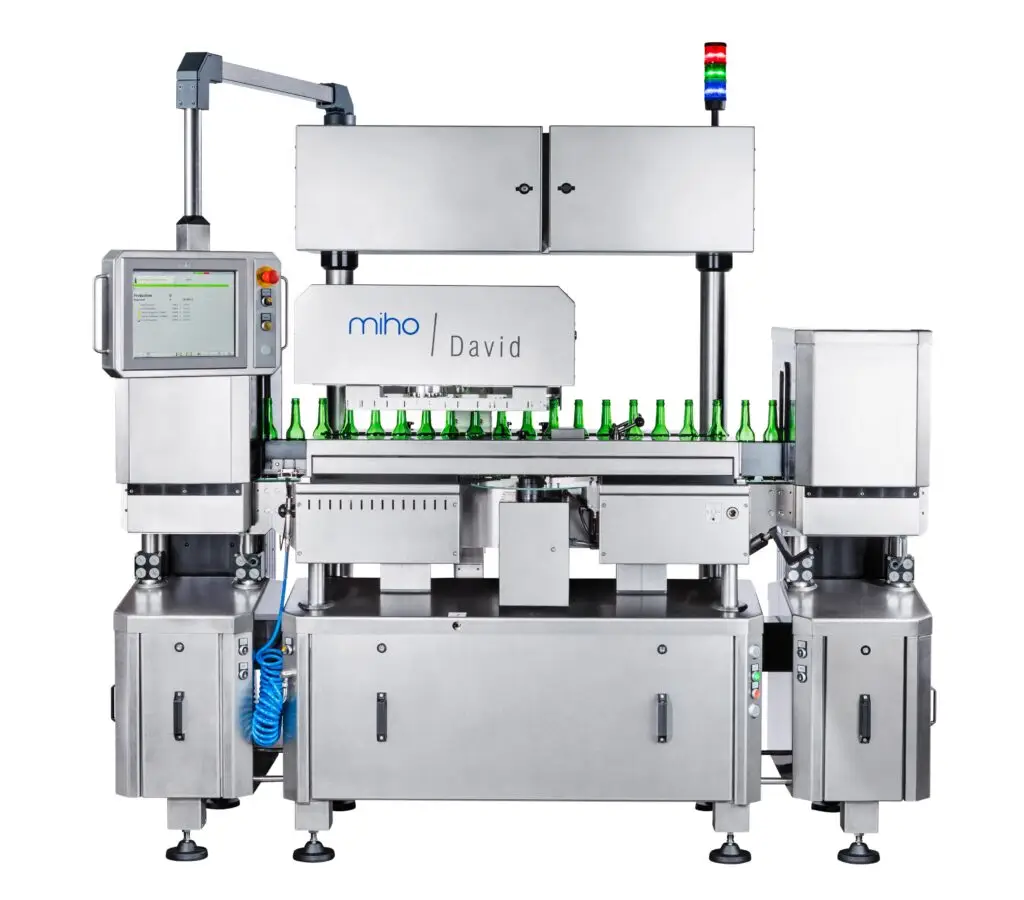

The miho David 2 is a high-end empty bottle inspector installed over 1,000 times worldwide, handling up to 72,000 bottles/hour. It provides complete inspection of returnable or non-returnable, glass or PET bottles between the washer and filler — base, finish, thread, sidewall and residual liquid — on the miho VIDIOS® platform.
High-End Empty Bottle Inspector
The miho David 2 is an empty bottle inspector for the beverage industry, providing complete inspection of the empty bottle before filling — whether returnable or non-returnable, glass or PET. It covers complete inspection of empty bottles after the washer and before the filler: base, finish, thread, sidewall and more, individually configurable to your line’s requirements.
Built with a consistently sophisticated modular basic design, the David 2 takes a leading position among inspectors thanks to continued innovation. Its innovative thread inspection detects even the smallest, previously undetectable faults, while the miho AIM base inspection self-monitoring module provides a final security measure for accurate test results.
Key Features
- State-of-the-art real-time image processing on the miho VIDIOS® platform.
- Up to 72,000 bottles per hour.
- Installed more than 1,000 times worldwide.
- Hygienic design.
- Innovations: miho FSI (finish side inspection), miho OpAL, miho AIM, swing-top seal inspection.
- Optimised energy efficiency.
- Optimised lighting through high-performance LEDs.
- Individually configurable inspection modules — base, finish, thread, sidewall, residual liquid.
Applications
An essential control point for monitoring critical control points (CCP) in the filling process, verifiably logging production conditions, and complying with HACCP, IFS and other risk management requirements — ensuring only sound bottles reach the filler.
Talk to the Techotrix team to find out whether the miho David 2 is the right empty bottle inspector for your line.
| Capacity | Up to 72,000 bottles/hour |
| Compatible Bottles | Glass or PET, returnable or non-returnable |
| Inspection Modules | Base, finish, thread, sidewall (inner & outer), residual liquid |
| Platform | miho VIDIOS® (real-time image processing) |
| Installations | 1,000+ worldwide |
| Design | Hygienic, energy efficient |
Optional modules and enhancements for the miho David 2:
- miho FSI (Finish Side Inspection).
- miho OpAL / miho AIM: Advanced sidewall and self-monitoring base inspection.
- Swing-Top Seal Inspection.
- 4-Camera Sidewall Package: Significantly improved detection of contamination, foil residues and damage.
- Variofocus: Automatic focus adjustment for different bottle heights.
- Uninterruptible Power Supply (UPS): Controlled shutdown on power failure.
Contact the Techotrix team to select the right David 2 configuration for your line.
