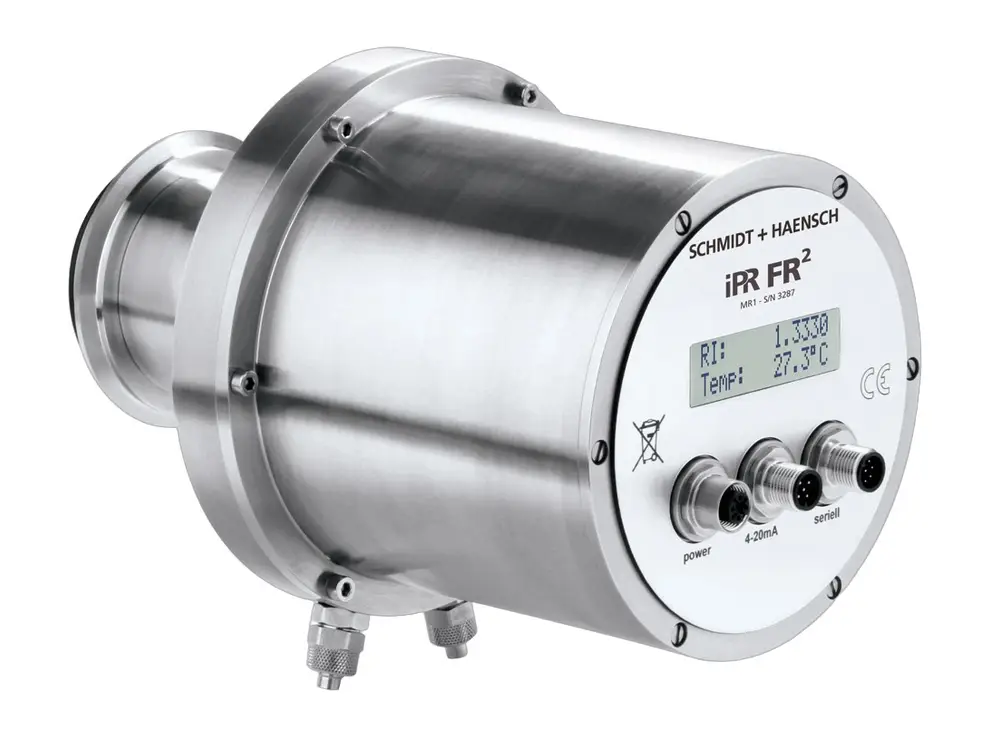

iPR FR²

Full-Range In-Line Process Refractometer

A flagship in the product portfolio, the inline Process Refractometer Full Range² is outwardly indistinguishable from the iPR HR², but its integrated optics and electronics are designed to provide a particularly wide measuring range from 1.3200 to 1.5300 RI (0-100 Brix) — without major compromises in resolution (0.01 Brix) or accuracy (±0.05 Brix). Thanks to its integrated water cooling system, measurements at process temperatures of up to 150°C are easily possible.

This process refractometer lasts in the roughest conditions while delivering precise and reliable industrial measurements. With a certified IP69K protection class tested by TÜV, it can simultaneously withstand aggressive chemicals and high temperatures.

Key Features

• Permanent real-time concentration measurement.
• Wide measuring range with broad application versatility.
• User-defined scales, freely programmable.
• Simple, certified calibration.
• Suitable for tough conditions and aggressive chemicals, sample temperatures up to 150°C.
• IP69K protection class, TÜV-certified.
• Compliant with food and beverage regulations and standards.
• Cleaning-in-place (CIP) compatible — liquid-based or ultrasonic cleaning.
• Two analog and two digital interfaces for flexible integration.

Applications

The measuring head can be installed in pipes, reactor vessels, mixing tanks, kettles, boiling pans and evaporators, using different weld-in flanges. Delivers lab quality industrial measurements for a wide range of process applications.

Talk to the Techotrix team to find out whether the iPR FR² is the right full-range process refractometer for your application.
