ODG-1

Outer Diameter Gauge

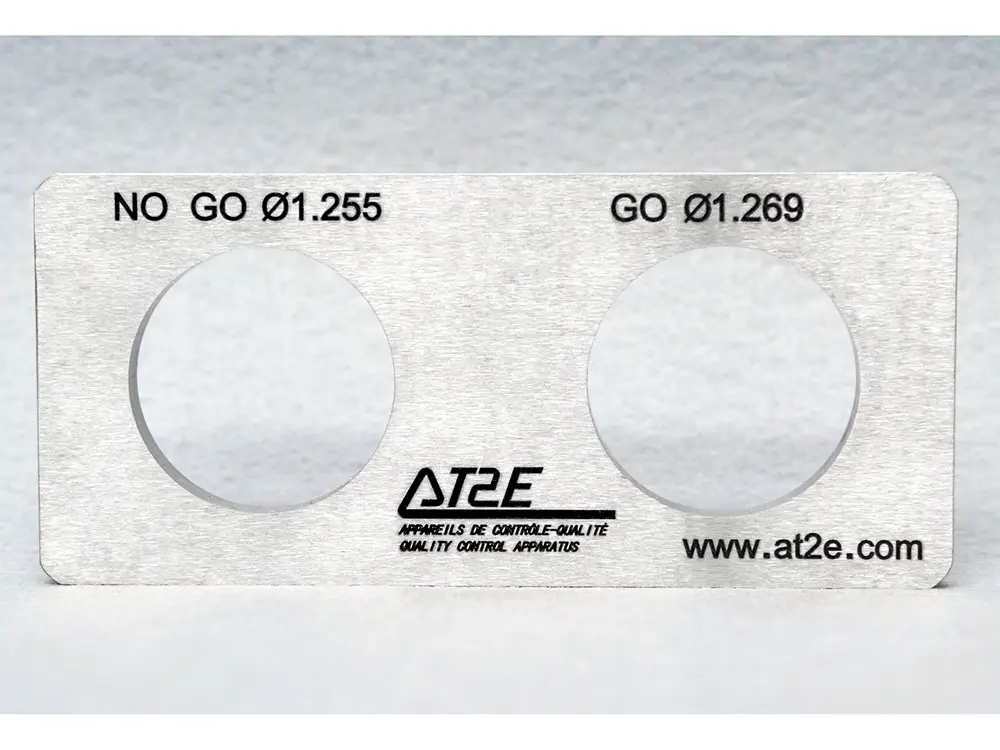

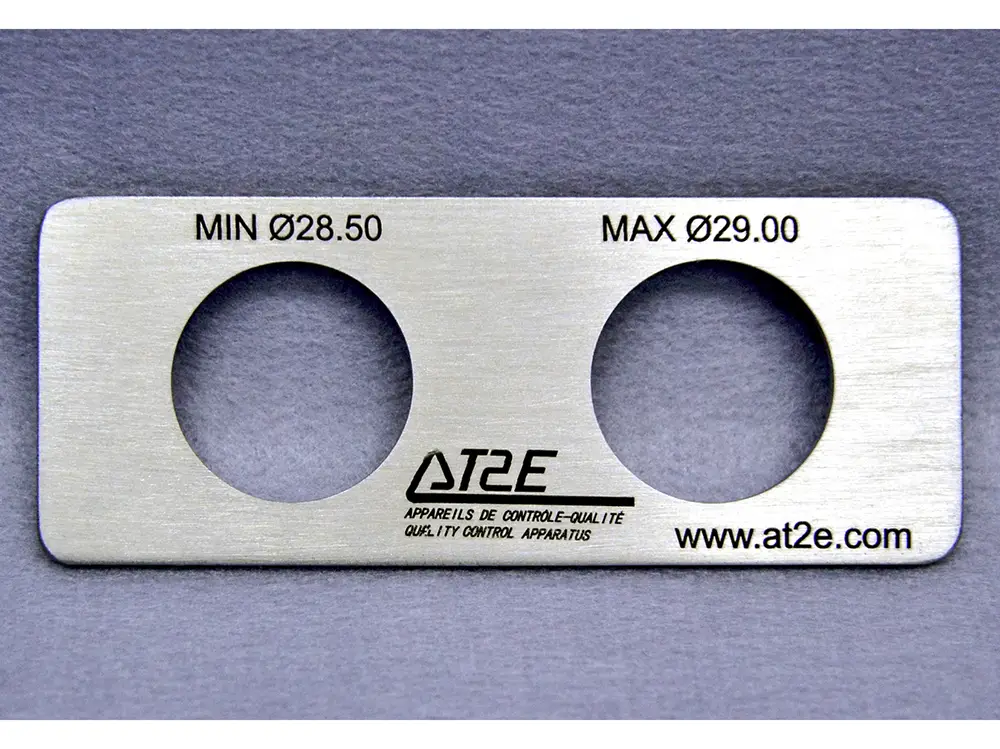

The ODG-1 Outer Diameter Gauge is a custom-made tool that quickly checks whether a bottle’s outer diameter falls within a specified range, ensuring compliance with preset standards. It provides a simple pass/fail test by allowing the bottle to pass through a larger hole while preventing it from passing through a smaller one.

The gauge works by testing whether a bottle’s outer diameter falls within a defined range. The bottle must successfully pass through the larger hole of the gauge, indicating it’s within the acceptable size, while it should not be able to pass through the smaller hole, confirming it doesn’t exceed the maximum diameter limit.

Key Features

• Simple pass/fail test.

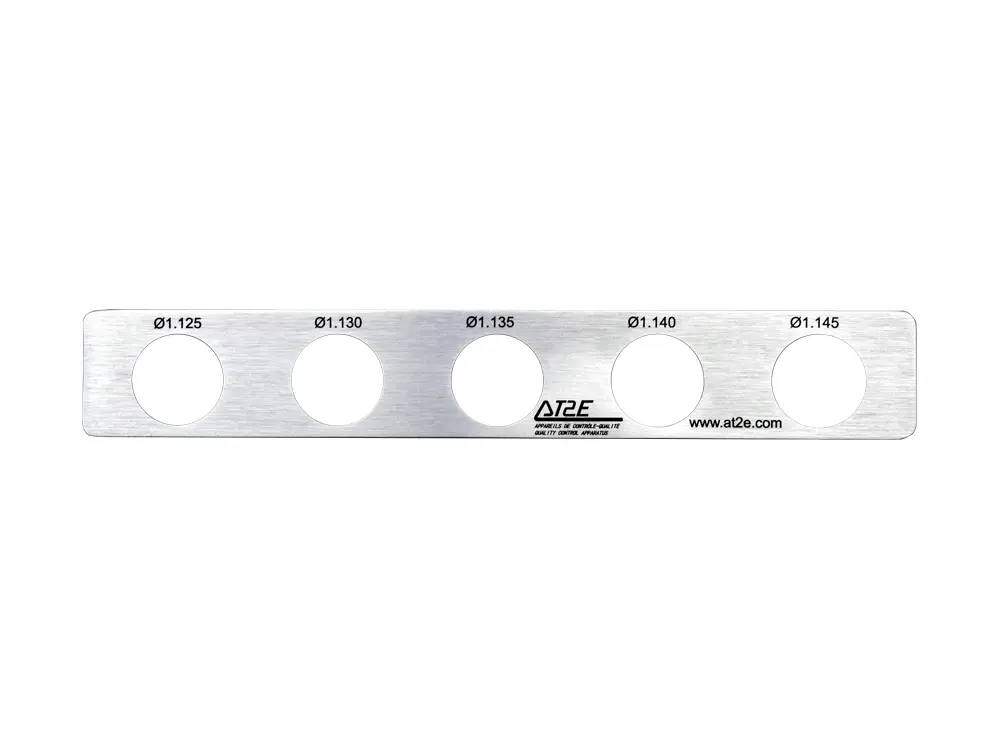

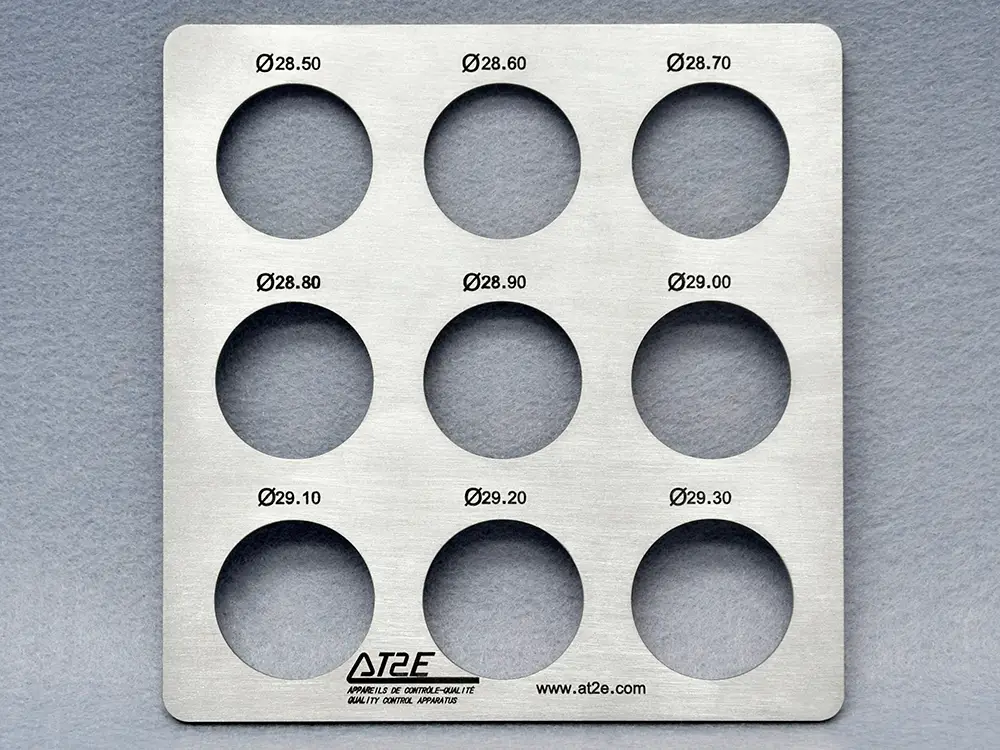

• Custom-made with any number of holes at specified diameters.
• Quick, easy-to-use design, no complex procedures or extensive training required.

Applications

Beneficial across packaging, beverage and manufacturing industries, where ensuring the correct dimensions of bottles is critical for quality control and compliance with industry standards.

Talk to the Techotrix team to confirm your diameter range and find out whether the ODG-1 is the right outer diameter gauge for your quality control needs.
