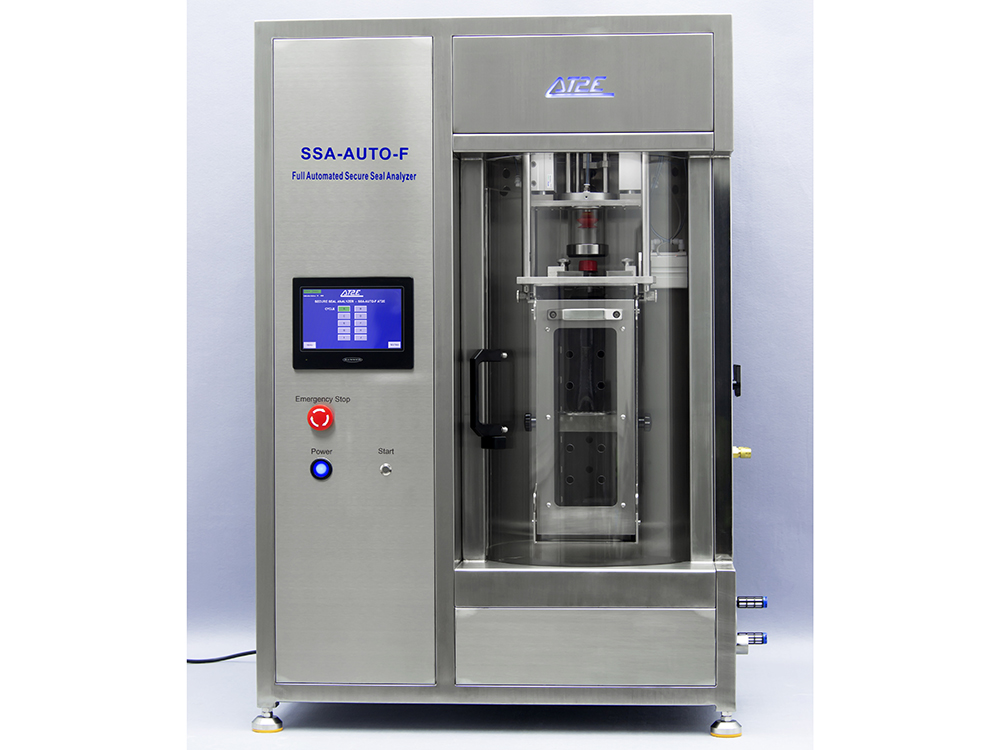

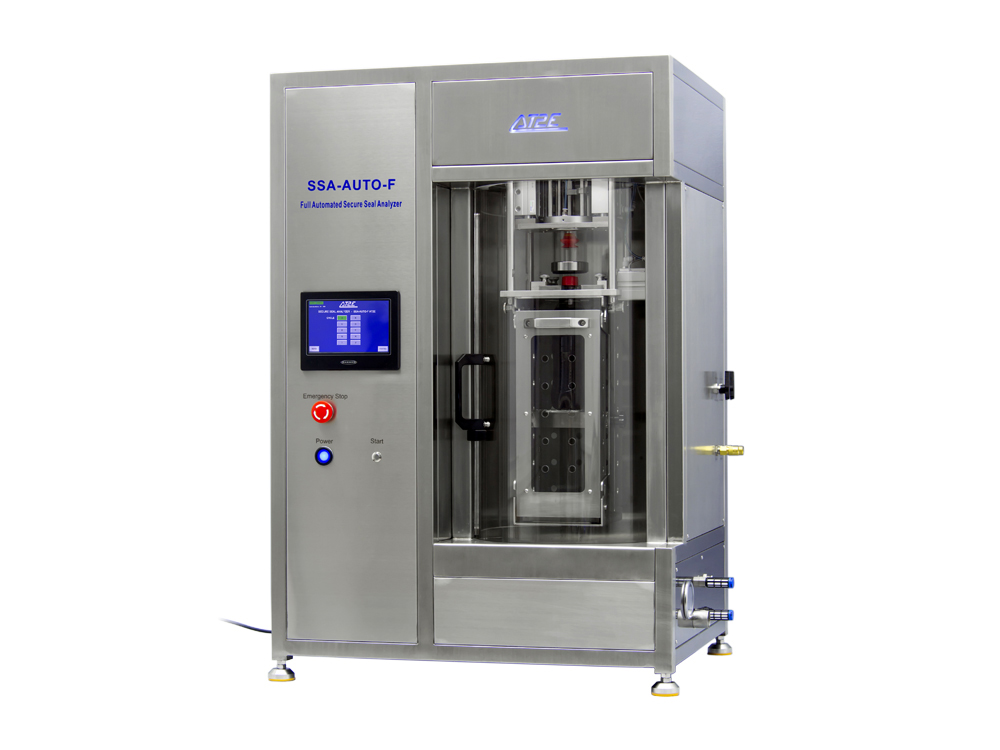

SSA-AUTO F
Automated Secure Seal Analyzer
The SSA-AUTO-F Secure Seal Analyzer is a fully automatic, water-free leak testing instrument for bottles, cans and preforms, using AT2E’s patented piercing unit. Covering 0-16.00 bar with ±0.5% accuracy, it accommodates samples up to 350mm high and 120mm in diameter.
Automated Secure Seal Analyzer
The SSA-AUTO-F Secure Seal Analyzer is an advanced leak testing instrument designed to test the integrity of bottles, cans and preforms. It’s an automated machine with automated piercing and pressurising processes, integrating AT2E’s patented needle for automated installation. Using vacuum technology and a special self-holding design, the needle secures itself onto the tested product.
Fully automatic with high-precision sensing, the SSA-AUTO-F features a water-free design that’s easier to use and maintain than traditional water bath testers. Operators simply install the sample and press a button to start the test, with results recorded automatically.
Key Features
- Fully automatic piercing and pressurisation with AT2E patented needle.
- Water-free, environmentally friendly design.
- Up to 12 stages of pressure, pressurising rate, and holding time customisation.
- Detailed testing curve review for thorough analysis.
- Stores up to 30 product profiles and 10 operator profiles, password protected.
- Real-time dynamic display of pressure/vacuum level, holding time, date and time.
- Stainless steel construction, explosion resistant, with maximum pressure overload protection.
- RS232 output for software connectivity.
Applications
Ideal for high-precision leak testing of bottles, cans and preforms in regulated production environments needing minimal operator intervention and reliable, accurate results.
Talk to the Techotrix team to find out whether the SSA-AUTO-F is the right secure seal analyzer for your application.
| Measuring Range | 0–16.00 bar |
| Accuracy | ± 0.5% F.S. |
| Sample Size | Up to 350mm height, 120mm diameter |
| Pressure Stages | Up to 12, customisable |
| Memory | 30 product profiles, 10 operator profiles |
| Output | RS232 |
| Construction | Stainless steel, explosion resistant |
| Dimensions | 860(L) x 580(W) x 1060(H) mm |
| Net Weight | 100kg |
Optional accessories for the SSA-AUTO-F:
- QUALIPRESS Software: For advanced data analysis and management.
- Custom-Made Clamps: For specific container geometries.
- Integrated Inner Pressure Measuring Module.
- Multi-Position Model: For higher throughput.
- External Booster: For enhanced pressure testing capability.
Contact the Techotrix team to select the right SSA-AUTO-F configuration for your application.
