Seam Check-P

Portable Double Seam Projector & Cutting Saw

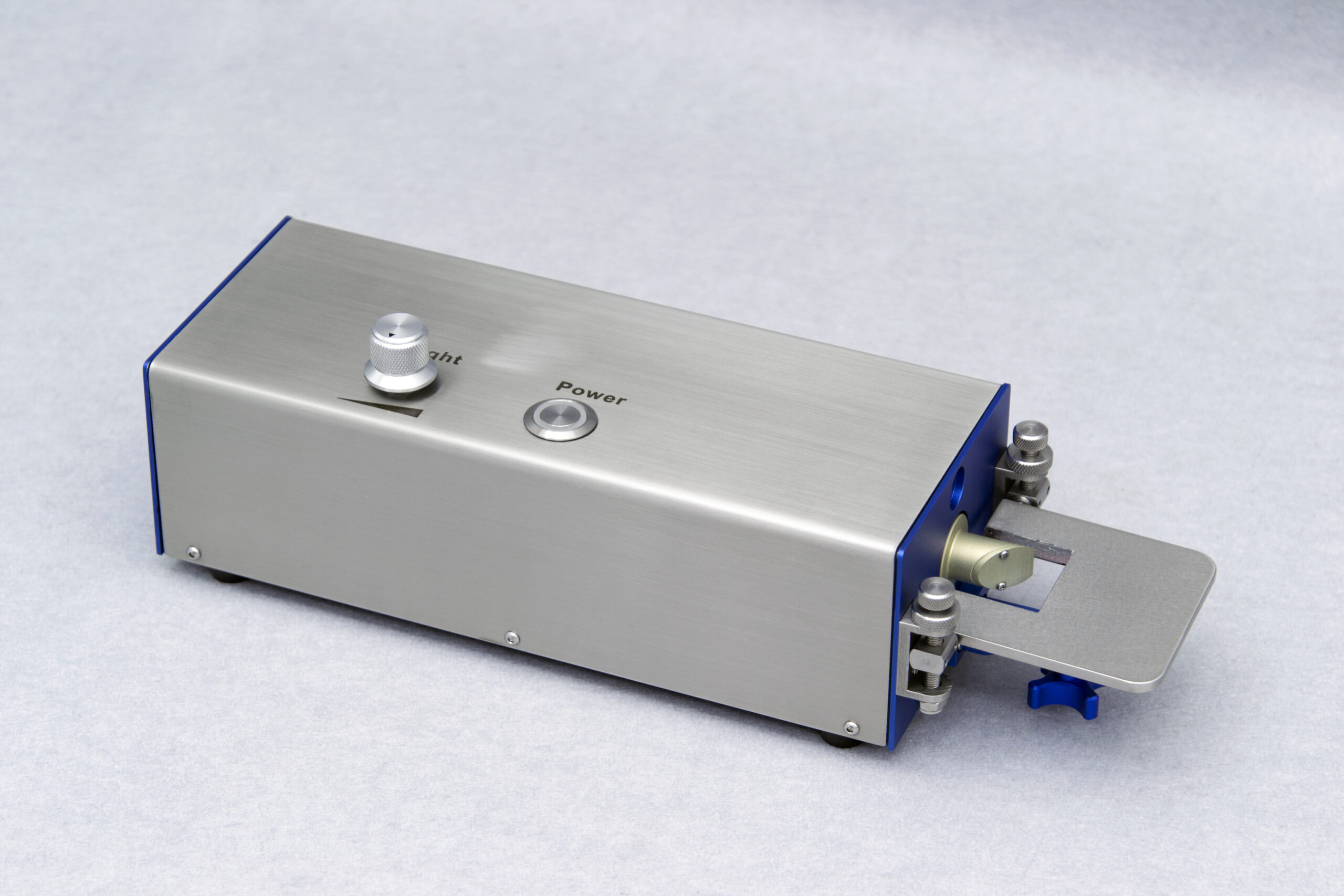

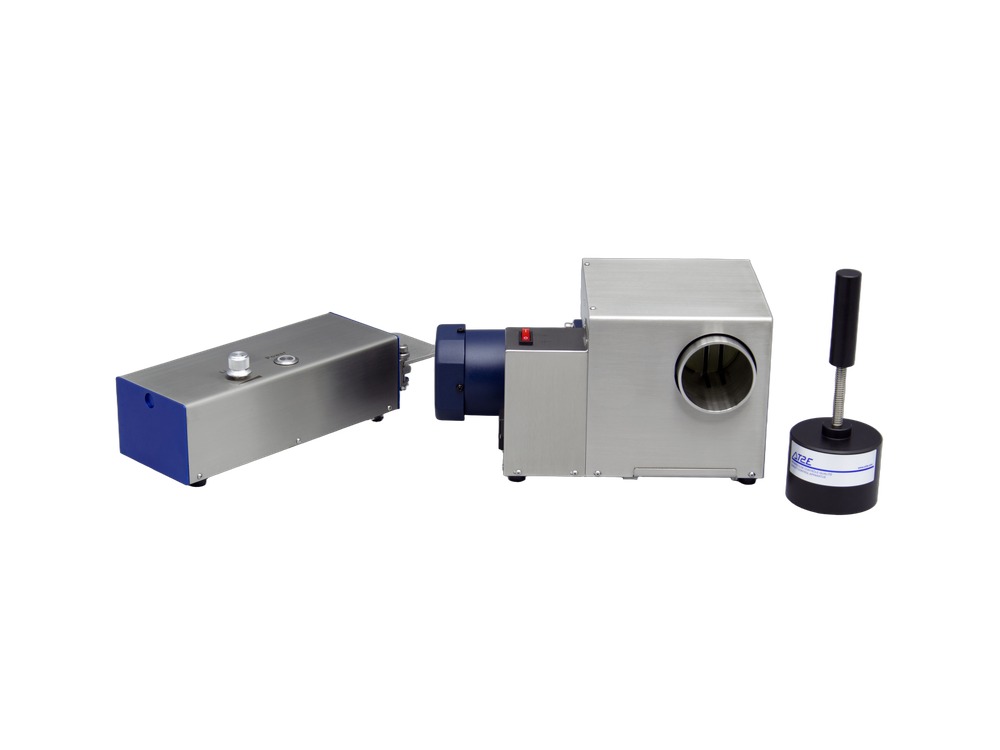

AT2E’s Seam Check-P portable double seam projector and cutting saw provide the most convenient way to accomplish seam checking and cutting. Its optimised design makes the seam projector and saw smaller in size and more flexible for space set-up. The latest UHD CCD camera provides higher seam image resolution and definition, with enhanced image contrast letting the seam projector obtain a better seam profile image.

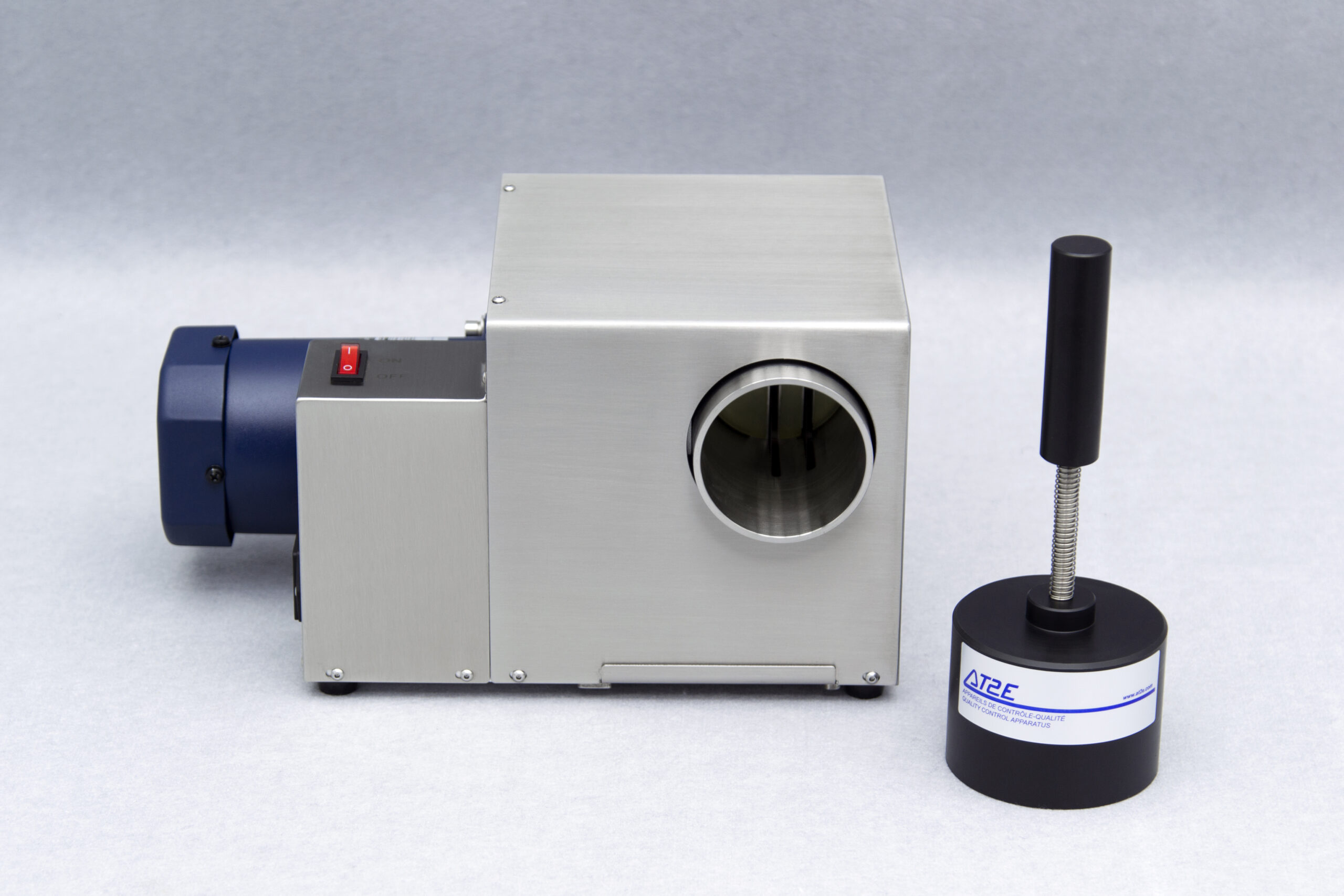

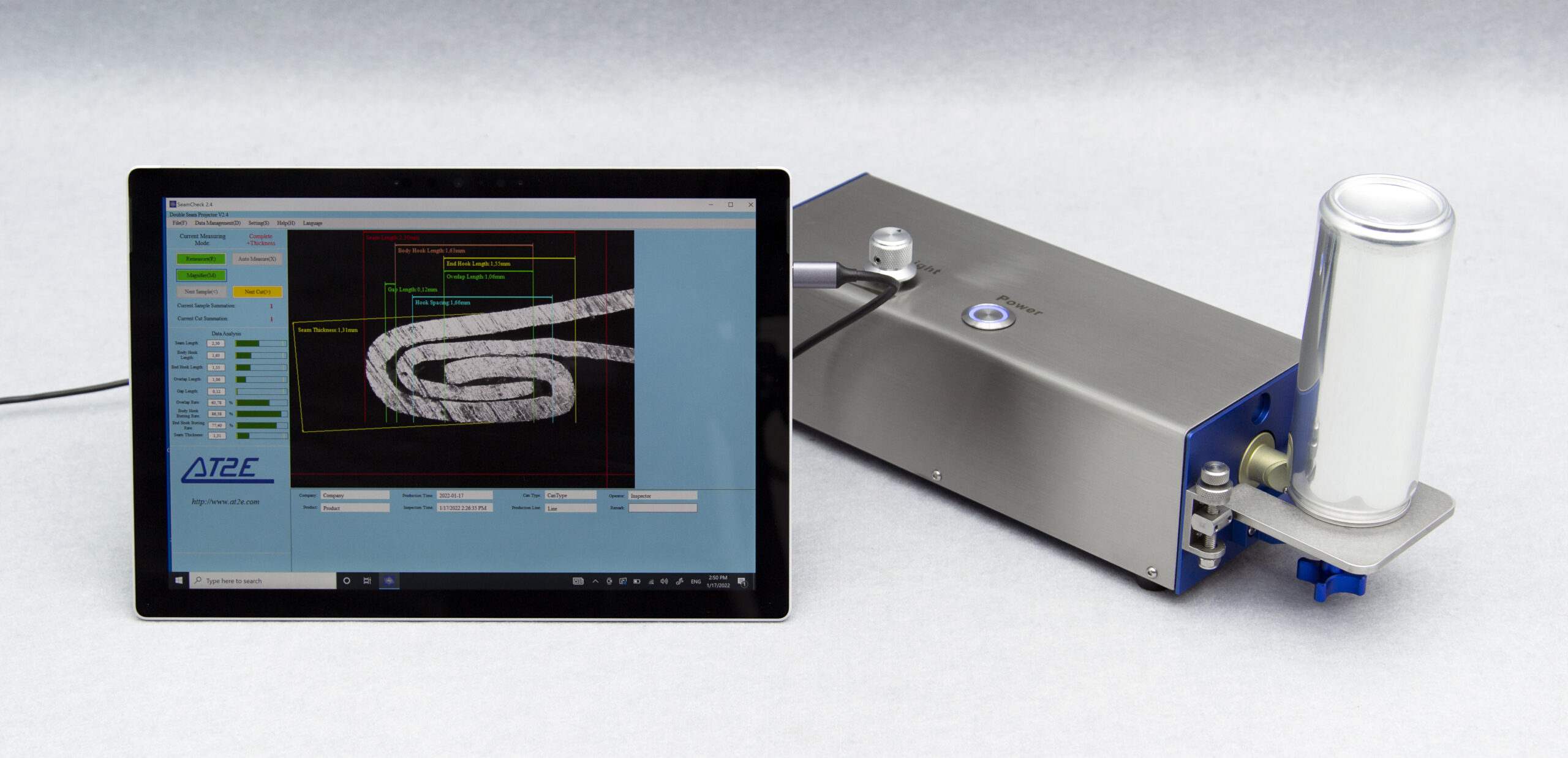

Using AT2E’s seam saw, a clear seam section image is obtained. Along with professional SeamCheck Plus software, a fast and accurate seam measurement can be performed.

Key Features

• Automatic line positioning (auto-measure function) — measurement completed in 1 second.
• Advanced video capture device, interference-free from external light sources, ensuring high image definition.
• Database management system — measurement results and images saved for review at any time.
• 9 measuring parameters: seam length, body hook length, end hook length, overlap, seam gap, overlap rate, body hook lapping rate, end hook lapping rate, on-screen seam thickness (extendable to 12 parameters with extra gauges).
• SPC compatible — use a data adapter to collect data from a Mitutoyo digital indicator.
• Data export as Excel files, with customisable report formats.
• Predefined qualification standards with automatic pass/fail judgement and warnings.
• Measurement results and label lines marked directly on the image.
• Graph chart statistics function to analyse and compare results.
• Magnifier option for more accurate line positioning.
• Adjustable platform and light, with calibration piece supplied.

Applications

Seaming quality is a critical parameter for can inspection. The Seam Check-P is ideal for beverage and food can manufacturers needing a portable, flexible seam analysis solution for the production floor or QA lab.

Talk to the Techotrix team to find out whether the Seam Check-P is the right seam inspection solution for your line.
