TL-7XX Series

TL-7XX Series

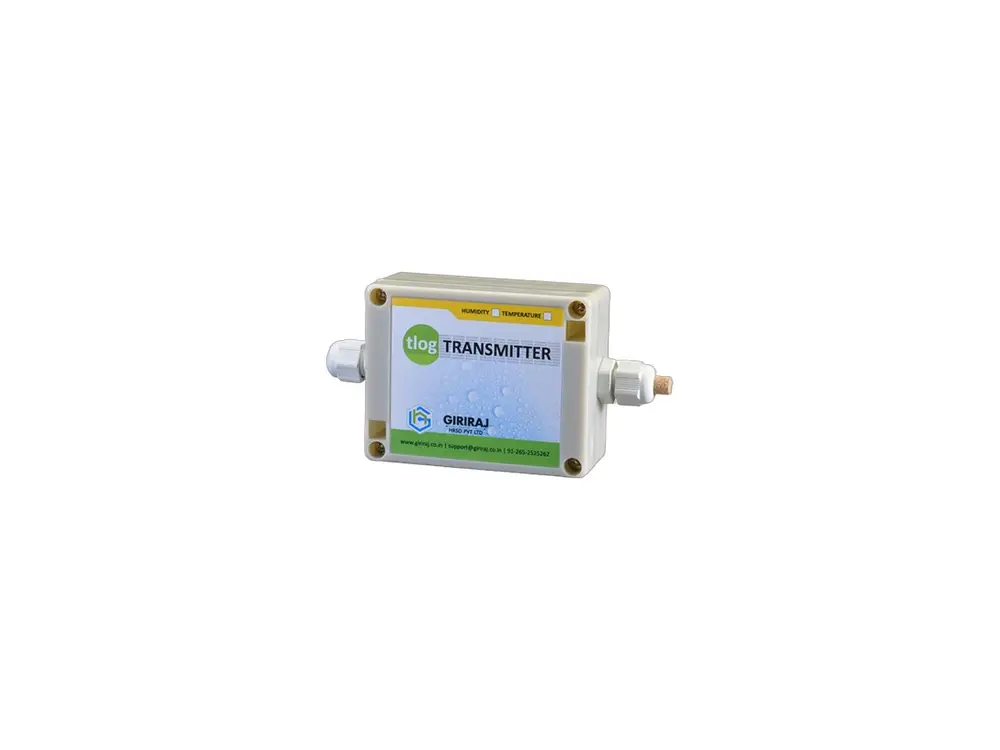

Wall/Duct Mounted Temperature & RH Transmitter

The TL-7XX Series is a compact, wall or duct mounted temperature and relative humidity transmitter with a washable mesh filter, IP54-rated robust enclosure and factory-calibrated -30 to +70°C / 0-100%RH accuracy. Available as temperature-only or temperature+RH, with or without LCD display.

Download Brochure
Inquire Now

Wall/Duct Mounted Temperature & RH Transmitter

The compact TL-7XX series is available with a removable mesh-type filter that protects sensors from dust or other solid objects that may come into contact with the sensors. This protective sensor cap can be removed for cleaning. The output signals are factory-calibrated and scaled to -30 to +70°C for temperature and 0 to 100%RH for relative humidity, ensuring high measuring accuracy.

Mounting screws are easily accessible inside the robust enclosure, which protects the electronics to IP54 rating.

Available Options

  • TL-701: Temperature Transmitter.
  • TL-702: Temperature + RH Transmitter.
  • TL-703: Temperature Transmitter with LCD Display.
  • TL-704: Temperature + RH Transmitter with LCD Display.

Key Features

  • Pre-set analog outputs (4-20mA).
  • Integral sensor, fast response time.
  • Excellent sensitivity.
  • Long-term stability.
  • Wall or duct mounting options.
  • Optional LCD display.
  • Dust-resistant, washable sensor filter.

Applications

Ideal for continuous, fixed-point wall or duct monitoring of temperature and humidity in HVAC, cold storage, warehousing and process environments.

Talk to the Techotrix team to select the right TL-7XX model for your fixed-installation monitoring needs.
