BT ETA Torque

Dynamometric Torque Bottle

The BT ETA Torque is a specialised tool used to measure the torque applied to bottle caps during the capping process, ensuring caps are tightened to the correct specifications and maintaining the quality and safety of bottled products on the production line.

Designed for precise torque measurement directly on the production line, immediately after the filling machine, this tool allows for testing capping heads under real-life conditions — speed and top load — without the need for dismantling, improving both efficiency and accuracy.

Key Features

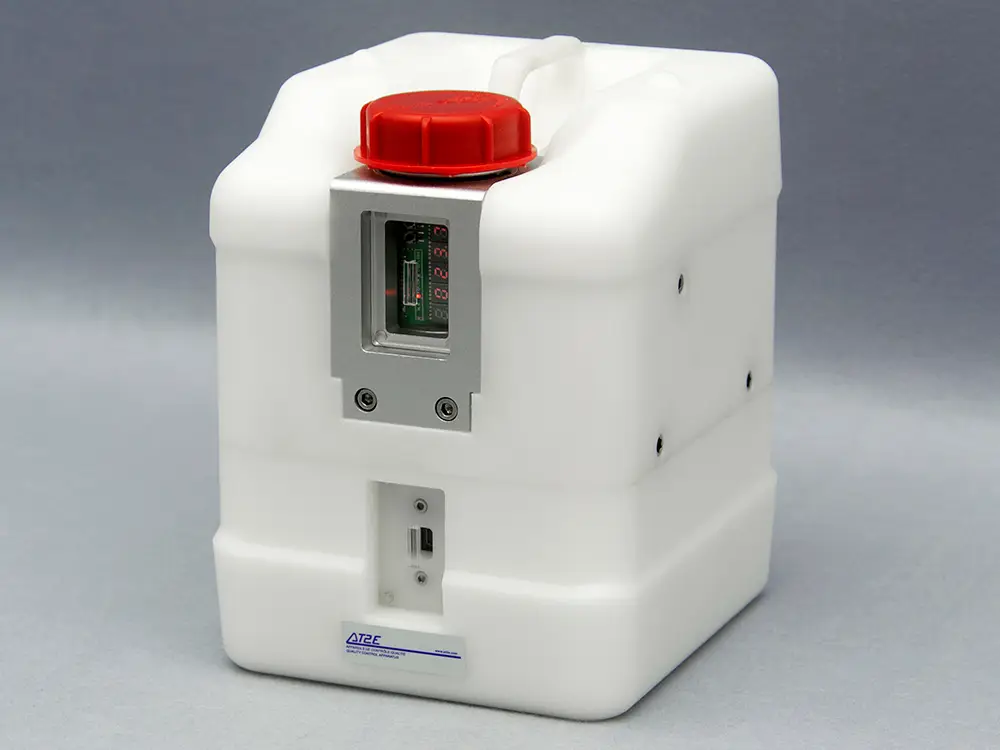

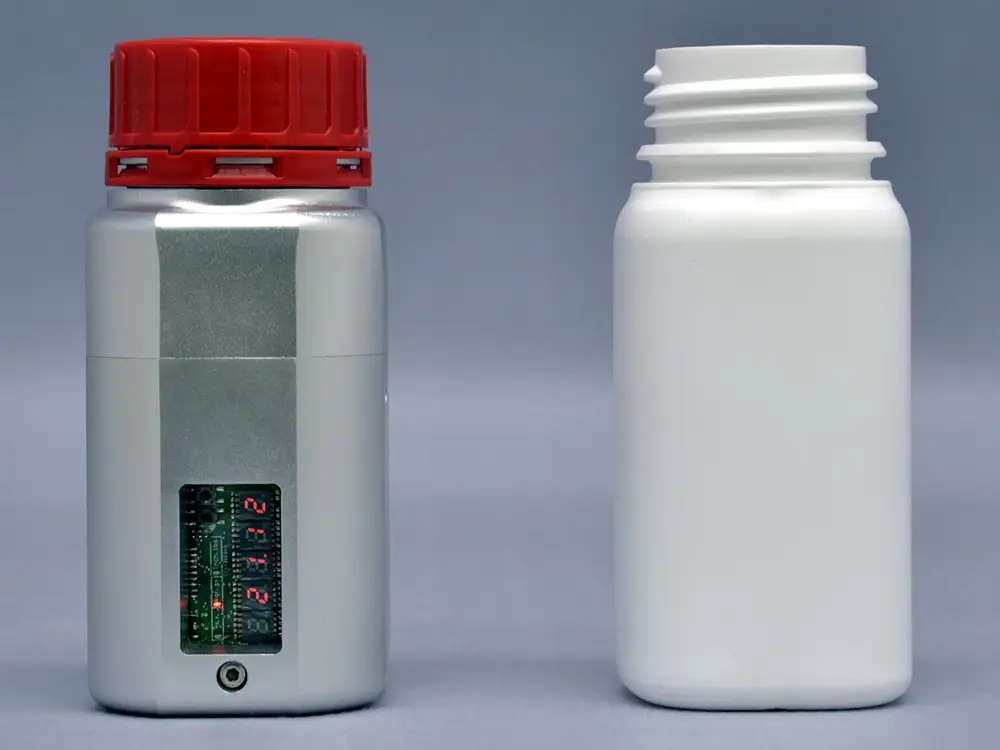

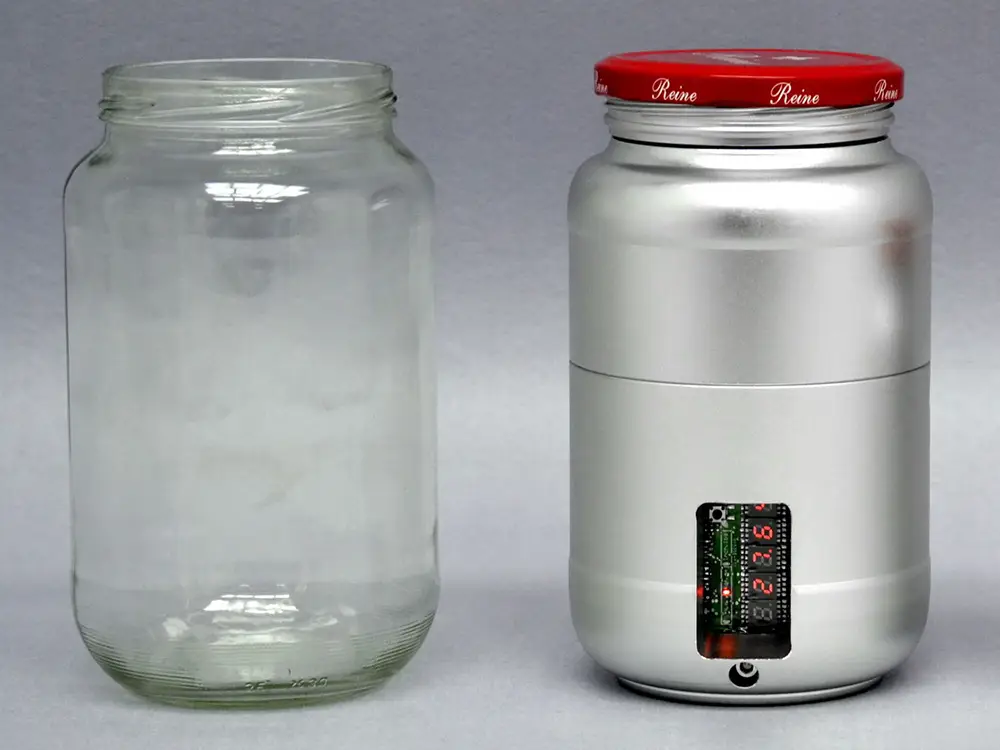

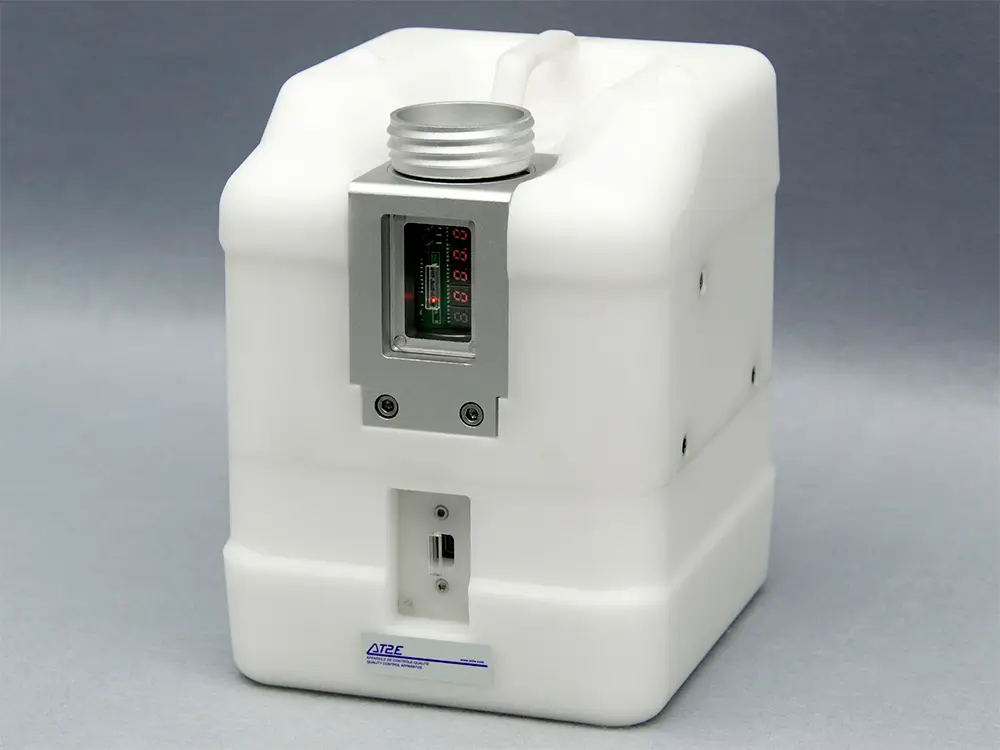

• Customisable dimensions to match specific bottle or can requirements — minimum diameter 35mm, minimum height 60mm.
• Lightweight, weighing 1–2kg.
• Built-in battery for 3 hours of operation.

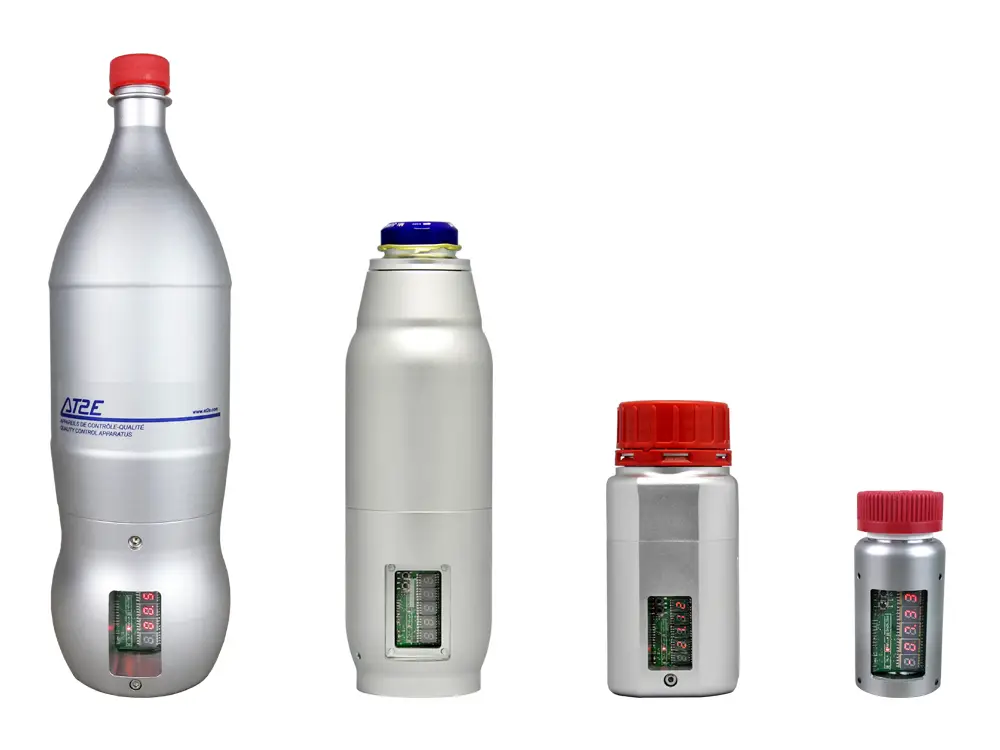

• Interchangeable formats for various bottle types.
• Data transfer from the bottle to software via USB.

Software

Combined with BT ETA Measure software, the BT ETA Torque provides a complete solution for saving, managing and analysing torque data — with advanced capabilities for data review, analysis and graph generation, plus export as data reports, graph reports, or Excel files.

Applications

Ideal for real-time in-line torque verification directly after the filling machine, letting quality teams monitor and optimise the capping process under true production-line conditions.

Talk to the Techotrix team to find out whether the BT ETA Torque is the right dynamometric bottle for your line.
